As a professional manufacturer of mining crushing equipment, we deeply understand the high demands of mining crushing operations on efficiency, cost control, and finished product particle shape. Cone crusher production lines, with their powerful crushing capacity, stable operating performance, and flexible process configuration, have become one of the core pieces of equipment in modern mining, aggregate, metallurgy, and building materials industries. This article will provide an in-depth analysis of the configuration, advantages, application cases, and selection recommendations of cone crusher production lines to help you gain a comprehensive understanding and make informed decisions.
I. What is a Cone Crusher Production Line?
A cone crusher production line is a crushing system with a cone crusher as its core equipment. It typically consists of a vibrating feeder, a jaw crusher (coarse crushing), a cone crusher (medium and fine crushing), a vibrating screen, a belt conveyor, and a dust removal system. Its process flow is generally as follows: raw ore is uniformly fed by a vibrating feeder → coarse crushing by a jaw crusher → medium and fine crushing by a cone crusher → classification by a vibrating screen → finished product is conveyed to the stockpile by a belt conveyor.
Cone Crusher Production Line
From the production line configuration diagram you provided, we can see:
• Vibrating Feeder: Evenly conveys raw ore, preventing blockages and overload.
• Jaw Crusher: Responsible for coarse crushing, breaking large pieces of ore into medium-sized particles.
• Single-Cylinder Hydraulic Cone Crusher and Multi-Cylinder Hydraulic Cone Crusher: Handle medium and fine crushing tasks respectively, achieving high efficiency, low energy consumption, and high particle shape control.
• Vibrating Screen: Multi-stage screening ensures the finished product particle size meets standards.
• Belt Conveyor: Connects all equipment, enabling continuous material transport.
This configuration can be flexibly adjusted according to raw material hardness, capacity requirements, and finished product particle shape, making it an ideal choice for modern mine crushing.

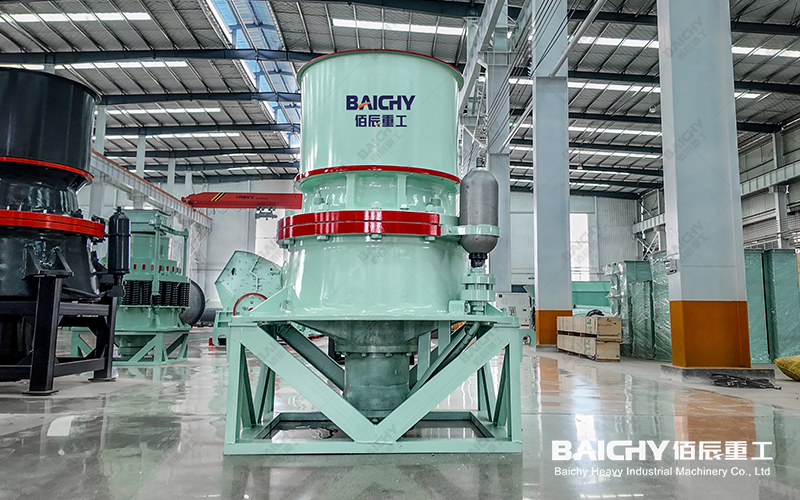

Single-cylinder hydraulic cone crusher

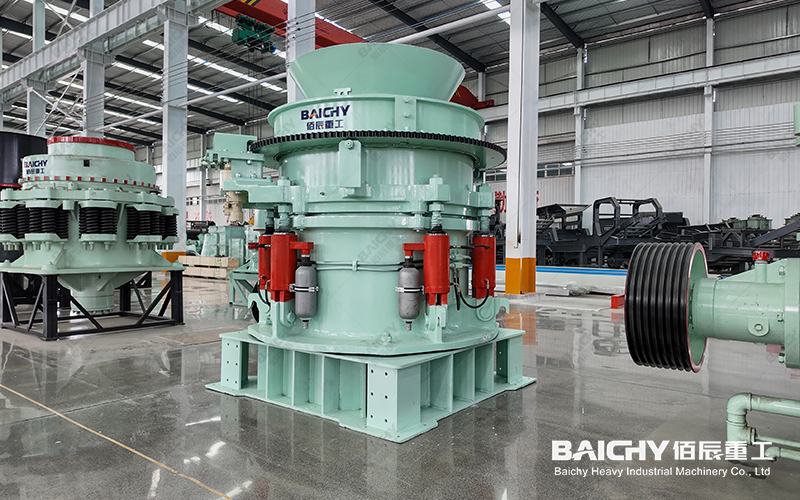

Multi-cylinder hydraulic cone crusher
II. Core Advantages of a Cone Crusher Production Line
1. High Efficiency and High Capacity: The cone crusher utilizes the principle of layered crushing, resulting in a large crushing ratio and high output, making it particularly suitable for the efficient crushing of medium-hard and hard rocks (such as granite, basalt, and iron ore).
2. Excellent Finished Particle Shape: By optimizing the crushing chamber shape and adjusting the discharge port, it can produce high-quality aggregates with a high proportion of cubic particles and low content of needle-like and flaky particles, meeting the requirements of high-standard projects.
3. High Degree of Automation: Equipped with hydraulic protection, automatic chamber clearing, and remote monitoring systems, it reduces manual intervention and improves operational safety and stability.
4. Energy Saving and Environmental Protection: Utilizing energy-saving motors, optimized transmission structures, and dust control systems, it reduces energy consumption and environmental pollution.
5. Modular Design and Convenient Maintenance: The equipment layout is reasonable, with ample maintenance space, allowing for quick replacement of wearing parts and reducing downtime.
III. Typical Application Case: Million-Ton/Year Sand and Gravel Aggregate Production Line
A large building materials company located in North China uses granite as its raw ore, with a designed production capacity of 1 million tons/year and a finished product particle size of 0-31.5mm, for use in commercial concrete and municipal engineering projects. We configured the following production line for them:
• Jaw Crusher PE1200×1500 (Coarse Crushing)
• Single-Cylinder Hydraulic Cone Crusher HCS660 (Medium Crushing)
• Multi-Cylinder Hydraulic Cone Crusher HPC220 (Fine Crushing)
• Three-Layer Vibrating Screen 3YK3073
• Multiple Belt Conveyors + Dust Removal System
After operation, the actual production capacity of this line reached 1.15 million tons/year. The finished stone has excellent particle shape, with a needle-like and flaky content of <5%. Energy consumption is reduced by approximately 15% compared to traditional production lines, resulting in extremely high customer satisfaction.
IV. Recommended Equipment and Services
We not only provide cone crusher production line equipment, but also offer the following services based on customer needs:
• Customized process design
• Complete line installation, commissioning, and training
• Lifetime technical consultation and spare parts supply
• Remote intelligent monitoring system (optional)
Recommended supporting equipment:
• Mobile crushing station (suitable for temporary construction sites or remote mining areas)
• Sand washing machine/dewatering screen (for water washing sand processes)
• Magnetic separator (prevents metal impurities from entering the crushing chamber)
V. Frequently Asked Questions (FAQ)
Q1: What are the main differences between a cone crusher and a jaw crusher?
A: Jaw crushers are suitable for coarse crushing and processing large materials; cone crushers are suitable for medium and fine crushing, excelling at processing medium-hard or harder rocks, and producing a better finished particle shape. They are often used together, forming the classic "jaw crusher + cone crusher" combination.
Q2: What are the different crushing chamber types for cone crushers? How to choose?
A: Common types include standard type, short-head type, and medium crushing type. Standard cone crushers have a small crushing ratio and high output, suitable for medium crushing; short-head cone crushers have a large crushing ratio and good particle shape, suitable for fine crushing. The choice should be based on a comprehensive consideration of raw material hardness, finished product particle size, and production capacity requirements.
Q3: Does a cone crusher require regular maintenance? How often?
A: Yes. It is recommended to check the lubricating oil, seals, and liner wear monthly; and conduct a comprehensive overhaul every 3-6 months. Timely replacement of wear parts (such as moving cone, fixed cone liners) can extend equipment life and improve production efficiency.
Cone crusher production lines are the "main force" in modern mining crushing. Their high efficiency, stability, and intelligent characteristics make them an indispensable equipment combination in industries such as sand and gravel aggregates, metallurgy, and building materials. As a manufacturer of mining crushing equipment, we have rich engineering experience and comprehensive after-sales service, and are willing to provide you with a one-stop solution from design to delivery.
