Tracked Jaw Crusher
In modern mining, construction waste treatment, and various aggregate production, efficient and flexible crushing solutions are key to improving project benefits. Tracked jaw crushers, as mobile crushing plants integrating feeding, crushing, and conveying, have become core equipment in many fields due to their superior hard rock crushing capabilities and excellent site adaptability. This article will delve into the types of materials suitable for tracked jaw crushers and comprehensively showcase their core advantages and application value.
What is a Tracked Jaw Crusher?
A tracked jaw crusher essentially integrates a traditional stationary jaw crusher, feeder, vibrating screen, etc., onto a self-propelled, mobile tracked chassis. It retains the classic principle of jaw crushers—crushing materials through the squeezing motion between the moving and stationary jaws—while giving the equipment extremely high mobility, allowing it to be directly deployed to the material site, achieving "crushing on the go," and significantly reducing material transportation costs.
Its core workflow is as follows: An excavator or loader feeds raw materials into the crusher's feed hopper. The material enters the jaw crushing chamber under the uniform conveying of a vibrating feeder. After powerful compression and crushing, the finished product meeting the particle size requirements is output by the main belt conveyor and can be directly stockpiled or fed into the next stage of crushing equipment.

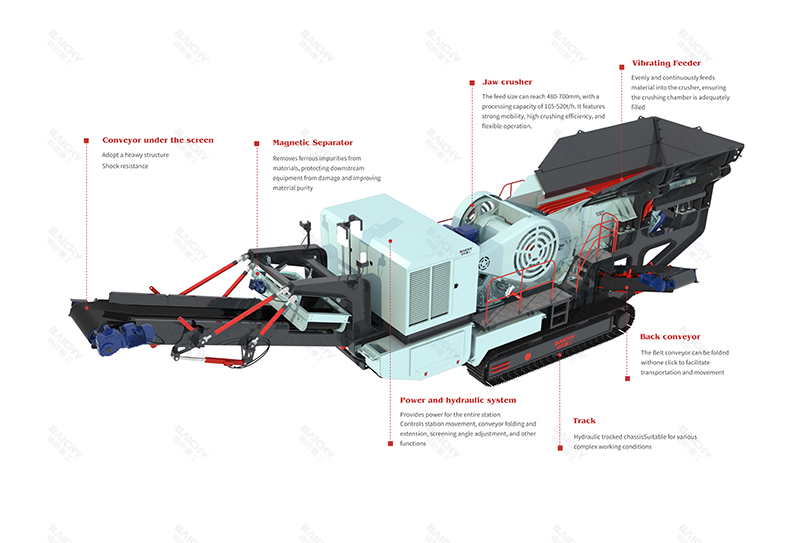

Crawler Jaw Crusher
Applicable Material Types In-Depth Analysis
Tracked jaw crushers, due to their robust structure and powerful crushing force, are particularly adept at handling medium to high hardness and highly abrasive materials. Their applicability mainly depends on the compressive strength and characteristics of the material.
Main Applicable Material Categories
1. High-Hardness Natural Rock
This is the most classic application area for tracked jaw crushers. Its powerful jaw plates can effectively compress and crush various hard ores and rocks.
• Granite: Hard in texture and with good wear resistance, it is a high-quality building aggregate.
• Basalt: High hardness and brittleness, with excellent particle shape after crushing, often used for high-grade highway surface materials.
• Quartzite: Extremely hard and highly abrasive, requiring equipment with stringent wear resistance; high-performance jaw crushers can handle this.
• River pebbles/cobblestones: Naturally formed hard stone, a high-quality raw material for producing manufactured sand.
2. Construction and Demolition Waste
In urban renewal and building renovation, the mobility advantage of tracked jaw crushers is fully utilized.
• Concrete blocks: Easily crushes large quantities of reinforced concrete blocks generated from the demolition of buildings, bridges, and roads, achieving resource utilization.
• Asphalt pavement: Can be used for the initial crushing of waste asphalt during old road renovation.
• Brick and tile fragments: Processes waste bricks and tiles from construction waste, converting them into recycled aggregate.
3. Various Metallic and Non-metallic Ores
In mining, it is often used for the primary crushing (coarse crushing) of raw ore, preparing materials for subsequent medium and fine crushing processes.
• Metallic ores such as iron ore, copper ore, and gold ore.
• Limestone: Although of medium hardness, it requires high production output. A mobile jaw crusher can operate directly in the stope, improving efficiency.
• Dolomite, sandstone, etc.
Material Suitability Quick Reference Table
The table below summarizes the suitability of tracked jaw crushers for materials with different properties:
| Material Type | Specific Example | Compressive Strength Range (MPa) | Abrasiveness | Suitability Evaluation | Precautions |
| Extremely High Hardness Rock | Granite, Basalt, Quartzite | 150 - 350 | High - Extremely High | ★★★★★ | Very Suitable Requires high-strength jaw plates; pay attention to wear-resistant component costs. |
| Medium-High Hardness Rock | Limestone, Sandstone, Dolomite | 80 - 150 | Medium | ★★★★★ | Very Suitable Achieves optimal efficiency and high production returns. |
| Construction Waste | Concrete, Recycled Bricks | 20 - 100 | Uneven | ★★★★☆ | Very Suitable Requires pre-removal of reinforcing bars and other foreign objects to protect the conveyor belt and downstream equipment. |
| Low Hardness Materials | Coal Gangue, Shale | < 80 | Low - Medium | ★★★☆☆ | Suitable While not ideally suited for applications where it can best utilize its strengths, it can still perform the tasks. |
Note: Although tracked jaw crushers are powerful, they are not suitable for materials with high viscosity, high moisture content, such as soil, clay, or plastic materials, as these materials can easily cause blockage in the crushing chamber. Similarly, for extremely hard rocks with a uniaxial compressive strength exceeding 350 MPa, a detailed equipment selection evaluation is required.

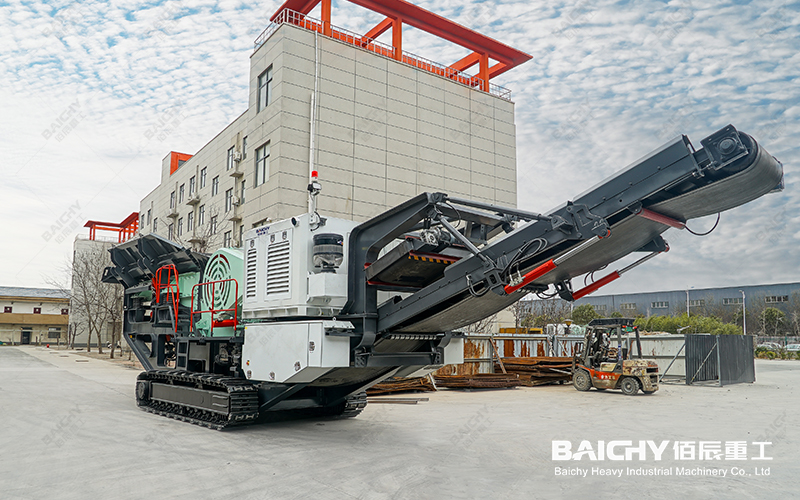

Crawler Jaw Crusher
Core Advantages of Choosing a Tracked Jaw Crusher
Why is a tracked jaw crusher the preferred choice for the above materials? Its advantages far exceed those of a stationary crusher.
1. Unparalleled Site Adaptability: The tracked walking mechanism allows it to traverse rugged terrain, directly accessing quarries and construction waste dumps, achieving "material-to-equipment" and completely eliminating the enormous costs and time associated with trucking raw materials.
2. Rapid Deployment and Relocation: Once the equipment arrives on site, it requires almost no concrete foundation; simple leveling is all that's needed before production begins. After the project is completed, it can be quickly and autonomously relocated to the next construction site, resulting in extremely high equipment utilization.
3. Powerful Hard Rock Crushing Capability: The core jaw crusher boasts a simple structure, easy maintenance, and optimized moving jaw trajectory, providing immense crushing force and ensuring reliable crushing of high-hardness materials.
4. Integrated Intelligent Control: The modern tracked jaw crusher integrates feeding, crushing, screening, conveying, and movement functions into one unit, centrally controlled by an intelligent control system. One person can monitor the main production processes, saving manpower.
5. Environmental Protection and Noise Reduction: The mobile unit can be equipped with a dust suppression spray system and soundproof enclosures. Compared to multiple scattered pieces of equipment in a fixed production line, it is easier to centralize environmental protection measures, meeting green construction requirements.
Practical Application Case Scenarios
• Case 1: Mountainous Granite Quarry
◦ Challenges: The quarry faces are scattered, roads are narrow, and setting up a fixed production line is costly and time-consuming.
◦ Solution: Utilizing a high-capacity tracked jaw crusher, which moves with the advancing mining face, directly crushing the mined granite rough. The crushed stone is then loaded onto trucks via a mobile conveyor belt.
• Results: Eliminating the raw material transportation环节 (link/step) increased production efficiency by over 30% and significantly reduced overall costs.
• Case Study 2: Urban Construction Waste Resource Utilization Project
• Challenges: The demolition site was located in an urban area with limited space, strict environmental requirements, and on-site material processing was necessary.
• Solution: A tracked jaw crusher equipped with a magnetic separator and a light material separator was used to crush and sort concrete blocks and bricks on-site.
• Results: Construction waste was "digested on-site, turning waste into treasure." The produced recycled aggregate was directly used for site backfilling or road subbase, aligning with the circular economy concept.
Equipment Selection and Related Recommendations
When selecting a tracked jaw crusher, the following points should be considered:
• Maximum Feed Size: Must match the maximum size of your raw materials.
• Processing Capacity (tons/hour): Select according to your production needs.
• Main Unit Power: Determines the upper limit of crushing force and is directly related to the ability to process hard materials.
• Hydraulic Adjustable Discharge Opening: This function allows for quick adjustment of the discharge particle size to adapt to different product requirements; standard configuration is recommended.
• Environmental Protection Configuration: Dust removal and noise reduction devices can be selected according to the requirements of the operating area.
We recommend considering our "Rock" series tracked jaw crusher. This series is specially designed for the characteristics of mining materials in China, equipped with a high-performance jaw crusher main unit, heavy-duty tracked chassis, and intelligent electronic control system. It is an ideal choice for processing highly abrasive materials such as granite and basalt.
Frequently Asked Questions (FAQ)
Q1: Can a tracked jaw crusher crush reinforced concrete?
A1: Yes. Its powerful jaws can easily crush concrete blocks. The key is to equip it with a heavy-duty feeder and a powerful magnetic separator (such as a suspended magnet or belt magnetic roller) to effectively separate and remove the reinforcing steel from the concrete, preventing it from damaging the crusher and downstream conveying equipment.
Q2: Compared to a cone crusher, what are the differences in the materials that a tracked jaw crusher is suitable for crushing?
A2: Both are powerful tools for crushing hard rock, but they have different focuses. Tracked jaw crushers are mainly used for primary crushing (coarse crushing), suitable for processing large pieces of primary rock and construction waste, producing relatively coarse particles with angular shapes. Cone crushers are more commonly used for secondary crushing (medium and fine crushing), aiming for finer finished products and better particle shapes. For highly abrasive materials (such as basalt), a mobile combined production line of "jaw crusher + cone crusher" is often used.
Q3: Can the equipment be used normally in rainy seasons or cold regions?
A3: Yes. Modern high-quality tracked jaw crushers are designed with various harsh working conditions in mind. Key components are dustproof and waterproof, and the electrical system has a protection rating. In extremely cold regions, optional engine preheating devices, antifreeze, and fuel heating systems are available. Users only need to perform the corresponding winter maintenance according to the operation manual.
