Vibrating Screen
In the demanding world of mineral processing and aggregate production, efficiency and reliability are paramount. At the heart of any crushing and screening plant lies a critical piece of equipment: the vibrating screen machine. This powerhouse is responsible for separating crushed material into various sizes, ensuring product quality, and optimizing overall plant performance. As a leading manufacturer of mining crushing equipment, we understand that choosing the right vibrating screen is not just a purchase—it’s an investment in your operation's productivity.
What is a Vibrating Screen Machine?
A vibrating screen machine, also known as a screening machine or separator, is a device used to separate mixed materials of different particle sizes into two or more graded fractions. It achieves this through a vibrating motion that causes the particles to stratify and pass through screen meshes of specific apertures.

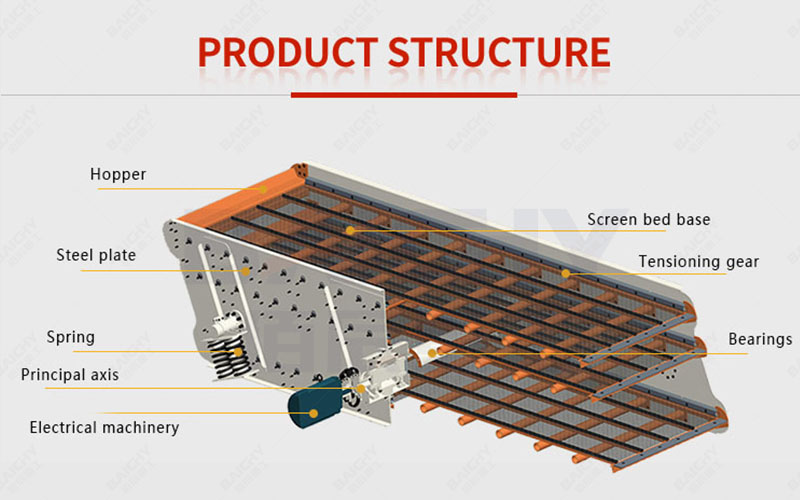

Core Components:
-
Screen Deck: The surface containing the mesh panels where separation occurs. It can be single or multi-deck for grading into multiple fractions.
-
Vibrating Mechanism/Exciter: The motor or system that generates the vibratory motion. Common types include eccentric shaft mechanisms and high-frequency vibrating motors.
-
Screen Box: The robust frame that holds the deck and the mechanism, designed to withstand continuous vibratory forces.
-
Springs/Dampers: Isolate the vibratory motion from the supporting structure, reducing vibration transmission to the plant floor.
Key Advantages of Modern Vibrating Screens
Modern vibrating screen machines offer significant benefits that directly impact your bottom line:
-
High Efficiency & Capacity: Engineered for rapid material stratification and throughput, maximizing tons per hour and reducing bottlenecks in your crushing and screening circuit.
-
Precise Sizing & Consistency: Produces tightly graded end products crucial for meeting stringent specifications in applications like concrete aggregate or railway ballast.
-
Robust Construction & Durability: Built with high-grade steel and wear-resistant components (like polyurethane screen panels) to withstand abrasive materials and harsh mining environments, minimizing downtime.
-
Low Maintenance Design: Features like centralized grease lubrication, easily accessible vibrators, and modular screen decks simplify routine maintenance and part replacement.
-
Versatility: From scalping oversized material before a primary crusher to fine screening of finished products, different screen types (linear, circular, banana) suit various stages of the process.
Application Case Study: Boosting Output in a Granite Quarry
Challenge: A granite quarry was experiencing low screening efficiency in its final product section, leading to undersized material contaminating the premium product pile and causing significant product giveaway.
Our Solution: We recommended replacing an older screen with a new, high-capacity linear vibrating screen featuring a triple-deck configuration and polyurethane screen panels for longer life in the abrasive granite environment.
Results:
-
Screening Efficiency Improved: Increased from ~85% to over 94%.
-
Product Quality: Premium product met specification 99.5% of the time, increasing its market value.
-
Durability: Polyurethane panels lasted 3x longer than the previous wire mesh, reducing change-out downtime and costs.
Choosing the Right Screen for Your Plant
Selecting the optimal vibrating screen machine depends on your specific material and process needs. Here’s a quick guide:
-
Heavy-Duty Scalping: For removing fines before primary crushing, a grizzly feeder or a robust inclined vibrating screen is ideal.
-
Primary & Secondary Sizing: For high-volume sizing after jaw or cone crushers, inclined circular-motion screens are the industry workhorse.
-
Fine & Dry Screening: For precise separation of dry, small particles, a high-frequency linear vibrating screen is often the best choice.
-
Sticky or Difficult Materials: For damp, clay-rich, or sticky ores, a screen with a bouncing ball or ring cleaning system is recommended to prevent blinding.
Pro Tip: Always consult with your mining crushing equipment manufacturer. We can analyze your material characteristics (size, moisture, abrasiveness) and process flow to specify the perfect screen model, deck configuration, and mesh type.
Frequently Asked Questions (FAQ)
Q1: How often should I perform maintenance on my vibrating screen?
A: Daily visual checks for screen panel damage or tension are crucial. Lubrication of bearings should follow the manufacturer's schedule, typically every 500-1000 hours. A more thorough inspection of springs, exciters, and the screen box structure should be conducted quarterly.
Q2: What are the main reasons for premature screen panel (mesh) failure?
A: The primary causes are improper tension (too loose or too tight), material abrasion, corrosion, and the impact of oversized lumps. Using the right panel material (rubber, polyurethane, or woven wire) for your specific application is key to maximizing service life.
Q3: Can a vibrating screen handle wet or sticky material?
A: Yes, but it requires the right design. Screens with a high G-force, spray bars for water-assisted screening, or specialized anti-blinding systems (like tennis ball rings) are designed to handle damp, sticky, and clay-bound materials effectively.
A vibrating screen machine is far more than a simple sieve; it is a precision-engineered component vital for profitability in mining and aggregate production. Investing in a well-designed, durable screen from a reputable manufacturer ensures consistent product quality, high plant availability, and a strong return on investment. By understanding its functions, benefits, and proper selection criteria, you can unlock new levels of efficiency in your operation.
