The core pain points in silicon sand processing lie in the "incomplete removal of impurities" and the "excessive wear of consumable parts." Traditional production line configurations often suffer from improper crushing ratios or insufficient washing intensity, resulting in finished sand with excessive iron content or uneven gradation—factors that directly impact the purchase prices offered by the glass and electronics industries. More critically, given that silica possesses a Mohs hardness of 7, improper equipment selection can shorten the service life of wear-resistant components by over 40%, trapping a project in a vicious cycle where "no downtime means no output, yet every moment of operation incurs repair costs."
Baichy Heavy Industry’s silicon sand production line strikes a perfect balance between high purity and low energy consumption through a combination of "multi-stage crushing + precision shaping + magnetic separation for impurity removal." Our solution focuses not merely on particle size, but—more importantly—on enhancing the industrial added value of the silicon sand.
1. Translating Benefits: A Direct Comparison of Technical Parameters vs. Financial Returns
Baichy Heavy Industry translates technical specifications into tangible profits for you. The table below illustrates the key benefits derived from our optimized configuration:
| Technical Indicator | Customer Benefit Conversion | Economic Impact Assessment |
| VSI Deep-Cavity Rotor Design | Throughput increased by over 30% | Output per shift increases by approx. 150 tons at equivalent power consumption |
| Laminated Crushing Principle (Cone Crusher) | Flakiness/elongation content controlled within 5% | Unit price of finished sand can increase by 15–20 RMB/ton |
| Alloy Composite Wear Parts | Replacement cycle for wear parts extended by 3–5 times | Average annual maintenance costs reduced by over 25% |
| Closed-Circuit Classification System | Particle size adjustment precision reaches 0.1 mm | Meets the high-standard sand requirements of industries such as photovoltaic glass manufacturing |
2. The Complete Process Flow: Three-Stage Crushing and Dual-Stage Impurity Removal
A well-designed crushing process serves as the first line of defense for protecting equipment and minimizing costs. Since silica is an extremely hard material, Baichy Heavy Industry strictly adheres to the principle of "more crushing, less grinding":
Coarse Crushing Stage (Jaw Crusher)

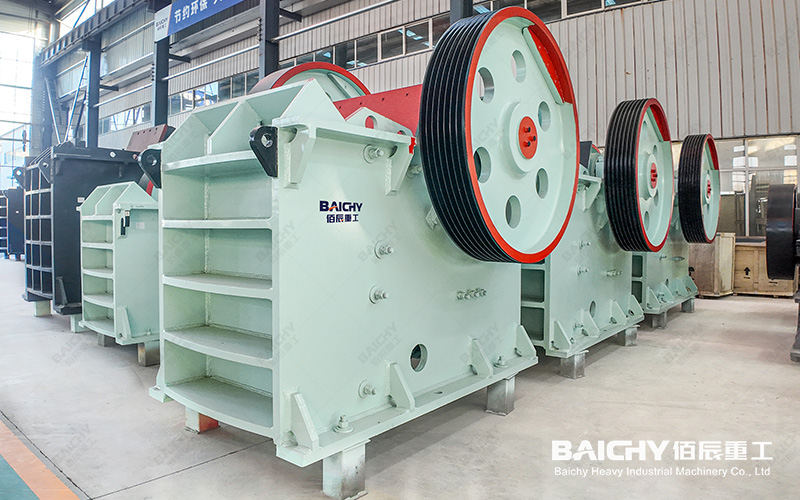

Primary Jaw Crusher
1. : Rapidly reduces the volume of large raw ore lumps, thereby lightening the load on subsequent processing stages. Intermediate & Fine Crushing Stage (Hydraulic Cone Crusher)
2. : Utilizes the principle of laminated crushing to protect the liners; compared to impact crushers, this reduces operating costs by 35% when processing silica.
Shaping & Sand Making (VSI Sand Maker)
VSI Sand Maker
3. : This is the critical stage that determines the quality of the finished product. The "stone-on-stone" crushing principle ensures the silica sand grains are well-rounded, making them easier to process during subsequent chemical treatment or magnetic separation.
Refining & Washing (Sand Washer + Magnetic Separator)

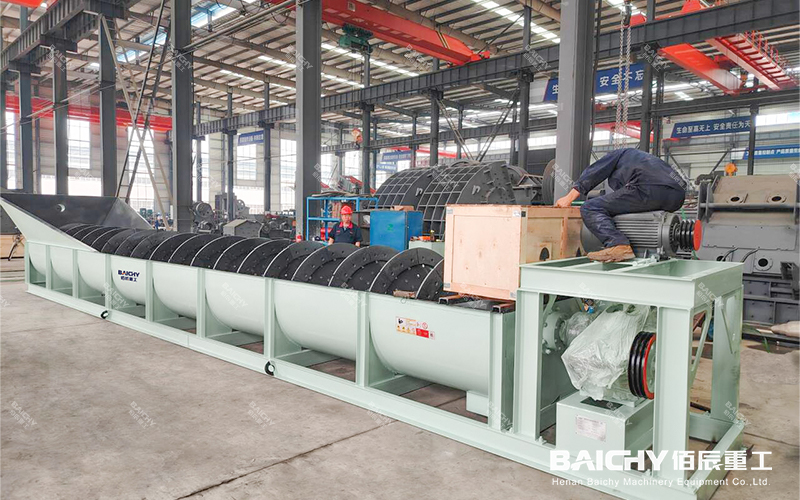

Spiral Sand Washer
4. : Removes overburden and iron-bearing impurities, ensuring the whiteness and purity of the silica sand.
3. Field Performance: Verified by 150+ Mines Worldwide
Real-world data proves that a stable operating system is the best defense against market fluctuations. Among the projects we have delivered, a silica processor in Central Asia reported that after replacing their original impact crushing process with Baichy's Cone Crusher + VSI Shaping process, the yield of qualified sand in the 0.15–0.6 mm size range increased by 18%, and energy consumption per ton of production decreased by 0.8 kWh.
Frequently Asked Questions (FAQ)
Q1: In a silica sand production line, why shouldn't impact crushers be used to process silica?
A1: Silica has an extremely high Mohs hardness. Since impact crushers rely on impact force for crushing, their blow bars would wear out very rapidly. Baichy Heavy Industry recommends using cone crushers, which utilize the principle of laminated crushing. Although the initial investment is slightly higher, the maintenance cost per ton is only one-third that of an impact crusher.
Q2: How can we ensure that the iron content (Fe2O3) of the silica sand meets the requirements for photovoltaic glass?
A2: In addition to avoiding over-crushing during the crushing stage, Baichy production lines incorporate high-intensity magnetic separators. After the sand-making process, the magnetic separation system effectively removes trace iron particles introduced during crushing, as well as magnetic impurities present in the raw ore.
Q3: How do I choose between the "stone-on-stone" and "stone-on-iron" modes on a VSI sand maker?
A3: When processing hard materials such as silica sand, Baichy recommends prioritizing the "stone-on-stone" crushing mode. In this mode, the material undergoes self-collision within the vortex crushing chamber, significantly reducing reliance on metal wear parts while simultaneously producing a superior final product shape.
Q4: How much does it cost to construct a silica sand production line with a capacity of 100 tons per hour?
A4: The cost is heavily influenced by the specific configuration (e.g., whether washing and beneficiation are required, or if a mobile setup is needed). Baichy offers customized solutions ranging in price from 500,000 to 3 million. We will calculate the most precise return-on-investment timeline based on your raw ore analysis report and your specific output requirements.
Q5: How is the dust generated during silica processing managed?
A5: The system comes standard with a pulse dust collector, and water spray systems are installed at key material transfer points to suppress dust, thereby ensuring that the operation site complies with ISO 14001 environmental standards.
