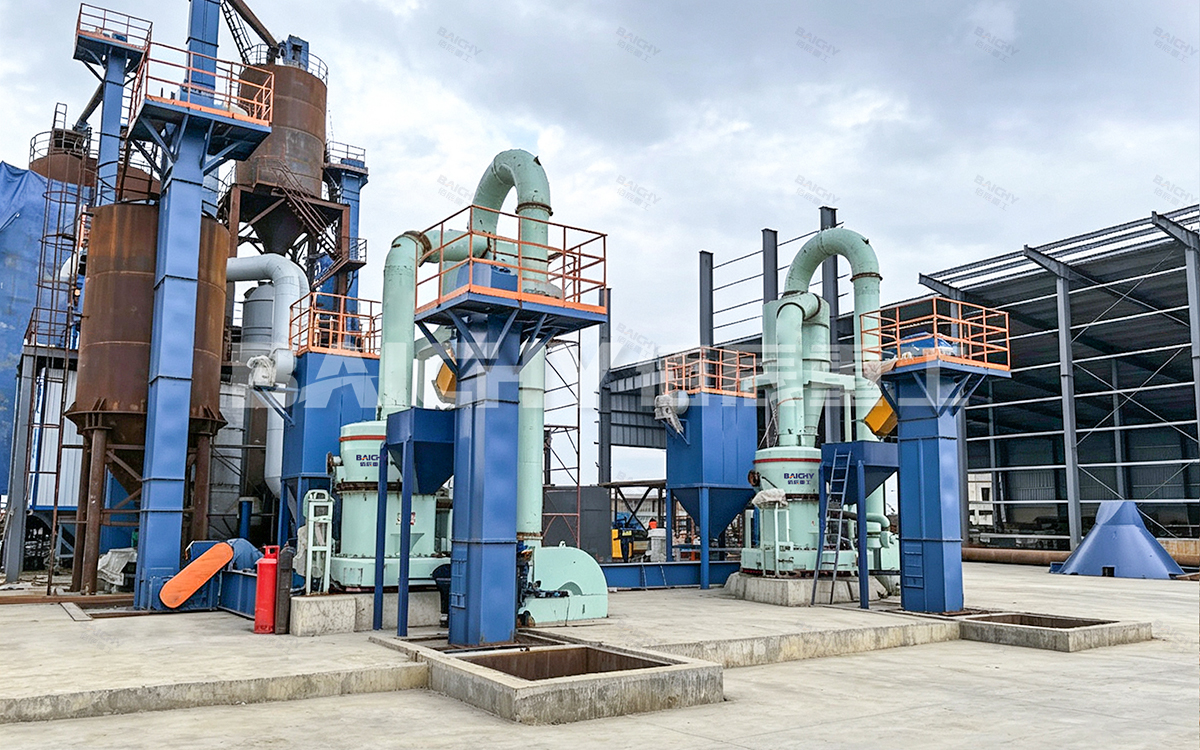

Limestone Grinding Mill
Limestone is one of the most processed industrial minerals in the world, and almost every value-added use of it — power-plant desulfurization, GCC filler for plastics and paints, dry-mix mortar, agricultural lime — starts inside a limestone grinding mill. Choosing the wrong limestone grinding mill silently erodes your margin: too coarse and your powder fails the customer's spec, too fine and you pay for kWh you never recover in price.
This guide from Baichy Heavy Industry explains how a limestone grinding mill works, which mill type fits which mesh range, what the real technical parameters look like, and how to size a complete limestone powder grinding plant. Drawing on 20+ years of grinding engineering and equipment delivered to 150+ countries, we wrote it for plant owners, EPC contractors and procurement teams who need to make a decision, not read a brochure.
What Is a Limestone Grinding Mill?
A limestone grinding mill is a milling machine that reduces crushed limestone (typically 0–40 mm) into controlled fine powder, usually between 80 mesh (0.175 mm) and 2500 mesh (5 μm). Unlike a crusher, which only liberates particle size, a grinding mill integrates grinding, classification, drying (on some models), powder collection and dust control into one closed-circuit system.
Limestone is ideal for roller-based grinding: Mohs hardness of only 3, brittle fracture behaviour, and a Bond work index typically between 6 and 12 kWh/t. That is why pendulum roller mills, trapezium mills and vertical roller mills all outperform ball mills on limestone in the 80–600 mesh range.

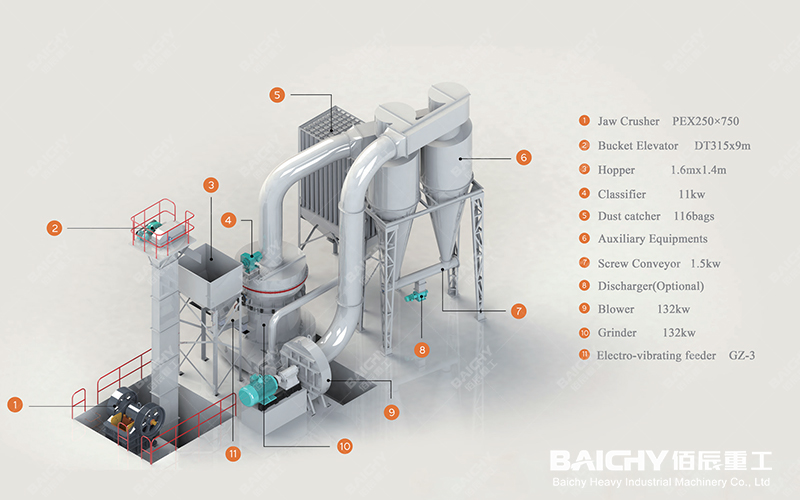

Process Flow of Limestone Powder Grinding Production Line
How a Limestone Grinding Mill Works
Every limestone powder grinding mill — and every Raymond-type limestone grinding mill in particular — follows the same five-stage loop:
• Primary crushing — Run-of-quarry limestone (300–600 mm) is reduced by a jaw crusher or hammer crusher to ≤20–40 mm, the maximum feed size the mill accepts.
• Uniform feeding — A bucket elevator lifts the crushed stone to a storage hopper; an electromagnetic vibrating feeder feeds the grinding chamber at a controlled, continuous rate. Stable feeding is the single biggest factor in stable fineness on any limestone grinding mill.
• Grinding — Material is compressed and sheared between grinding rollers and a grinding ring (Raymond/MTW/HGM design) or between rollers and a rotating grinding table (vertical roller mill design).
• Classification — A turbine or cage classifier spinning above the grinding zone separates qualified powder from oversize. Coarse particles fall back and are reground; only finished powder leaves the chamber.
• Collection and packing — Airflow carries the qualified powder into a cyclone collector and then a pulse-jet bag filter. The system runs under negative pressure, so dust emission typically stays below 10–30 mg/m³, well inside EU and EPA practice.
Because the whole circuit is closed and air is recirculated, a modern limestone grinding plant can run essentially unmanned, with PLC monitoring of mill current, classifier speed, bearing temperature and bag-filter differential pressure.
Limestone Powder Fineness: Match the Mesh to the Market
Fineness is the specification that decides everything downstream — mill model, motor power, wear cost and selling price. The table below reflects what buyers actually ask for.
| Application | Typical fineness | Key quality requirement | Recommended mill |
|---|---|---|---|
| Power-plant FGD (wet limestone scrubbing) | 250–325 mesh (≈44–57 μm) | 90% passing; CaCO₃ ≥90%, MgCO₃ ≤5% | MTW trapezium mill / SRM vertical roller mill |
| Ground calcium carbonate (GCC) filler for plastics, paints, rubber | 400–1250 mesh (≈10–30 μm) | Tight D97 control, high whiteness | HGM three-ring micro powder mill |
| Dry-mix mortar, putty powder, gypsum blends | 200–325 mesh | Uniform particle distribution, low oversize | YGM Raymond mill / MTW mill |
| Agricultural lime, soil conditioner | 100–200 mesh | Low cost per ton, high tonnage | YGM Raymond mill |
| Glass, steel and ceramic flux | 0–3 mm or 100 mesh | Chemical purity over fineness | Hammer crusher + screening |
A rule of thumb that saves a lot of arguments on site when specifying a limestone grinding mill: every step up in fineness costs you throughput. A mill rated 10 t/h at 200 mesh may deliver only 6–7 t/h at 325 mesh on the same motor. Always size the mill against your finest commercial product, not your average.
Four Main Types of Limestone Grinding Mill
1. YGM Raymond Mill — Best Cost-to-Performance Ratio for 1–20 t/h
The classic pendulum roller limestone grinding mill. Grinding rollers swing outward under centrifugal force and press against a stationary grinding ring while shovel blades lift material into the grinding zone. Output is adjustable between 30 and 425 mesh (0.613–0.033 mm) with a screening rate up to 99%. It suits limestone with Mohs hardness ≤ 7 and moisture below 6%, and it remains the lowest-investment route into limestone powder production.
2. MTW European Trapezium Mill — High Capacity at 325 Mesh
An upgraded Raymond architecture: bevel-gear integrated transmission, curved air duct, internal thin-oil lubrication and a built-in turbine classifier. Stepless fineness adjustment from 1.6 mm down to 0.045 mm (80–325 mesh), with roughly 20–30% lower power consumption than a traditional Raymond mill. For a 325-mesh FGD limestone line, the MTW175 delivers around 13–15 t/h at about 31.5 kWh/t — against 8–10 t/h and ~48 kWh/t for a standard Raymond mill.
3. SRM Vertical Roller Mill — 10–135 t/h with Simultaneous Drying
The vertical roller mill grinds on the material-bed principle: rollers press a bed of limestone against a rotating table while hot gas (up to 350 °C inlet) dries it in the same chamber. It accepts feed up to 38 mm and moisture of 4–15%, delivers final moisture ≤ 1%, and cuts specific energy by roughly 30–40% versus a ball mill. Hydraulic pressure and classifier speed give very tight D50/D97 control, which is why large FGD and GCC projects standardise on this configuration.
4. HGM Three-Ring Micro Powder Mill — 325 to 2500 Mesh
For ultra-fine limestone powder, the HGM three-ring, medium-speed micro powder mill produces 47–5 μm product with an integrated high-precision classifier. Under the same fineness and installed power, its capacity is roughly twice that of a jet mill. There are no rolling bearings or bolts inside the grinding cavity, which removes the most common failure modes of ultra-fine grinding.
Technical Parameters of Baichy Limestone Grinding Mills
Below are the core specifications of the Baichy limestone powder grinding mill range — the fastest way to shortlist the right limestone grinding mill for your project. Capacity is quoted for medium-hardness limestone; final figures depend on feed size, moisture, target mesh and site conditions.
| Model | Mill type | Max feed size (mm) | Output fineness | Capacity (t/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| YGM65 | Raymond mill, 3 rollers | ≤15 | 0.613–0.033 mm (30–425 mesh) | 0.4–1.8 | 15 |
| YGM75 | Raymond mill, 3 rollers | ≤15 | 0.613–0.033 mm | 1–3 | 18.5 |
| YGM85 | Raymond mill, 3 rollers | ≤20 | 0.613–0.033 mm | 1.2–4 | 22 |
| YGM95 | Raymond mill, 4 rollers | ≤25 | 0.613–0.033 mm | 2.1–5.6 | 45 |
| YGM130 | Raymond mill, 5 rollers | ≤30 | 0.613–0.033 mm | 2.5–9.5 | 90 |
| YGM160 | Raymond mill, 6 rollers | ≤35 | 0.613–0.033 mm | 8–16 | 132 |
| YGM190 | Raymond mill, 6 rollers | ≤40 | 0.613–0.033 mm | 18–36 | 250 |
| MTW175 | European trapezium mill, 4 rollers | ≤30 | 1.6–0.045 mm (80–325 mesh) | 15–50 | 132–160 |
| SRM1300 | Vertical roller mill | ≤38 | 212–45 μm (70–325 mesh) | 10–35 | 185–250 |
| SRM1500 | Vertical roller mill | ≤38 | 212–45 μm | 13–48 | 250–355 |
| SRM1700 | Vertical roller mill | ≤38 | 212–45 μm | 18–68 | 355–600 |
| SRM1900 | Vertical roller mill | ≤38 | 212–45 μm | 23–85 | 450–600 |
| SRM2200 | Vertical roller mill | ≤38 | 212–45 μm | 36–135 | 710–1000 |
| HGM series | Three-ring micro powder mill | ≤20 | 47–5 μm (325–2500 mesh) | 0.2–10 | up to 132 |
All models run in closed circuit with a pulse dust collector; the vertical roller mill additionally integrates drying, which removes the need for a separate rotary dryer when feed moisture is high.
Energy Consumption and Operating Cost
Grinding is the largest controllable cost in a limestone powder plant. Typical specific energy for limestone:
• Ball mill: 55+ kWh/t — only justified for very fine wet grinding circuits or abrasive material.
• YGM Raymond mill: about 40–50 kWh/t at 325 mesh, still 30–40% more efficient than a ball mill.
• MTW trapezium mill: about 31.5 kWh/t at 325 mesh, with oil change intervals extended to ~1,800 hours.
• SRM vertical roller mill: roughly 18–28 kWh/t at 200 mesh, thanks to material-bed comminution and integrated drying.
Wear parts — grinding rollers and grinding rings — are the second cost line. In wear-resistant alloy they last 5,000–8,000 operating hours on limestone; high-chrome and hardfaced components on vertical roller mills can reach 6,000–10,000 hours. For a plant running 100,000 t/year, moving from 48 kWh/t to 31.5 kWh/t at US$0.08/kWh saves well over US$100,000 a year — usually more than the difference in equipment price.
Limestone Grinding Mill
How to Select the Right Limestone Grinding Mill？
Work through these six factors before requesting a limestone grinding mill quotation, and you will avoid 90% of selection mistakes:
• Target capacity (t/h) — size for your peak product, not the annual average, and leave 15–20% headroom.
• Finished fineness — 200 mesh and 325 mesh are very different machines at the same tonnage.
• Feed size and moisture — above 6% moisture, a Raymond mill starts to smear and lose output; choose a vertical roller mill or add a dryer.
• Limestone hardness and chemistry — Mohs hardness, Bond work index and SiO₂ content change both power draw and wear-part life. FGD buyers also require CaCO₃ ≥ 90%.
• Site conditions — available footprint, building height, power supply (voltage and installed capacity), ambient temperature and altitude.
• Total cost of ownership — weigh energy, wear parts, labour and downtime, not just the invoice price.
Complete Limestone Grinding Plant Configuration
A turnkey limestone grinding mill plant from Baichy typically includes: vibrating feeder → jaw crusher (primary) → hammer crusher or impact crusher (secondary) → bucket elevator → raw material silo → electromagnetic vibrating feeder → main grinding mill → classifier → cyclone collector → pulse bag filter → induced draft fan → screw conveyor / pneumatic conveying → finished powder silo → automatic packing or bulk loading → PLC control cabinet.
Baichy provides process design, equipment manufacture, installation guidance, commissioning, operator training and lifetime spare-parts supply, with CE and ISO-certified equipment shipped from two manufacturing bases (Jiaozuo, approx. 200,000 m², and Xingyang, approx. 100,000 m²) and a head office in Zhengzhou, Henan.
Frequently Asked Questions About Limestone Grinding Mills
1. What fineness can a limestone grinding mill produce?
A standard Raymond limestone grinding mill or MTW trapezium mill covers 80–425 mesh (0.175–0.033 mm); three-ring micro powder mills reach 325–2500 mesh (47–5 μm). Within a model's range, fineness is adjusted by changing classifier rotor speed and system air volume.
2. How much does a limestone powder grinding mill cost?
A small YGM Raymond mill starts in the tens of thousands of US dollars, while a large SRM vertical roller mill line is a six-figure investment. Price is driven by capacity, fineness, motor configuration, dust-collection class and whether crushing, conveying and packing are included. Send Baichy your material, tonnage and target mesh for a firm budget within 24 hours.
3. Can one mill produce both 200 mesh and 325 mesh powder?
Yes. The classifier on a limestone grinding mill allows grade switching without stopping the mill, but output falls as fineness rises — a mill making 10 t/h at 200 mesh will typically make 6–7 t/h at 325 mesh. Design the line around your highest-volume grade.
4. What moisture can a limestone grinding mill handle?
Raymond and trapezium mills work best below 6% moisture. Vertical roller mills accept 4–15% feed moisture because hot gas dries the material inside the grinding chamber, delivering final powder at ≤ 1% moisture with no separate dryer.
5. How often do wear parts need replacing?
Inside a limestone grinding mill, grinding rollers and rings in wear-resistant alloy last 5,000–8,000 hours (roughly 2–3 years in single-shift operation). Thin-oil lubrication, clean fan blades and consistent feed size extend that life significantly; Baichy supplies spare parts at factory cost for the life of the machine.
