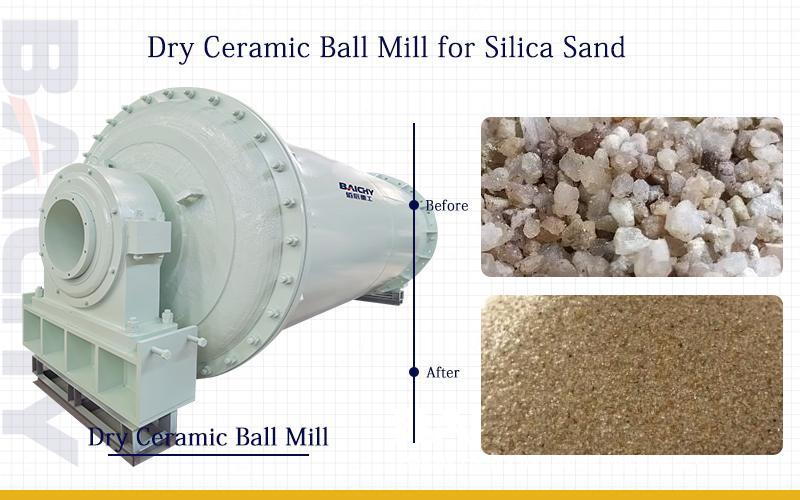

Dry Ceramic Ball Mill for Quartz Sand
For mineral processing plants producing high-purity quartz powder, the grinding stage determines both product quality and operating cost. When your feed material enters the mill at 0-10mm particle size, choosing the right dry ceramic ball mill is the single most important equipment decision. Unlike steel-lined mills that contaminate product with iron, a dry ceramic ball mill uses alumina ceramic liners and grinding media to keep ferrous contamination below trace levels — a critical requirement for quartz sand destined for glass, ceramics, electronics and photovoltaic applications.
As a professional manufacturer of crushing, grinding and beneficiation equipment, Baichy Heavy Industry supplies dry ceramic ball mills engineered specifically for quartz sand processing lines. This guide explains how the 0-10mm feed specification influences mill selection, what to look for in a dry ceramic ball mill, and why our machines deliver consistent, energy-efficient results.
What Is a Dry Ceramic Ball Mill for Quartz Sand?
A dry ceramic ball mill is a cylindrical grinding machine that uses alumina ceramic balls to crush and grind dry material without adding water. The quartz sand (0-10mm) enters through the feeding end, is lifted and cascaded by the rotating cylinder, and is crushed by impact and attrition between the ceramic media and material. The fine powder is discharged through the outlet and collected by a dust collector or classifier in a closed circuit.
The term "ceramic" refers to two key components:
Ceramic Liner (Alumina Al₂O₃)
- Prevents iron contamination of the quartz powder
- Wear-resistant, extending liner service life by 2–3× vs. steel
- Non-reactive with silica, preserving whiteness and purity
Ceramic Grinding Media
- High-density alumina balls (92%–95% Al₂O₃)
- Uniform size distribution for stable grinding efficiency
- Low abrasion loss, reducing operating cost per ton

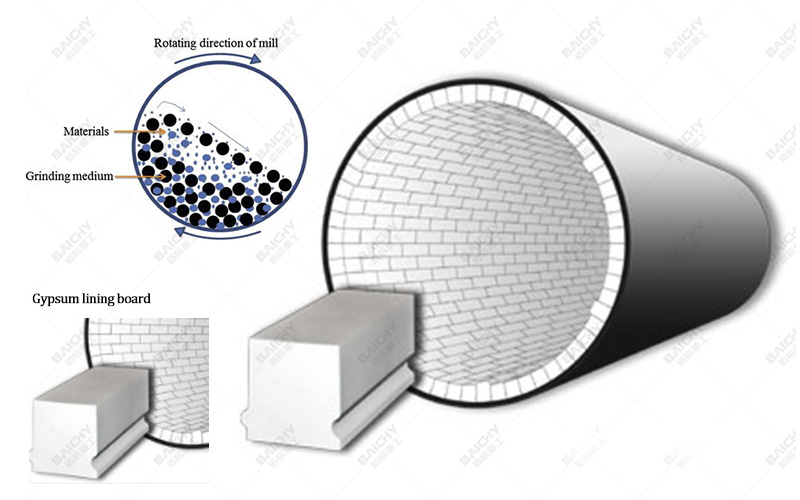

Liner Structure of Ceramic Ball Mills
This design makes the quartz sand ball mill ideal for dry process applications where moisture must be avoided, such as producing silica powder for glassmaking, refractory materials and high-purity fillers.
Why 0-10mm Feed Size Matters for Mill Selection
The 0-10mm feed range is a common output from a jaw crusher or impact crusher, and it is the ideal inlet size for a ball mill. Here is what it means for your circuit:
Matching Media and Liner for Coarse Feed
At 0-10mm, you need a media loading strategy that combines larger balls (Ø25–40mm) for initial coarse reduction with smaller balls for fine grinding. Baichy engineers calculate the optimum ball charge for each model so the mill handles the 0-10mm feed without over-loading the motor or wasting energy on oversized media.
Balanced Capacity and Efficiency
Feeding at 0-10mm avoids the two failure modes of ball milling: feeding too coarse (above 25mm) causes rapid liner wear and low efficiency, while feeding too fine wastes crusher energy. The 0-10mm range sits in the sweet spot where the dry ceramic ball mill achieves its rated throughput at the lowest specific energy consumption.
Stable Discharge Particle Size
With consistent 0-10mm feed, the mill produces a uniform discharge in the 80–400 mesh range (adjustable by media size, rotation speed and classifier settings). This stability is essential for downstream quartz sand buyers who demand tight specification control.

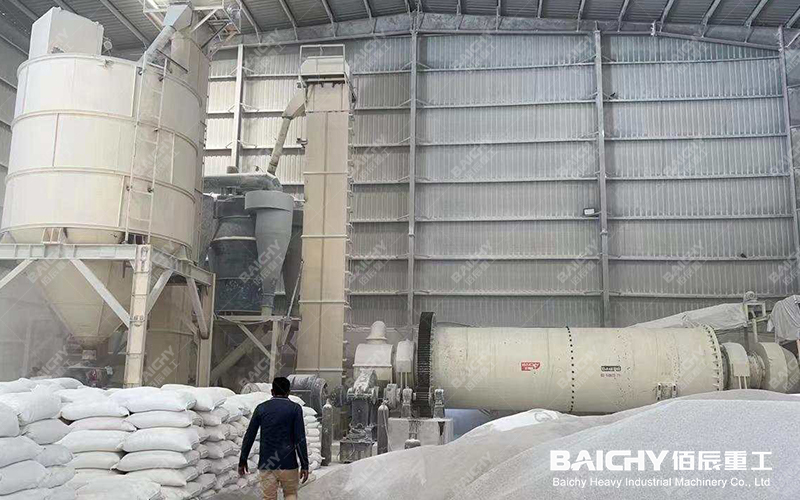

On-site view of a ceramic ball mill grinding gypsum.
Key Features of the Baichy Dry Ceramic Ball Mill
| Feature | Benefit |
|---|---|
| Alumina ceramic liners & media | Iron-free product, purity for high-end quartz applications |
| Dry grinding design | No water, no slurry handling, no drying step downstream |
| 0-10mm feed tolerance | Works directly after a crusher; simplifies the circuit |
| Frequency-variable speed drive | Adjustable RPM for different target fineness |
| Closed-circuit with air classifier | Precise particle size control at high efficiency |
| Dust-sealed housing + collector | Clean operation, meets environmental standards |
| Compact, modular build | Low footprint, easy installation and maintenance |
Technical Parameters of the Dry Ceramic Ball Mill for Quartz Sand
The table below shows the typical specifications for Baichy dry ceramic ball mills handling 0-10mm quartz sand feed. Actual capacity depends on feed hardness, moisture and target fineness; contact our engineers for a tailored selection.
| Model | Cylinder Speed (r/min) | Feed Size (mm) | Grinding Capacity (t/h) | Motor Power (kW) | Discharge Fineness (mesh) |
|---|---|---|---|---|---|
| BQM-0918 | 38 | 0-10 | 0.3 – 1.2 | 15 | 80 – 400 |
| BQM-1224 | 32 | 0-10 | 0.6 – 2.8 | 30 | 80 – 400 |
| BQM-1530 | 27 | 0-10 | 1.2 – 5.0 | 75 | 80 – 400 |
| BQM-1836 | 25 | 0-10 | 2.5 – 8.0 | 130 | 80 – 400 |
| BQM-2140 | 22 | 0-10 | 4.0 – 15 | 210 | 80 – 400 |
*Note: Parameters are indicative and vary with material hardness and moisture; custom configurations are available.*
How the 0-10mm Quartz Grinding Process Works
Step 1 — Pre-crushing to 0-10mm
A jaw crusher or hammer crusher reduces run-of-mine quartz to the 0-10mm feed size required by the dry ceramic ball mill.
Step 2 — Feeding and Grinding
The 0-10mm quartz enters the mill via a sealed feeder. Inside, the rotating ceramic media crushes and grinds the particles by impact and attrition in a completely dry environment.
Step 3 — Classification and Collection
Fine powder is carried by airflow to a classifier and cyclone/dust collector. Oversize particles return to the mill for further grinding, forming an efficient closed circuit that maximizes the output of qualified quartz powder.
Applications of the Quartz Sand Dry Ball Mill
- Glass and silica sand — high-purity quartz powder for flat glass and container glass
- Ceramics and refractory — fine silica for glazes, bodies and kiln furniture
- Photovoltaic and electronics — low-iron silica powder for high-purity requirements
- Construction fillers — coated and surface-modified quartz powders
- Foundry and abrasives — controlled-size silica for casting and blasting media
Dry vs. Wet Grinding for Quartz Sand — Which Is Better?
For many plants the question is dry versus wet processing. A dry ceramic ball mill is preferred when:
- Downstream use requires dry powder (no drying step)
- Water is scarce or costly at your site
- Product must stay iron-free and bright
- You want a simpler, lower-maintenance circuit
Wet grinding suits cases where a slurry is the final product and water is readily available. Baichy can configure either; for most high-purity quartz sand producers, the dry ceramic ball mill delivers the cleanest, most economical result.
Why Choose Baichy for Your Quartz Sand Grinding Line
As an experienced mining machinery manufacturer, Baichy Heavy Industry provides complete support: raw-material testing, process design, mill selection for your 0-10mm feed, full equipment supply, installation supervision and after-sales service. Our dry ceramic ball mills are proven in quartz, feldspar, zircon and many other mineral lines worldwide.
End-to-End Service
From crusher to classifier to finished powder storage, we engineer the whole dry grinding system, not just the mill — so you get a guaranteed, turnkey result.
Factory-Direct Pricing
Buy directly from the manufacturer for competitive pricing, genuine spare parts and responsive technical support.
Conclusion
For producers processing 0-10mm quartz sand into high-purity dry powder, the dry ceramic ball mill is the proven, cost-effective solution. It delivers iron-free product, stable fineness, low energy consumption and a clean, water-free process. With models ranging from 0.3 t/h to 15 t/h and full engineering support, Baichy Heavy Industry is ready to design the right grinding line for your plant.
Contact Baichy today for a free capacity test and mill recommendation for your 0-10mm quartz sand project.
Frequently Asked Questions (FAQ)
Q1: What feed size can this dry ceramic ball mill handle?
The Baichy dry ceramic ball mill is designed to accept a feed of 0-10mm. Material fed above this range should first pass through a jaw or impact crusher to protect the liners and maintain grinding efficiency.
Q2: What is the output fineness of the quartz sand ball mill?
Discharge fineness is adjustable between approximately 80 and 400 mesh by changing media charge, rotation speed and classifier settings, giving flexibility across glass, ceramic and filler applications.
Q3: Does the ceramic lining really prevent iron contamination?
Yes. The alumina ceramic liner and ceramic grinding media mean the quartz powder has minimal contact with ferrous parts, keeping iron contamination at trace levels required for high-purity and photovoltaic-grade products.
Q4: Can you customize the mill for my specific capacity and site?
Absolutely. We offer custom motor power, media loading, liner material, and closed-circuit or open-circuit configurations based on your raw material test results, target fineness and daily output.
Q5: What after-sales support does Baichy provide?
Baichy provides complete installation guidance, operator training, spare parts supply and remote technical support for the lifetime of the machine, plus full system design from crusher to finished product.
