As a manufacturer of mining crushing equipment, we understand our clients' core concerns when investing in gold processing plants: how to control initial investment costs while reserving space for future process upgrades? For the classic requirement of a "small gold processing plant with a daily capacity of 50 tons," we recommend a robust two-stage construction strategy. This solution will systematically analyze the complete process from crushing and grinding to carbon-in-pulp leaching and provide you with highly adaptable equipment selection advice.
Solution Overview: Phased Construction, Stable Investment
The core of this solution lies in its two-step approach, minimizing investment risk and maximizing capital efficiency.
• Phase One: Basic Beneficiation System. The core objective is to achieve ore crushing, grinding, and preliminary enrichment to produce gold concentrate. This stage requires relatively small investment, allows for rapid production, recovers some capital through the sale of gold concentrate, and accumulates operational experience and funds for the second stage.
• Phase Two: Deep Gold Extraction System Building upon the stable operation of the first stage, carbon-in-pulp leaching (CIL) and its supporting analytical electrolysis and smelting processes are introduced to directly extract high-purity alloyed gold from the ore, significantly enhancing product value and profit margins.
This modular and scalable design is particularly suitable for small and medium-sized mines or investors looking to gradually expand production.
First Stage: Crushing, Grinding, and Beneficiation
The first stage is the cornerstone of the entire production line; its stability and efficiency directly impact the final recovery rate.
1. Detailed Process Flow
The raw ore is first coarsely crushed by a jaw crusher, followed by medium and fine crushing by a cone crusher or fine jaw crusher. The crushed product enters a closed-circuit grinding system consisting of a ball mill and a classifier, grinding the ore to a suitable liberation particle size (typically -200 mesh accounting for 80%-90%). The ground product then enters a gravity separation (such as a Nelson centrifugal concentrator or jig) or flotation process to separate and enrich gold-bearing minerals, producing gold concentrate.
2. Recommended Core Equipment and Advantages
1. Jaw Crusher: As the preferred choice for coarse crushing, it boasts significant advantages such as robust structure, high processing capacity, and simple maintenance. For a scale of 50 tons/day, the PE-400×600 model is recommended, as its feed size and processing capacity are perfectly matched.
2. Cone Crusher/Fine Jaw Crusher: Used for secondary crushing, ensuring uniform particle size entering the mill. Cone crushers have low energy consumption and produce good particle shape; fine jaw crushers have lower investment costs. The optimal choice can be made based on the ore hardness.
3. Energy-Saving Ball Mill: Utilizing rolling bearing transmission, it saves over 30% on electricity compared to traditional sliding bearings. It is easy to start up and is key to reducing long-term operating costs for small concentrators.
4. Nelson Centrifugal Concentrator: Offers extremely high recovery rates (up to 98%) for liberated free gold, enabling rapid recovery of some capital and providing crucial initial cash flow.
Phase Two: Carbon-In-Pulp Leaching (CIL) and Gold Refining (Deep Extraction Stage)
Phase Two follows the grinding and classification in Phase One, enabling whole-sludge cyanide leaching of gold. This is crucial for improving overall recovery rate and product value.

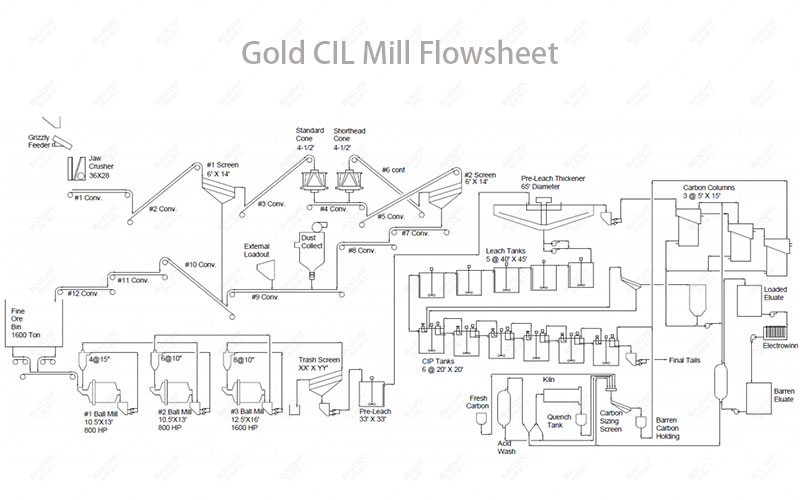

1. Core Analysis of the CIL Process
The finely ground slurry (with coarse gold particles removed) enters a series of leaching tanks connected in series. In the presence of cyanide solution and activated carbon, gold is dissolved and adsorbed onto the activated carbon. The gold-loaded carbon undergoes high-temperature, high-pressure desorption and electrolytic deposition to obtain gold mud, which is finally smelted to produce composite gold ingots. This process is highly effective for recovering fine-grained and encapsulated gold, increasing the overall plant recovery rate to over 90%.
2. Auxiliary Systems and Advantages
• Activated Carbon Regeneration Kiln: Enables the recycling of activated carbon, significantly reducing gold processing costs.
• High-Efficiency Thickener: Ensures effective separation of precious liquor and lean slag, reducing gold loss in tailings.
• Overall Advantages: Mature technology, high recovery rate, easy automation upgrades, and the CIL process itself features continuous operation with uninterrupted gold extraction, ensuring stable operation.
Successful Case Study: 50tpd Gold Mine Project in Central Asia
We provided a complete solution for a client in Kazakhstan. The ore for this project was quartz vein type with uneven gold particle size distribution. We configured a one-stage process of "jaw crusher + cone crusher + ball mill + Nelson centrifuge" to initially recover coarse gold particles. After one year of operation, the client added a 6-tank CIL system and an associated smelting workshop. Combining the two stages, the plant's final total gold recovery rate increased from the initial 65% to 92%, and the investment payback period was shortened by 8 months compared to the original plan, resulting in significant benefits.
Related Equipment and Services Recommendations
• Customized Design: We offer free preliminary process flow design to ensure optimal equipment configuration.
• Core Equipment Package: For a 50tpd scale, we offer a discounted core unit package of "coarse crushing-fine crushing-grinding-gravity separation" to help you get started quickly.
• Installation Guidance and Training: We provide remote guidance or dispatch engineers for installation, commissioning, and worker operation training to ensure smooth production.
Frequently Asked Questions (FAQ)
Q: What is the approximate total investment for a gold processing plant with a daily processing capacity of 50 tons?
A: The investment amount varies greatly depending on the ore properties, equipment selection, level of automation, and region. Typically, the equipment investment for the first stage (crushing, grinding, and beneficiation) is between XX million and XXX million USD. The equipment investment for the second stage (CIL and smelting) is comparable to or slightly higher than the first stage. Phased construction can effectively spread the financial burden.
Q: Is the transition from the first stage to the second stage complex?
A: The transition is relatively smooth. The key is to reserve interfaces and space for the CIL system's slurry flow, site, and power supply during the first stage design. The main additions are CIL leaching tanks, carbon adsorption, electrolytic desorption, and smelting equipment, which can be integrated with the existing grinding and classification system without requiring major modifications to the existing crushing and grinding lines.
Q: How can automation and labor costs be balanced for small gold processing plants?
Answer: It is recommended to adopt economical automatic control systems at key control points (such as crusher feed, grinding concentration, and reagent addition). This can stabilize process parameters, improve recovery rates, and reduce reagent waste. Manual labor can be retained for inspection and maintenance. This "critical point automation" model is most suitable for small gold beneficiation plants, offering the highest cost-effectiveness.
