Looking for a 100TPH Mobile Crusher Plant to Produce 4-Size Aggregates (0-5, 5-10, 10-20, 20-31.5mm)?

100 t/h Tire-Mounted Mobile Crushing Plant

In today's mining and construction waste treatment industries, which prioritize efficiency, environmental protection, and flexibility, traditional stationary production lines are no longer sufficient to meet perse production demands. Pedal-mounted mobile crushing plants, with their superior mobility and plug-and-play convenience, have become a popular choice for many project sites. This article will provide an in-depth analysis of a complete set of pedal-mounted mobile crushing plant equipment designed to achieve a production capacity of 100 tons per hour, accurately producing four aggregate sizes: 0-5mm, 5-10mm, 10-20mm, and 20-31.5mm, offering comprehensive reference for your project selection.

I. Production Line Overview

A production capacity of 100 tons per hour is a classic capacity requirement in small and medium-sized stone quarries, construction waste resource utilization, and various engineering support projects. It satisfies considerable output requirements without excessively pursuing extreme scale, achieving an excellent balance between equipment investment, energy consumption, and site adaptability.

Four finished product specifications (0-5mm, 5-10mm, 10-20mm, 20-31.5mm) precisely cover the mainstream market demand from manufactured sand and fine gravel to medium and coarse aggregates. This requires the crushing and screening system to have high flexibility and controllability, capable of simultaneously producing multiple qualified finished products on the same set of equipment by adjusting process parameters, maximizing economic benefits.

II. Equipment Overview: Integrated Solution

This 100-ton-per-hour tire-mounted mobile crushing plant typically adopts a linked configuration of "feeding + crushing + screening." All modules are integrated on a tire-mounted chassis and consist of one or two mobile vehicles. Its core design concept is "rapid relocation, rapid commissioning, and flexible combination."

Typical Configuration Scheme

A complete solution may include the following modules, and the specific combination can be adjusted according to the raw material properties and finished product requirements:

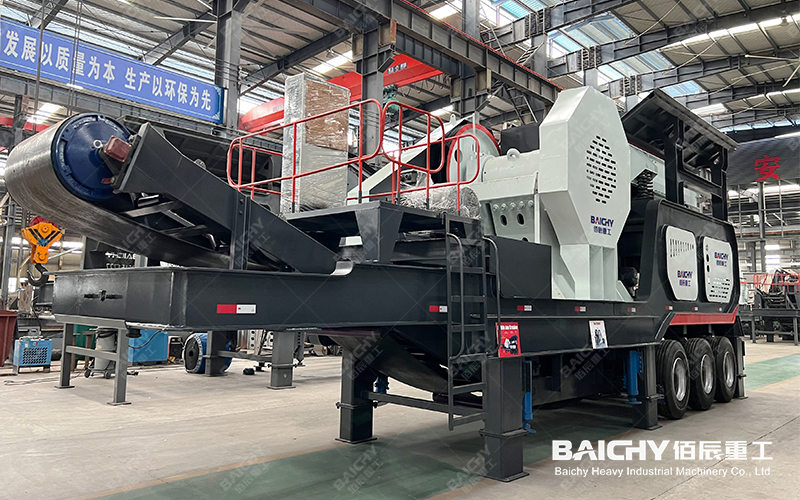

Mobile Jaw Crusher

• Mobile Jaw Crusher: As the primary crushing unit, it is responsible for coarse crushing of large raw materials, providing intermediate materials of suitable particle size for subsequent processes.

Mobile Impact Crusher

• Mobile impact crusher or cone crusher: Serves as a medium to fine crushing unit. For high-hardness, highly abrasive raw materials (such as granite and river pebbles), a mobile cone crusher is preferred; for medium-hardness materials like limestone or construction waste, a mobile impact crusher offers advantages in particle shape and cost-effectiveness.

• Mobile screening station: Equipped with multi-layer high-efficiency vibrating screens, it is responsible for classifying the crushed material, accurately separating finished products of different sizes such as 0-5mm, 5-10mm, 10-20mm, and 20-31.5mm, and returning oversized materials to the crusher for closed-loop recycling.

III. Core Advantages of the Solution

1. Excellent mobility and flexibility: No foundation piling is required; the equipment can be towed to the work site by itself or by a truck, making it particularly suitable for mines with continuously advancing mining faces, multi-site demolition projects, or road construction projects.

2. Rapid commissioning and reduced costs: Upon arrival at the site, connecting cables allows for rapid production capacity establishment, significantly saving upfront infrastructure time and fixed asset investment costs.

3. Controllable finished product quality and excellent particle shape: Especially with the configuration of "jaw crusher + cone crusher" or "jaw crusher + impact crusher," combined with a closed-circuit screening process, the particle size and shape of the finished product can be effectively controlled, resulting in aggregates with a reasonable gradation that meets high-standard building material requirements.

4. Environmentally friendly and energy-saving, with strong adaptability: Modern mobile crushing stations emphasize dust and noise reduction design. Their compact layout allows operation in spaces with limited capacity and easily adapts to complex terrain.

IV. Case Study: Application in a Granite Quarry

V. Recommended Equipment

• Tracked Mobile Crushing Plant: If you have extreme requirements for site mobility (e.g., muddy, rugged mountainous terrain), a tracked system is a more robust option, but investment and maintenance costs are relatively higher.

• Stationary Crushing and Screening Production Line: If your material source is fixed, the production cycle is several years long, and site conditions permit, a stationary production line may be more advantageous in terms of ultra-high capacity and long-term operating costs.

• Mobile Sand Making Machine: If you have higher requirements for the output and particle shape of 0-5mm manufactured sand, consider a mobile VSI sand making plant optimized for sand production.

VI. Frequently Asked Questions (FAQ)

Q1: What is the actual energy consumption of a mobile plant with a capacity of 100 tons per hour?

A1: The total installed power depends on the specific equipment model and configuration. A typical combination of "mobile jaw crusher + mobile cone crusher + mobile screen" usually has a total power between 350-450kW. Actual operating power consumption may fluctuate due to factors such as raw material hardness and crushing ratio settings. It is recommended to request detailed data from the equipment supplier based on the specific plan.

Q2: Is switching from one finished product specification to another complicated? How long does it take?

A2: Adjustment is relatively convenient. It is mainly achieved by replacing the vibrating screen mesh (for different grading sizes) and adjusting the crusher discharge port (CSS). Skilled operators can complete the switch of major specifications within a few hours. Some advanced models can quickly adjust crushing parameters through hydraulic systems or intelligent control.

Q3: Is equipment maintenance complicated?

A3: Routine maintenance (such as lubrication, tightening, and inspection) of tire-mounted mobile stations is similar to that of stationary equipment. Its advantage lies in the relatively independent nature of each module, making maintenance clear. The key is to follow the manufacturer's maintenance manual, especially the regular inspection of the traveling tires, axles, and hydraulic system. Many devices are now equipped with remote monitoring systems that can provide early warnings of potential faults.
