Detailed Process Flow for Cone Crusher Production Lines
The cone crusher serves as the "heart" of any hard rock crushing production line. To fully leverage its advantages—namely high efficiency and low wear—production lines typically adopt a standard process flow characterized by "multi-stage crushing with a closed-circuit cycle."
Detailed below is a comprehensive breakdown of the entire standard cone crusher production line workflow:
I. Core Process Flow Diagram
Raw Material Bin → Vibrating Feeder → Jaw Crusher (Primary Crushing) → Intermediate Stockpile/Buffer Bin → Cone Crusher (Secondary/Tertiary Crushing) → Cone Crusher (Fine Crushing/Shaping – Optional) → Vibrating Screen → Finished Product Stockpile
(Note: Oversized or unqualified materials are returned from the vibrating screen to the cone crusher for re-crushing, thereby establishing a closed-circuit cycle.)
II. Detailed Breakdown of Process Stages
1. Feeding and Pre-screening (Silo & Feeding)

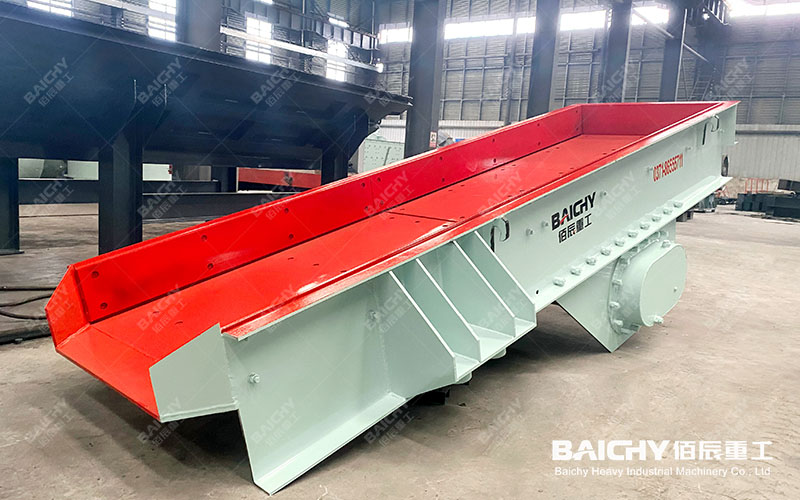

Vibrating Screen
Equipment: Vibrating Feeder
Function: To feed large raw rocks uniformly into the jaw crusher.
Key Point: The feeder is typically equipped with grizzly bars (grates) that pre-screen and remove soil and fine sand from the material beforehand. This prevents soil from entering the subsequent crushing chamber, thereby reducing wear and preventing blockages.
2. Stage 1: Primary Crushing

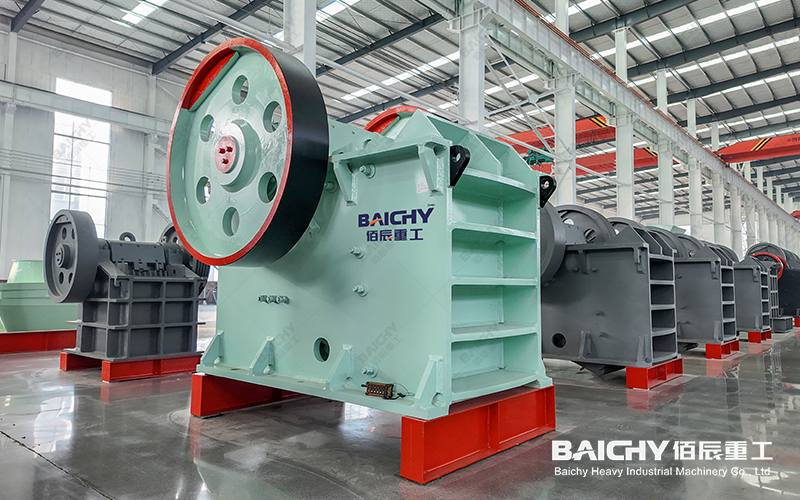

PE Jaw Crusher
Equipment: Jaw Crusher
Function: "Handling the Big Rocks." It crushes massive boulders—typically around 1 meter in size—down to approximately 15–30 centimeters.
Advantage: For hard rock applications, the jaw crusher remains the most efficient and economical tool for primary crushing.
3. Intermediate Buffering (Buffer Storage)
Equipment: Belt Conveyor + Intermediate Stockpile/Buffer Bin
Function: The jaw crusher discharges material intermittently, whereas the cone crusher requires "choke feeding" (a full crushing chamber) to achieve effective inter-particle crushing (lamination crushing). This intermediate buffering stage ensures a continuous and stable supply of material to the cone crusher, thereby boosting the overall efficiency of the entire production line.
4. Stage Secondary Crushing (The Core Stage)

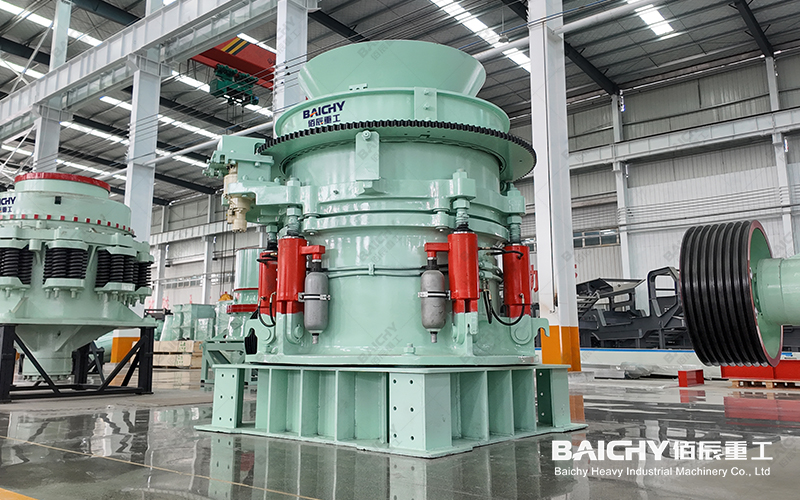

Hydraulic Cone Crusher
Equipment: Single-cylinder / Multi-cylinder Hydraulic Cone Crusher
Function: To further crush the material processed in the primary stage down to a size of less than 5 cm.
Advantage for Hard Rock: Cone crushers utilize a compression-based principle and are highly wear-resistant. The "laminated crushing" effect of multi-cylinder cone crushers allows the stone particles to compress against one another within the crushing chamber, resulting in finished products with a more rounded and desirable shape.
5. Screening & Closed-Circuit Circulation

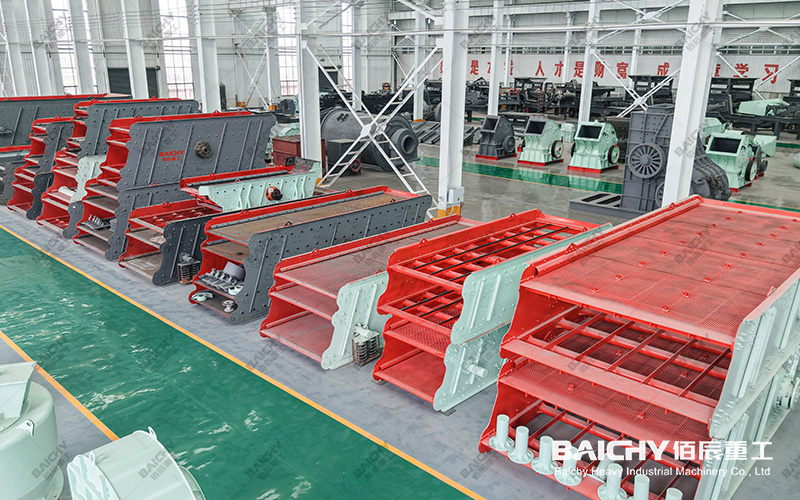

Vibrating Screen
Equipment: Circular Vibrating Screen
Function: To classify the crushed material by particle size into various specifications, such as 0–5 mm, 10–20 mm, 20–31.5 mm, etc.
Key Mechanism: Any material exceeding the required finished product specifications (oversize material) is transported via conveyor belt back to the cone crusher for re-crushing. Establishing this closed-circuit loop is essential to guarantee a 100% compliance rate for the final output.
6. Stage 3: Shaping & Sand Making (Tertiary Crushing/Shaping – Optional)

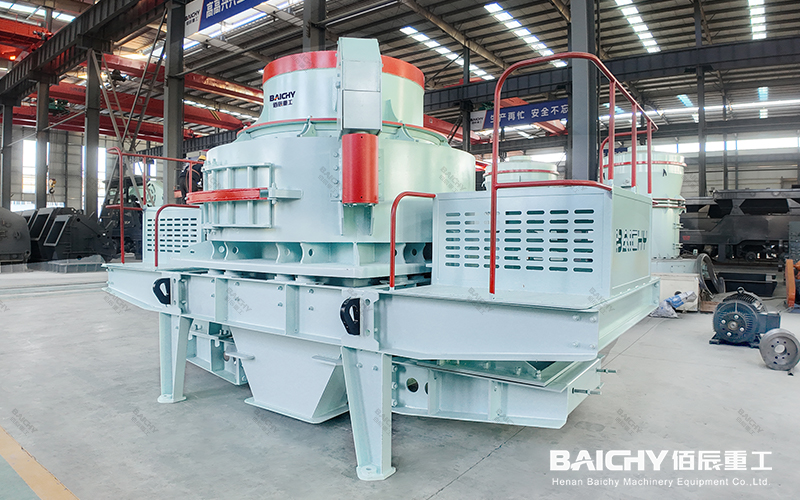

Sand Making Machine
Equipment: Vertical Shaft Impact Crusher (VSI / Sand Maker)
Function: If there are extremely high requirements regarding the particle shape of the construction aggregates (e.g., for high-speed rail or dam construction projects), a shaping stage is added after the cone crushing stage to eliminate internal stresses within the stone and reduce the proportion of needle-like or flaky particles, thereby enhancing the material's overall strength.
III. Three Key Technical Points for Cone Crusher Production Lines
1. The "Full-Chamber Feeding" Principle:
The cone crusher must operate with a full crushing chamber to achieve the "stone-on-stone" laminated crushing effect. This not only ensures superior particle shape for the finished product but also results in uniform wear on the liner plates, thereby extending their service life.
2. Balanced Crushing Ratio:
To maximize overall throughput, the workload should be distributed evenly between the jaw crusher and the cone crusher. If the output from the jaw crusher is too coarse, it will overload the cone crusher, causing the overall production capacity of the entire line to decrease. 3. Iron Removal Protection:
Hard rock production lines must be equipped with a powerful magnetic iron remover installed on the feed conveyor belt leading to the cone crusher. Although cone crushers feature a hydraulic cavity-clearing function, the frequent passage of iron blocks can cause severe damage to the main shaft and liners.
IV. Applicable Materials
This process is widely used for processing materials with extremely high crushing values, such as: granite, basalt, river pebbles, diabase, iron ore, quartz, and others.
IV. FAQ: Frequently Asked Questions
Q1: Why must a "transfer bin" or buffer stockpile be included in a cone crusher production line?
A: This is because jaw crushers discharge material intermittently, whereas a cone crusher requires a continuous, full-cavity feed to achieve its optimal "inter-particle crushing" (laminating) effect. The transfer bin acts as a "reservoir," balancing the output discrepancies between upstream and downstream equipment stages. It prevents the cone crusher from "dry grinding" (running empty) due to insufficient feed or becoming clogged due to sudden surges in feed volume, thereby serving as a critical factor in ensuring the stable output of the entire production line.
Q2: How do I choose between a single-cylinder hydraulic cone crusher and a multi-cylinder hydraulic cone crusher for my process?
A: This depends on your specific production goals. The single-cylinder cone crusher features a simple structure and convenient discharge opening adjustment; it is primarily used for medium crushing, offering high processing capacity and simple maintenance. The multi-cylinder cone crusher generates greater crushing force and operates at a higher frequency; it is primarily used for fine crushing and shaping, producing finished aggregates with a superior particle shape (rounder, with fewer flaky or needle-like particles). If you have extremely high quality requirements for your finished aggregates, the multi-cylinder model is the preferred choice.
Q3: What is a "closed-circuit" process, and what are its benefits?
A: A closed-circuit process refers to a system where oversized stones—separated by a vibrating screen—are conveyed back to the cone crusher via a conveyor belt for further processing. This process ensures that every single particle in the final output meets the preset size specifications. Compared to an "open-circuit process," while the closed-circuit approach entails a higher initial investment in conveyor belts, it offers 100% control over the finished aggregate size, thereby boosting the product's market compliance rate and its potential for commanding a price premium.
