Gold Hammer Crusher
In gold ore beneficiation, primary crushing of the ore is a crucial step determining the efficiency and recovery rate of subsequent grinding. Hammer crushers, with their unique structural design and high impact crushing capacity, have become essential equipment for processing gold ores with medium to low hardness. They are particularly suitable for processing gold ores containing quartz veins, effectively crushing the raw ore to a particle size suitable for ball mill feed, creating favorable conditions for cyanide leaching or flotation.
Equipment Overview and Working Principle

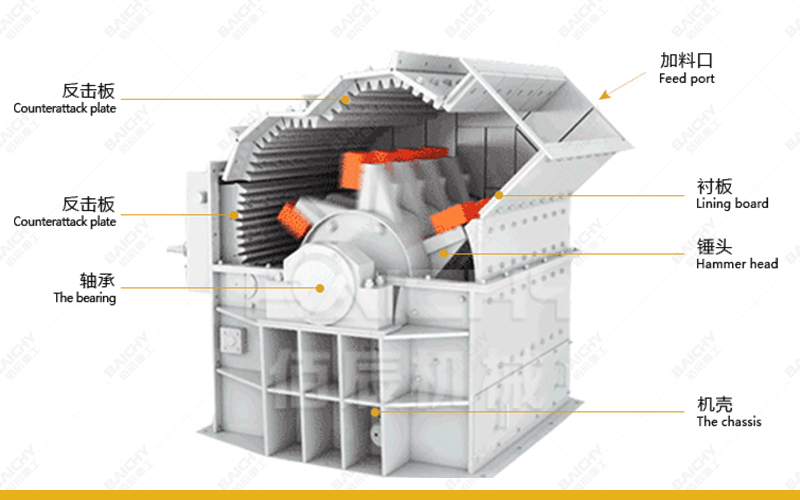

Hammer crusher structure diagram
The gold mine-specific hammer crusher mainly consists of a rotor, hammers, impact plates, screen plates, casing, and drive unit. Its core is the high-speed rotating rotor and multiple rows of hammers hinged to it. When the ore enters the crushing chamber from the feed inlet, it is immediately crushed by the impact of the high-speed rotating hammers. The impacted material then strikes the impact plates on the casing at high speed for secondary crushing, and the material that meets the particle size requirements is discharged through the gaps in the bottom screen plate.
Role in the Process Flow
In a typical gold mine concentrator, the hammer crusher is often used as a secondary crushing device, placed after the jaw crusher. It further crushes the 100-200mm material from the jaw crusher to below 25mm, directly feeding it into the grinding system. This two-stage crushing process significantly reduces overall crushing energy consumption and increases the system's processing capacity.
Key Advantages of Hammer Crusher in Gold Mine Applications
1. High Crushing Ratio and Processing Capacity
The crushing ratio of a hammer crusher can typically reach 10-25, or even higher. This means it can crush large pieces of ore to a smaller particle size in a single pass, simplifying the process. Its processing capacity per unit of power consumption is also superior to other types of fine crushing equipment, making it a key piece of equipment for cost reduction in large-scale gold mine projects seeking economies of scale.
2. Convenient Maintenance and Controllable Operating Costs
The hammerhead is the main wear part. Modern gold mine crushing equipment uses high-chromium alloy composite hammerheads, which significantly improve wear resistance and are relatively easy to replace. Replacement can be done simply by opening the casing, reducing downtime. The overall structure is simple, the operation is reliable, and the daily maintenance cost is low.
3. Uniform product particle size and minimal over-grinding
By adjusting the gap of the bottom screen plate, the output particle size can be flexibly controlled. The product particle shape is mostly cubic, with uniform particle size. Simultaneously, because its crushing principle is mainly impact-based with less compression, it effectively reduces over-grinding, which is of great significance for preventing gold ore "mudification" and improving recovery rate.
Practical Application Case Analysis
Case 1: A medium-sized lode gold mine in West Africa
The ore in this mine is a quartz vein type gold ore with medium hardness (f=8-10). The original process used a jaw crusher + cone crusher, which had high energy consumption and uneven product particle size. It was later modified to a "jaw crusher + hammer crusher" process. After the modification, the power consumption of secondary crushing was reduced by approximately 18%, and the -25mm content in the final crushed product reached over 95%, providing ideal feed for subsequent grinding and leaching processes. A significant increase in annual benefits is expected.
Case Study 2: A Domestic Gold Tailings Reprocessing Project
This project processed historically accumulated tailings. The material was weathered, not very hard, but contained gravel. A large, heavy-duty hammer crusher was selected for open-circuit crushing. The equipment demonstrated good adaptability and throughput, effectively breaking down the hard nodules and uniformly crushing the material to the specified particle size, allowing for the complete release of the encapsulated gold minerals and creating conditions for recycling.
Equipment Selection and Matching Recommendations
Choosing a suitable hammer crusher for gold ore requires comprehensive consideration of ore hardness, moisture content, maximum feed size, required processing capacity, and target product particle size.
• For high-hardness quartz vein gold ore, a heavy-duty, low-speed hammer crusher paired with ultra-high wear-resistant hammers is recommended.
• For highly viscous oxide ores, a screenless, reversible hammer crusher should be selected to prevent clogging.
• Recommended Equipment: A jaw crusher is typically configured at the front end for coarse crushing; a circular vibrating screen can be connected at the rear to form a closed-loop circulation, ensuring the feed particle size; simultaneously, a complete feeder and discharge conveyor are essential for ensuring the continuous and stable operation of the production line.

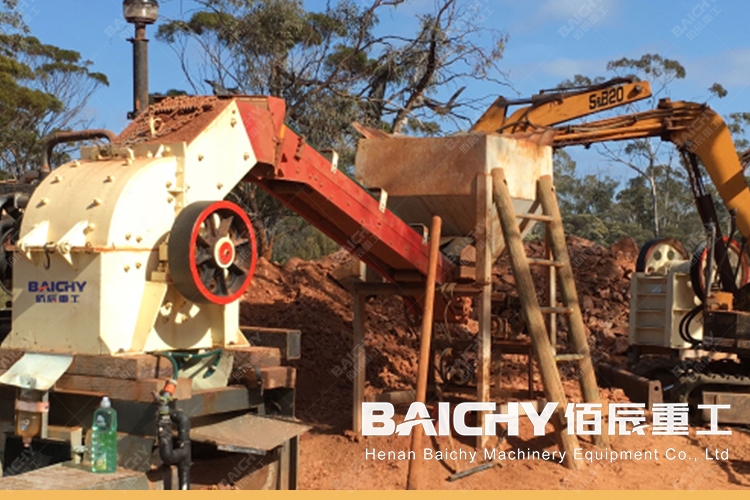

Hammering the customer's site
Frequently Asked Questions (FAQ)
Q1: What are the main differences between hammer crushers and cone crushers for processing gold ore?
A1: The main differences lie in the crushing principle and the applicable ores. Hammer crushers rely on impact force, suitable for ores with medium to low hardness and low abrasiveness, producing more uniform particle size, less over-crushing, and relatively lower investment and maintenance costs. Cone crushers rely on compression crushing, suitable for high-hardness and highly abrasive ores, offering better durability, but potentially slightly inferior product particle shape and gradation, and higher equipment price and maintenance costs. The choice should be based on the physical properties of the ore and the investment budget.
Q2: What is the service life of the hammers? How can it be extended?
A2: Hammerhead lifespan varies greatly depending on ore hardness, abrasiveness, and equipment operating parameters, ranging from hundreds to thousands of hours. The key to extending lifespan is: selecting highly wear-resistant materials (such as high-chromium cast iron) that match the ore; maintaining uniform and continuous feeding to avoid idling or overloading; and regularly stopping the machine to inspect and replace worn hammerheads to maintain rotor balance.
Q3: How to handle excessive vibration and noise during equipment operation?
A3: Abnormal vibration and noise may originate from:
1) Uneven hammerhead wear leading to rotor imbalance – requiring machine shutdown for reconfiguration or hammerhead replacement;
2) Damaged bearings – inspect and replace the bearings;
3) Intrusive objects (such as iron blocks) entering – clean the crushing chamber and check the iron removal device; 4) Loose foundation bolts or component connections – tighten all bolts. Regular inspections should be conducted to promptly eliminate potential hazards.
