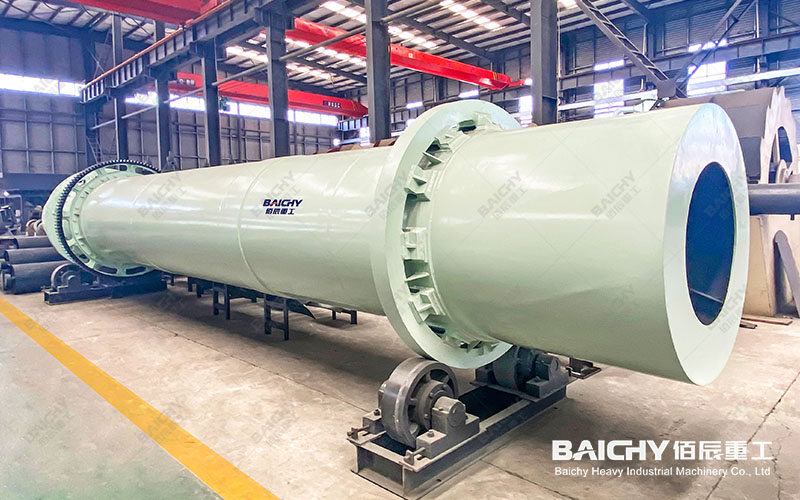

Single Drum Rotary Dryer
Baichy has dispatched a 1.8 × 20 m single drum rotary dryer to a coal slime drying project in Kazakhstan. The dryer is built on the Φ1800 drum series and configured for the site's 230/400 V, 50 Hz supply.
What Was Shipped to Kazakhstan?
The shipment is one single-pass rotary dryer with a Φ1800 × 20000 mm drum for coal slime and washed coal, supplied as a complete drying system: drum, transmission and support devices, feeding and discharge, hot air, dust collection and sealing. A striking device is fitted because coal slime is adhesive.
Published Specifications of the Φ1800 Series
Baichy's English rotary dryer table stops at Φ1800 × 16000, so the capacity, drum volume and motor of the 20 m drum come from the signed technical annex rather than from this page.
| Spec. (Dia. × Length mm) | Volume (m³) | Capacity (t/h) | Main motor (kW) |
|---|---|---|---|
| Φ1800×12000 | 30.5 | 6.5–8.1 | 18.5 |
| Φ1800×14000 | 35.6 | 7.6–9.5 | 18.5 |
| Φ1800×16000 | 40.7 | 7.8–10.2 | 18.5 |
| Φ1800×20000 (as shipped) | 50.8 | 9-12.5 | 22 |
Cell values and range separators are as published by Baichy (read 2026-09-16); the headings are re-typeset. The same pages publish a maximum feed size of <10 mm, a motor band of 3–110 kW and a capacity band of 1–75 t/h across the full range — range-wide figures, not figures for the 20 m drum.
1.8x20M Single Cylinder Rotary Dryer Shipped To Kazakhstan
What Does a Kazakh Coal Site Change in the Specification?
Three published figures shape this order: the site's supply, its winter temperature, and the border the drum has to cross.
| Site condition | Published figure |
|---|---|
| Supply voltage and frequency | 230/400 V, 50 Hz |
| January mean daily minimum, Ekibastuz | −18.7 °C (record low −45.0 °C) |
| Rail gauge at the Chinese border | 1,520 mm vs 1,435 mm in China — break-of-gauge at Dostyk and Khorgas/Altynkol |
Coal slime is dried at ≤30% water content, at about 5–15 kWh per ton and a thermal efficiency of about 50%–60%, with a maximum inlet air temperature of 700–800 °C on the Φ1800 series. The cold-weather package and the drum section plan are confirmed on the technical annex.
FAQ: Coal Slime Drying in Kazakhstan
1. What is the drying capacity of a 1.8 × 20 m single drum rotary dryer?
Baichy publishes Φ1800 × 12000 at 6.5–8.1 t/h, Φ1800 × 14000 at 7.6–9.5 t/h and Φ1800 × 16000 at 7.8–10.2 t/h. The 20,000 mm length is not in that table, so the coal slime capacity for the Φ1800 × 20000 drum is confirmed on the signed technical annex.
2. What materials can this single drum rotary dryer handle?
Coal slime at a water content of ≤30%, washed coal and lignite-class coal, plus ore concentrates, quartz sand, clay, limestone, gypsum and slag across the same dryer range. Baichy lists high-viscosity sludge and heat-sensitive materials as unsuitable for a single drum rotary dryer.
3. Will a rotary dryer run through a Kazakh winter?
Ekibastuz records a January mean daily minimum of −18.7 °C and a record low of −45.0 °C. The dryer runs through that climate when the lubricant grade, sealing material and insulation are specified for the site's design temperature and the cold-start procedure is written for it; Baichy states all three on the technical annex.
4. How does a 20 m dryer drum reach a site in Kazakhstan?
Kazakhstan's railway runs on a 1,520 mm gauge against 1,435 mm in China, breaking gauge at Dostyk and Khorgas/Altynkol, so the 20 m drum ships in sections and is assembled on site. Section lengths, weights and the site crane requirement come with the shipping plan.
