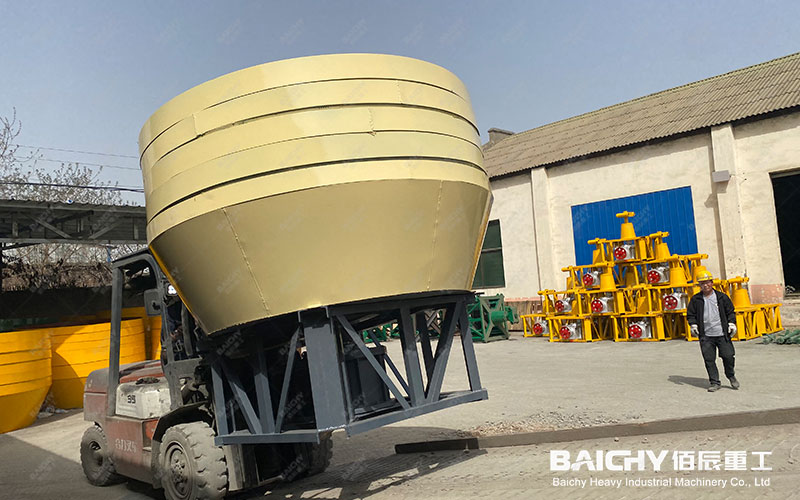

Gold Pan Mill - Efficient Gravel Gold Ore Milling Machine
I. In-depth Topic Analysis: Why is the Gold Panning Mill Indispensable in Placer Gold Processing?
In the placer gold processing flow, ore grinding is a crucial preliminary step for releasing free gold particles and improving recovery rates. Traditional grinding equipment, such as ball mills, often suffers from high energy consumption, high water consumption, and poor control over over-grinding when processing gold-bearing mud or small to medium-sized placer gold ores, leading to the loss of fine gold particles. The gold panning mill, as an ancient yet enduring wet grinding device, specifically addresses these pain points. It combines multiple functions, including grinding, mixing, stirring, and gravity pre-concentration, making it particularly suitable for wet grinding of metal ores such as gold, silver, copper, lead, and zinc. It is an irreplaceable and highly efficient piece of equipment in the pre-treatment stage of placer gold ore processing.
| Key Words | Gold Pan Mill |
|---|---|
| Product Model | Wet Pan Mill |
| Feed Size | ≤30mm |
| Motor Power | 3-30kw |
| Capacity | 3-20t/h |
| Core Functions | Kinetic energy transfer + abrasion + hydraulic classification |
| Brand | Baichy Heavy Industry |
| Packing | Standard containers，Nude Packing，Wooden boxes, etc |
| Installation | Engineer Guide |
| Factory visit | Welcomed Warmly |
| Export Countries | Southeast Asia, Central Asia, South America, North America, Africa |
| Payment | T/T,L/C payment,Paypal...etc |
| Please note: The above table data is for reference only. For specific information, please contact us. | |
II. Equipment Overview: What is a Gold Panning Mill?
The gold panning mill, often referred to as a Wet Pan Mill or Gold Grinding Machine in English, consists of a sturdy base, a large steel pan, and two heavy rollers. During operation, an electric motor drives the rollers to rotate on the pan via a reduction gear. The ore slurry, a mixture of the ore and water, is continuously fed into the center of the pan. Under the gravitational pressure of the rollers and the friction with the pan's bottom plate, the material is effectively crushed and ground. Once the desired fineness is achieved, the material overflows from the discharge port at the edge of the pan.
Gold grinding machine structural diagram
Core Working Characteristics:
• Wet operation: Water is involved throughout the process, eliminating dust pollution and facilitating mineral dissociation and slurry transportation.
• Edge drive: Simple structure, easy maintenance, and direct and efficient power transmission.
• Adjustable gap: The gap between the rollers and the pan is adjustable, allowing for control of the final product particle size.
III. Core Advantages: Why Choose Our Gold Panning Mill?
As a manufacturer with 20 years of experience in designing and manufacturing mineral processing equipment, we deeply understand the process requirements of placer gold processing. Our gold panning mill offers the following significant advantages:
1. Low Investment and Operating Costs
The initial purchase cost of the equipment is significantly lower than that of ball mill production lines with equivalent processing capacity. Its simple structure, low power consumption, and low water consumption greatly reduce long-term operating costs for our customers.
2. Significantly Improved Recovery Rate
The unique crushing and grinding method reduces over-grinding, better protecting the liberated gold particles from excessive pulverization. This creates better feed conditions for subsequent gravity separation equipment such as shaking tables and centrifuges, thus improving the overall gold recovery rate.
3. Robust and Durable, Highly Adaptable
Key components such as the grinding disc and grinding wheels are made of high-manganese steel or special alloy steel, offering excellent wear resistance and a long service life. The equipment is highly adaptable to variations in ore moisture and clay content, ensuring stable and reliable operation.
4. Multifunctional Integration
One piece of equipment simultaneously performs medium and fine crushing and fine grinding operations. Preliminary mineral liberation and enrichment are achieved during the grinding process, simplifying the process flow and making it particularly suitable for small to medium-sized placer gold processing plants.

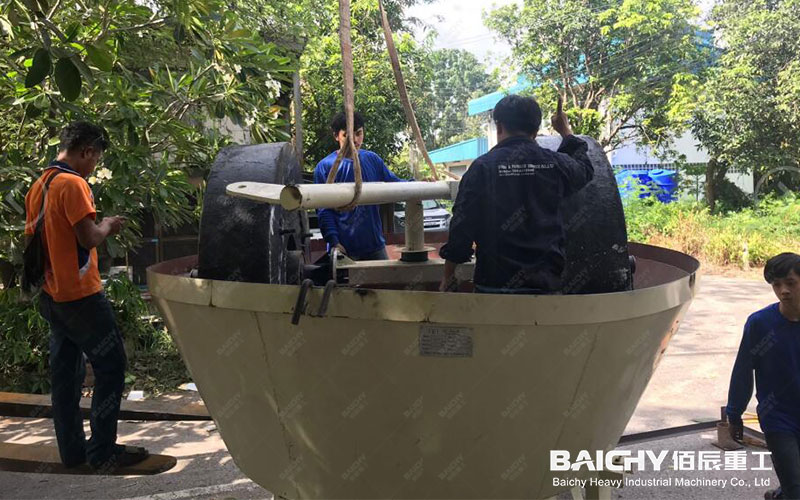

Gold grinding machine customer site
IV. Application Cases: Successful Practices Demonstrate Effectiveness
In a customer project in Ghana, West Africa, the raw ore was gold-bearing oxidized ore, with gold particles encased in iron clay. The customer initially used a traditional ball mill, achieving a recovery rate of only 65%-70%, with high energy consumption. After replacing the original coarse grinding section with our recommended Φ1200 gold panning mill, combined with simple shaking table concentration, the overall gold recovery rate of the system increased steadily to over 82%, and power consumption decreased by approximately 30%. The customer recovered their equipment investment cost within 8 months. This fully demonstrates the excellent economic and technical applicability of the gold panning mill in specific gold ore processing applications.
V. Related Equipment Recommendations: Creating a Complete Placer Gold Processing Production Line
An efficient gold panning mill needs to work in conjunction with upstream and downstream equipment to maximize its value. We provide integrated solutions for you:
• Upstream feeding: Jaw crusher (for preliminary crushing of large ore blocks), vibrating feeder. • Subsequent Selection Equipment: Gold shaking table, centrifugal gold concentrator, amalgamation barrel, etc., used to extract gold from the slurry discharged from the gold panning mill.
• Auxiliary Equipment: Slurry pump, hydrocyclone (for classification), diesel generator (for use in areas without electricity).
VI. Frequently Asked Questions (FAQ)
Q1: What are the main differences between a gold panning mill and a ball mill?
A1: The main differences lie in the working principle and product characteristics. Gold panning mills use rollers to crush and grind the ore through pressure and friction, resulting in a more uniform particle size, less over-grinding, and better gold recovery, with lower investment and operating costs. Ball mills use steel balls for impact and grinding, resulting in a wider particle size range and higher processing capacity, but are prone to over-grinding, have a more complex system, and higher costs. For placer gold deposits, gold panning mills are often a more economical and efficient choice.
Q2: What is the processing capacity of a gold panning mill? How do I choose a model?
A2: The processing capacity ranges from several hundred kilograms to several tons per hour, depending on the model (such as Φ900, Φ1100, Φ1200, Φ1500, etc.) and the properties of the ore. Model selection requires comprehensive consideration of the raw ore particle size, hardness, target processing capacity (TPH), and expected product fineness. Our engineers can provide you with accurate model recommendations based on your mineral assay report and production capacity requirements.
Q3: Is it difficult to replace worn parts? How is after-sales service guaranteed?
A3: The core wear parts are mainly the grinding rollers and grinding disc liners. We use a modular design for easy replacement. As a professional manufacturer with 20 years of experience, we provide detailed installation instruction manuals, operation training videos, and guarantee the long-term supply of key spare parts. We provide a 12-month warranty and have service partners in multiple locations worldwide to quickly respond to technical inquiries.
