Looking for a Two-Stage Hammer Crusher to Boost Your Crushing Efficiency?

Double-stage hammer crusher

In the fiercely competitive mining industry, reducing operating costs and improving production efficiency are the eternal pursuits of every business owner. As the choke point of a mining crushing production line, the choice of primary crushing equipment directly determines the output quality, energy consumption level, and final profit of the entire production line. Traditional single-stage hammer crushers or combinations of jaw crushers and impact crushers often face pain points such as feed blockage, uneven output particle size, and excessively rapid hammer wear.

Today, as a marketing expert with many years of experience in the mining equipment field, I will proudly introduce to you a revolutionary product that can completely change this situation the double-stage hammer crusher. It is not just a machine, but a highly efficient crushing solution for medium-hard materials (such as limestone, bluestone, and coal gangue).

I. What is a Double-Stage Hammer Crusher?

A double-stage hammer crusher, as the name suggests, integrates two rotor systems into one, achieving two-stage crushing in one go. After entering the machine chamber, the material is first subjected to high-speed impact and coarse crushing by the hammers on the first-stage rotor. The crushed material, under inertia, is then rapidly thrown to the second-stage rotor. The second-stage rotor rotates at an even higher linear velocity, further crushing and shaping the material.

This series-type crushing mode is equivalent to seamlessly integrating a heavy hammer crusher and a fine crusher, breaking away from the complex process of traditional crushers requiring multiple machines to work together, achieving a one machine can hold the line effect.

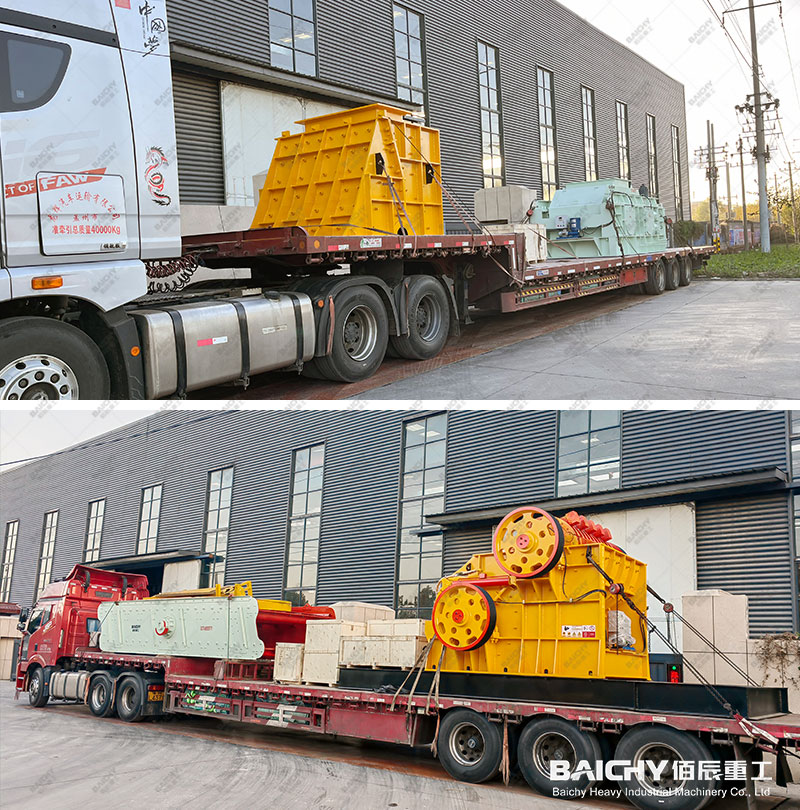

Shipping photos of a double-stage hammer crusher

II. Why is it a wise choice for investors?

1. Revolutionary grate-free design, completely eliminating clogging problems

Traditional hammer crushers rely on grate bars to control the output particle size. When processing materials with slightly higher moisture content, grate bar clogging is very likely to occur, leading to downtime for cleaning and severely affecting continuous production. The dual-stage hammer crusher boldly eliminates the grate bar structure, controlling the output particle size by adjusting the gap between the two sets of rotors. This not only fundamentally eliminates the risk of blockages but also makes the equipment more adaptable to material humidity, allowing for normal production even in rainy weather, greatly improving equipment utilization.

2. More uniform output particle size and better particle shape, directly enhancing product value

Through continuous crushing and mutual impact of two-stage rotors, the material achieves thorough stone-on-stone self-grinding and shaping within the machine cavity. The final output particles are mostly cubic, with extremely low needle-like and flaky content, and uniform and controllable particle size (typically controllable to below 20mm, or even finer). Such high-quality aggregate is more competitive in the market, and its price is much higher than the irregular material produced by ordinary crushers.

3. Dual reduction in energy consumption and maintenance costs, maximizing profits

◦ Low energy consumption: One machine completes coarse, medium, and fine crushing, eliminating intermediate conveying links and the total power of multiple motors, reducing overall energy consumption by more than 30% compared to traditional two-stage crushing production lines.

◦ Long service life of wearing parts: The hammerhead is a core wearing part. The hammers of the double-stage hammer crusher are made of a special alloy material and are interchangeable on all four sides, resulting in uniform wear and a significantly extended service life. Simultaneously, the modular design makes replacement more convenient, reducing maintenance time and labor costs.

4. Simplified Process Flow and Reduced Infrastructure Investment

Using a single double-stage hammer crusher can replace the traditional configuration of a jaw crusher + impact crusher/cone crusher. This means you only need to build a basic platform, requiring fewer conveyor belts and elevators, resulting in a more compact production line layout and significantly saving on civil engineering and equipment procurement costs. It is particularly suitable for small and medium-sized mines or mobile crushing plants.

III. Applicable Scenarios and Selection Recommendations

The double-stage hammer crusher is not a panacea. It is best suited for medium-hardness materials with a compressive strength below 200MPa, such as limestone, gypsum, coal, coal gangue, and shale. For high-hardness materials such as granite and basalt, it is recommended to still use the jaw crusher + cone crusher solution.

When selecting a crusher, please pay close attention to the characteristics of your raw materials (hardness, moisture content, soil content), expected output, and discharge particle size requirements, and have in-depth discussions with reliable equipment suppliers. A responsible supplier will provide material testing services, allowing you to witness the crushing effect firsthand.

In today's pursuit of cost reduction and efficiency improvement, choosing a high-efficiency, reliable, and economical crushing machine is key to building core competitiveness for mining enterprises. The double-stage hammer crusher, with its unique design and superior performance, is becoming the first choice for an increasing number of savvy investors. It's not just about upgrading equipment, but also about upgrading your production philosophy. Choosing it means choosing a higher return on investment and a broader market prospect.
