Single-Toggle Jaw Crusher: Detailed Explanation of Structural Features, Operating Principles, and Industry Applications

Single-toggle jaw crusher, jaw crusher structure, mining cru

Primary crushing is the first critical step in material processing. Among various primary crushing equipment, the single-toggle jaw crusher, with its robust structure, reliable operation, and easy maintenance, has become a timeless classic. What makes it so unique? Why does it endure in harsh industrial environments? This article will take you deeper into the world of the single-toggle jaw crusher.

1. What is a single-toggle jaw crusher?

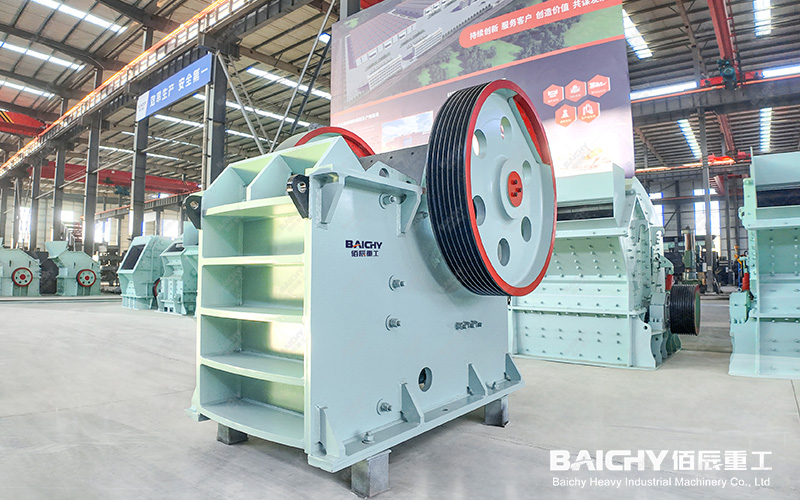

As the name suggests, a single-toggle jaw crusher transmits power to the movable jaw solely through a single toggle plate (also known as a thrust plate). Compared to the more complex double-toggle jaw structure, its design is more streamlined, with all moving parts (eccentric shaft, movable jaw, toggle plate) connected in series in a straight line, forming an efficient and reliable crushing system. This classic design provides exceptional stability and durability when handling large, hard materials.

II. Core Structure and Working Principle: Simple yet Uncomplicated

1. Core Structure Analysis

A typical single-toggle jaw crusher consists of the following components:

• Frame: The machine's skeleton, bearing the immense crushing force, typically made of high-strength cast steel.

• Moving and Fixed Jaw: The moving jaw is equipped with replaceable jaw plates (tooth plates) that, together with the fixed jaw plate, form the crushing chamber and are the components directly involved in the crushing process.

• Eccentric Shaft: The "heart" of the machine, rotating to generate the reciprocating motion of the moving jaw.

• Single Toggle Plate (Thrust Plate): Not only transmits force, it also serves as an overload protection device. When uncrushable material (such as iron) enters the crushing chamber, the toggle plate breaks first, protecting other core components from damage.

• Adjustment Device: Used to adjust the size of the discharge port and control the final particle size of the product. 2. Intelligent Working Principle

The operating process can be summarized as "simple reciprocating motion, efficient crushing":

When the motor drives the pulley and eccentric shaft to rotate, the movable jaw connected to the eccentric shaft performs a regular reciprocating motion. When the movable jaw approaches the fixed jaw, the material between the two jaw plates is squeezed and split, crushing it. When the movable jaw moves away from the fixed jaw, the crushed material is discharged from the discharge port under the action of gravity. This repetitive cycle achieves continuous and efficient batch crushing.

III. Significant Advantages of the Single Toggle Plate Jaw Crusher

• Simple Structure and Easy Maintenance: The small number of parts and compact design make routine inspection, maintenance, and replacement of wearing parts (such as jaw plates and toggle plates) very convenient, reducing downtime and maintenance costs.

• Reliable Operation and Strong Overload Protection: The simple lever principle ensures extremely stable operation. The "sacrificial" design of the single toggle plate provides effective overload protection, preventing catastrophic damage to the equipment in unexpected situations.

• Wide Applicability and High Processing Capacity: It can handle a wide range of high-hardness materials, from granite and basalt to various ores, with large feed sizes and high crushing ratios.

• Low Investment Cost and Good Economic Performance: Due to its classic design and mature manufacturing process, both initial investment and long-term operating costs are relatively low, resulting in a high return on investment.

IV. Main Application Areas

The single-toggle jaw crusher is an ideal primary crushing equipment for the following applications:

• Mining and Quarrying: It is used for the initial coarse crushing of raw ore, preparing for subsequent secondary and fine crushing.

• Construction Materials: It crushes limestone, granite, river pebbles, and other materials for the production of aggregates and sand and gravel.

• Metallurgy: It crushes industrial solid waste such as slag and steel slag, realizing resource utilization.

• Highway and Railway Construction: It provides the various grades of aggregate required for roadbeds.

The single-toggle jaw crusher utilizes a minimalist mechanical principle to achieve its core crushing function. It embodies the philosophy of durability in industrial equipment design and is an indispensable "powerhouse" in the heavy industry. Whether you are building a new production line or upgrading existing equipment, choosing a high-quality single toggle jaw crusher will lay a solid and reliable foundation for your project.
