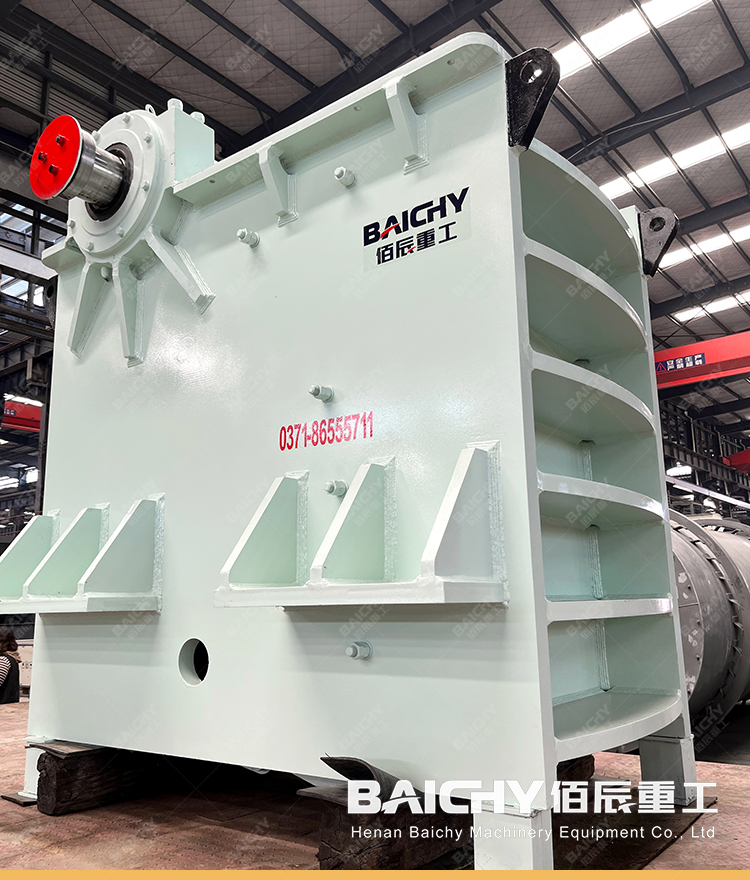

In mineral processing production lines, primary crushing is the choke point of the entire process, and its equipment performance directly determines the efficiency of subsequent operations and the final output. The 750×1060 jaw crusher, as a classic model for medium crushing, has always been the core choice for many sand and gravel aggregate plants and mining enterprises due to its reasonable feed size, stable output particle size, and powerful processing capacity.
As a mineral processing equipment manufacturer with twenty years of experience, we deeply understand the value of reliability. Every 750×1060 jaw crusher we produce is not merely a simple realization of specifications, but a concrete manifestation of our commitment to superior quality. From the heavy-duty welded frame to the high-quality jaw plates, from the optimized crushing chamber shape to the reliable bearings and transmission system, we insist on meticulous attention to detail in every aspect to ensure the equipment can operate stably and reliably under the harshest conditions, maximizing the return on investment for our customers.
Why choose our 750×1060 jaw crusher?
1. Robust and Durable Structure: The heavy-duty frame, welded from high-quality steel plates and stress-relieved, possesses exceptional rigidity and fatigue resistance, laying a solid foundation for the equipment's long service life.
2. Highly Efficient Crushing, Stable Output: The optimized V-shaped crushing chamber and deeper nip angle ensure a larger crushing ratio and uniform finished product particle size, effectively improving the single-machine processing capacity.
3. Convenient Maintenance, Low Operating Costs: The moving jaw assembly adopts an integral cast steel bearing housing structure, ensuring a perfect fit with the frame. The centralized lubrication system and easy disassembly of key components significantly reduce daily maintenance time and labor costs.
4. Powerful Performance, Energy Saving and Consumption Reduction: Equipped with a brand-name motor, it boasts high transmission efficiency. While ensuring powerful crushing force, it emphasizes energy consumption control, achieving a win-win situation for both efficiency and environmental protection.
Core Technologies and Parameters Overview
Our 750×1060 jaw crusher integrates several practical designs. The specific technical parameters are compared in the table below:
| Features/Parameters | Our Equipment Advantages | Industry Standard Reference |
| Feed Size | 750×1060 mm | 750×1060 mm |
| Maximum Feed Size | ≤630 mm | ≤630 mm |
| Discharge Opening Adjustment Range | 80-180 mm | 80-180 mm |
| Processing Capacity | 110-320 t/h (depending on material properties and discharge opening settings) | 100-300 t/h |
| Spindle Speed | 250 rpm | 250 rpm |
| Motor Power | 90-110 kW (adjustable according to configuration) | 90-110 kW |
| Core Structural Features | Integral cast steel bearing housing, modular design, centralized lubrication system | Split bearing housing, traditional lubrication |
| Frame Manufacturing Process | Heavy-duty welding + Vibration Aging Stress Relief Treatment | Ordinary Welding |
| Manufacturer Experience | 20 Years of Focused Mineral Processing Equipment Manufacturing | (Experience Varies) |
Factory Direct Sales Advantage Guaranteed from the Source
We insist on a factory direct sales model, which not only means you will get a more competitive market price, but also represents high-quality service across the entire chain:
• No middlemen markups: Customers deal directly with the factory, ensuring transparent costs and extremely high cost-effectiveness.
• Flexible customization: We can make targeted adjustments and suggestions to the equipment based on your specific material characteristics (such as hardness, moisture content, silicon content) and production capacity requirements.
• Rapid service response: From technical consultation and installation guidance to after-sales maintenance, factory-to-factory communication greatly improves service efficiency and accuracy.
• Controllable quality from the source: You can trace the production process. We conduct rigorous comprehensive testing on every piece of equipment before it leaves the factory to ensure it is ready for immediate use upon delivery.
Choosing a reliable 750×1060 jaw crusher is choosing a trustworthy start for your production line. With 20 years of professional experience, we are committed to providing you with solutions ranging from single machines to complete production lines. Superior quality stems from our focus; factory direct sales ensure mutual benefit. Contact us now for customized technical solutions and quotations, helping you solidify your business foundation and broaden your path to growth.
