Jaw crushers, especially the classic PE600x900 model, have become the preferred primary crushing equipment for 100-ton/hour stone crushing production lines due to their superior structural reliability and wide material adaptability. This article will provide an in-depth analysis of the core role and configuration scheme of this model in a 100-ton/hour production line.
Why is the PE600x900 the ideal starting point for a 100-ton/hour production line?

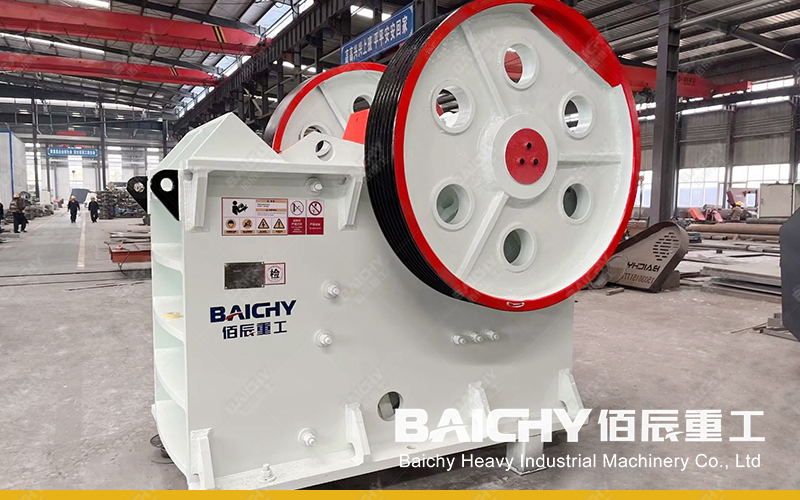

The PE600x900 is a medium-sized jaw crusher with a feed opening size of 600mm × 900mm, a maximum feed side length of 500mm, and a discharge opening adjustment range of 65-160mm. Its designed capacity perfectly matches the range of 70-180 tons/hour, making it the golden starting point for building a stable 100-ton/hour production line. This model adopts a mature "toggle plate" mechanical structure, and the moving jaw movement trajectory has been optimized. It not only has strong crushing force, easily handling high-hardness materials such as granite, basalt, and river pebbles, but also boasts a long service life for wear parts and controllable maintenance costs.
Its superior stability stems from a robust frame design, high-quality heavy-duty eccentric shaft bearings, and an optimized crushing chamber shape. The deep "V"-shaped chamber design ensures smooth feeding, eliminating the risk of blockages, while simultaneously increasing the crushing ratio and reducing the burden on subsequent medium and fine crushing processes. For mining equipment investors, this translates to less downtime and higher equipment utilization, a crucial guarantee for maximizing return on investment.
Building a High-Efficiency Crushing Production Line Centered on the PE600x900
A complete stone crushing production line involves far more than just one jaw crusher. Using the PE600x900 as the core for coarse crushing, we can plan a highly efficient and flexible aggregate production line with capacities of hundreds of tons. Its typical downstream configuration requires precise combination based on the finished product specifications (e.g., 0-5mm, 5-10mm, 10-20mm, 20-31.5mm, etc.).
Below is a common production line configuration scheme for approximately 100 tons/hour suitable for medium-hardness materials:
| Process Stage | Recommended Equipment Model (Example) | Main Functions | Remark |
| Coarse Crushing | Jaw Crusher PE600x900 | Performs primary crushing of large ore blocks, preparing raw materials for subsequent processes. | The cornerstone of the production line, determining maximum feed and initial capacity. |
| Medium Crushing | Cone Crusher/Impact Crusher (e.g., PYB1750 or PF-1214) | Performs secondary crushing of the coarsely crushed stone, producing medium-sized aggregates. | Uses cone crushers for high hardness, and impact crushers for better particle shape. |
| Fine Crushing and Shaping | Impact Crusher (Sand Making Machine) (e.g., VSI-1140) | Performs fine crushing and shaping of some materials, producing high-quality manufactured sand. |
Optional configuration depends on market demand for sand. |
| Screening | Multi-layer Circular Vibrating Screen (e.g., 3YK-2160) | Classifies crushed mixtures to separate finished products of different specifications. | A key screening device that determines the accuracy and efficiency of finished product grading. |
| Auxiliary Systems | Feeders, belt conveyors, electrical control systems, dust removal systems, etc. | Enables continuous, stable, and environmentally friendly material conveying and production. | Crucial for ensuring continuous automated operation of the production line. |
Beyond the Equipment Itself: Full Lifecycle Value Service
As a seasoned mining equipment supplier, we understand that customers need more than just a machine; they need a solution that continuously creates value. By choosing our PE600x900, you will receive:
1. Precise Process Design: We provide free production line layout and process solutions to ensure perfect capacity matching between equipment, eliminating bottlenecks.
2. Superior Equipment Quality: From heavy-duty frames to core bearings, we use top-grade materials and precision manufacturing to ensure the equipment's durability under harsh operating conditions.
3. Rapid Response Service: We have established a global service network, providing one-stop service from installation guidance and operation training to rapid spare parts supply, minimizing your downtime losses.
4. Optimized Operating Costs: By providing highly wear-resistant jaw plates and scientific maintenance solutions, we help you significantly reduce your production costs per ton, enhancing your market competitiveness.
Investing in a stone crushing production line is a crucial strategic decision. Choosing the PE600x900 jaw crusher, proven in the market for decades, as your core means choosing a reliable and efficient starting point. Combined with professional process design and full lifecycle service, you will build not just a production line, but a powerful profit engine.
