As modern infrastructure construction places increasingly stringent demands on aggregate production quality and operational flexibility, mobile crushing technology has emerged as a key research hotspot within the sand and gravel mining and solid waste processing sectors. This paper aims to examine a mobile crushing system that utilizes the classic PE600x900 double-toggle jaw crusher as its primary operational unit. Through an in-depth analysis of its kinematic characteristics, structural integration advantages, and adaptability across perse operating conditions, this study provides a technical reference for the selection and design of small-to-medium-scale primary crushing production lines.
Mobile Jaw Crusher PDF, Download ↓↓↓
I. The Main Unit: Technical Characteristics of the PE600x900 Double-Toggle Jaw Crusher
As a core operational component for primary crushing, the PE600x900 (commonly referred to in the industry as the "69 Jaw Crusher") derives its technical advantages from its mature double-toggle mechanism design:
1. Kinematic Mechanism: This main unit employs a double-toggle structure in which the movable jaw is suspended from an eccentric shaft. Driven by the eccentric throw, the movable jaw generates not only a horizontal crushing displacement perpendicular to the fixed jaw but also a simultaneous vertical motion that facilitates material discharge. This complex trajectory effectively increases the material throughput per unit of time.
2. Crushing Chamber Design: The "V-shaped" crushing chamber—optimized through topological analysis—features a scientifically designed "Gripping Angle," ensuring that stones with a maximum diameter of 500 mm are rapidly gripped and engaged. The deep-chamber design effectively prevents material slippage during the crushing process, thereby enhancing the crushing ratio.
3. Dynamic Balance: The 55 kW rated power output, coupled with a flywheel possessing high rotational inertia, effectively balances the pulsating loads generated during the crushing process. This ensures that the motor's power output remains stable even when processing ores with high compressive strengths (e.g., $\leq$ 320 MPa).
Mobile Jaw Crusher
II. The Mobile Crushing System: Advantages of Integrated Mechanical, Electrical, and Hydraulic Design
Integrating the PE600x900 onto a mobile platform—whether wheel-mounted for towing or crawler-mounted for self-propulsion—represents a paradigm shift in mechanical design, transitioning from "fixed-station" layouts to "modular, mobile" configurations:

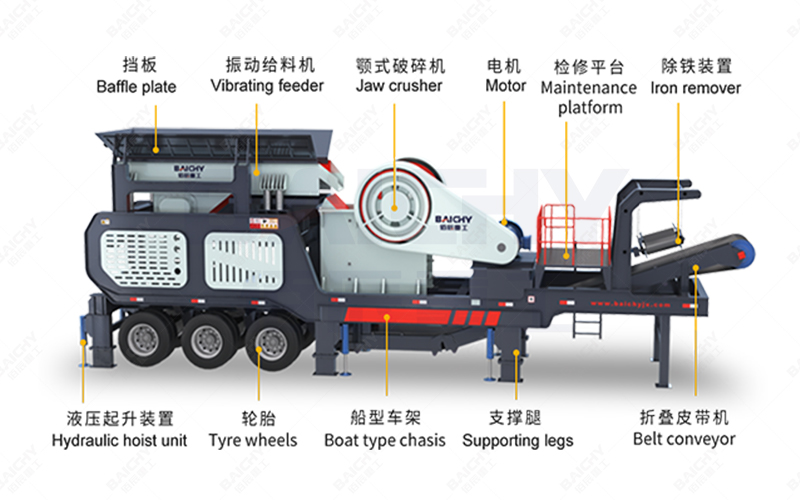

Mobile Jaw Crushing Station Structure Diagram
Structural Compactness and Stress Distribution: The frame of the mobile crushing station has been optimized using Finite Element Analysis (FEA) to enhance structural rigidity while simultaneously reducing the unit's overall weight. The vibrations generated by the main unit—the PE600x900 crusher—are transmitted to the chassis via a high-damping vibration isolation system, thereby safeguarding the integrated electronic control unit.
Process Automation: The mobile station integrates a ZSW-series vibrating feeder. Through Variable Frequency Drive (VFD) control, this feeder establishes a closed-loop feedback mechanism with the PE600x900 based on its load status, effectively preventing overloading and maintaining a constant feeding rate.
Logistics Optimization: By deploying the crushing unit directly at the working face, the mobile crushing station drastically reduces the internal transport distance for raw ore. This aligns with the "simultaneous mining, processing, and backfilling" green circular economy philosophy embraced by modern mining operations.
III. Performance Analysis Under Typical Operating Conditions
1. Primary Mining Crushing: When processing igneous rocks such as granite and basalt, the PE600x900 demonstrates exceptional wear resistance and impact strength.
2. Urban Renewal (Solid Waste Processing): When handling construction waste containing concrete blocks and steel rebar, the mobile jaw crusher utilizes a pre-screening function to filter out fine materials; its powerful crushing force enables the effective separation of steel rebar from concrete.
3. Operation in Confined Spaces: The mobile station requires no permanent civil engineering foundations, occupying a footprint of only 30%–40% compared to traditional stationary plants. This makes it particularly well-suited for linear-layout operations, such as mountain road construction projects.
IV. Conclusion and Outlook
The mobile jaw crusher—centered around the PE600x900 main unit—achieves a harmonious balance between high performance and high mobility through the fusion of classic mechanical structures and modern integration technologies. In the future, with the deep integration of advanced sensor technology and remote monitoring systems, such equipment is poised to evolve toward greater intelligence and energy efficiency.
V. Working Principles of the Mobile Jaw Crushing Station
The Mobile Jaw Crushing Station is not merely a standalone crusher, but rather a highly integrated, modular crushing system. Its operational principles are grounded in the core logic of "on-site material processing and integrated process workflow." From the perspective of engineering mechanics and system integration, the operating principle can be broken down into the following four sequential stages:
1. Collaborative Feeding & Pre-screening Stage
Materials are fed into the receiving hopper by an excavator or loader and enter the system via a vibrating feeder located at the bottom.
• Frequency Regulation: The feeder generates directional vibratory forces through an exciter mechanism, ensuring that materials slide into the crushing chamber at a uniform and continuous rate.
• Pre-screening Function: The front end of the feeder is typically equipped with grizzly bars; fine soil and small stones smaller than the bar spacing fall directly onto the conveyor belt beneath—or are discharged via a side conveyor—bypassing the crushing chamber entirely. This process reduces the ineffective load on the main crusher, prevents "over-crushing," and enhances the system's overall throughput.
2. Core Crushing Stage
This constitutes the core of the system and is typically configured with a PE600x900 jaw crusher.
• Power Transmission: An onboard electric motor (or hydraulic motor) drives the eccentric shaft to rotate via V-belts.
• Material Crushing: Driven by the eccentric shaft, the movable jaw plate executes a complex reciprocating motion relative to the fixed jaw plate. When the two jaw plates move closer together, materials within the "V-shaped" crushing chamber are crushed through a combination of compression, splitting, and fracturing; when the movable jaw retracts, materials that have reached the required discharge size exit through the discharge port under the force of gravity.
• Discharge Adjustment: Mobile stations are typically equipped with hydraulic or mechanical adjustment mechanisms that allow for rapid modification of the discharge opening gap to accommodate varying finished product specifications.
3. Integrated Conveying & Iron Removal Stage
The crushed materials fall onto the main conveyor belt located beneath the machine frame.
• Modular Conveying: The conveyor belt typically features a foldable structure to facilitate easy transport between sites.
• Impurity Separation: For specialized applications—such as construction waste processing—a magnetic separator is often suspended above the main conveyor belt. Utilizing a powerful magnetic field, it automatically extracts metallic foreign objects (such as rebar and iron nails) mixed within the material stream. This serves to protect downstream secondary crushing equipment and enhances the purity of the final product.
4. Power Drive & Intelligent Control Stage (Power & Control)
The "brain" and "heart" of the mobile station drive the entire operational workflow:
Power Solutions:
• Dual-Power (Electric/Diesel): In locations where grid electricity is available, the unit can be powered by an external mains supply, offering an economical and eco-friendly solution.
• Self-Contained Power: In remote mining sites, an onboard diesel generator set powers the entire station's electromechanical and hydraulic systems.
• PLC Automation Control: Sensors continuously monitor real-time parameters such as crushing chamber pressure, conveyor belt load, and bearing temperatures. The PLC system automatically adjusts the feeding frequency based on load conditions to achieve optimal efficiency through "full-chamber operation." It also incorporates emergency safety functions (e.g., automatically shutting down or adjusting the discharge opening upon encountering uncrushable objects).

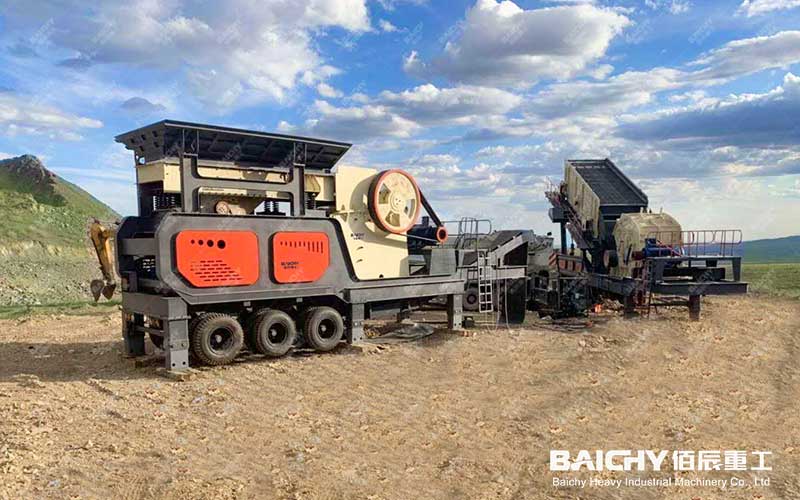

Combined-mobile-jaw-crushing-station-site
VI. Frequently Asked Questions (FAQ)
Q1: What is the service life of the wear parts on the PE600x900 mobile jaw crusher when processing high-hardness materials?
A: The moving and fixed jaw plates of the PE600x900 model are manufactured from high-manganese steel. When processing hard rock materials—such as granite—their service life is influenced by the material's silica content and moisture level. Additionally, the mobile station is equipped with an automated lubrication system that effectively extends the fatigue life of the eccentric bearings and various articulated joints.
Q2: What are the differences between the wheeled mobile station and the crawler mobile station when configured with the PE600x900 crusher?
A: The wheeled mobile station is towed by a semi-trailer; it is ideal for long-distance road transfers between sites and places minimal demands on road surface conditions. The crawler mobile station is self-propelled; it is better suited for short-distance movements within mining sites (e.g., between working faces) and for navigating inclines, offering superior on-site maneuverability.
Q3: How is the energy utilization efficiency of this system optimized?
A: The system supports a "Dual-Power" (Electric/Diesel) operating mode. In operating scenarios where grid connection is available, electric power is prioritized to reduce operating costs and carbon emissions; in remote scenarios, power is supplied by an onboard generator set.
