Looking for the Best Mobile Impact Crusher for Construction Waste Recycling?

Choosing a Mobile Impact Crusher for C&D Recycling

In today's rapidly accelerating urbanization process, the volume of construction waste is growing exponentially. How to efficiently, environmentally, and economically process this solid waste has become a focal point of concern for both the industry and society. Traditional methods of dumping and landfilling not only occupy land and pollute the environment but also represent a huge waste of resources. Against this backdrop, construction waste recycling and resource utilization have become an inevitable trend. In this transformation of turning waste into treasure, mobile impact crushers, with their superior performance, are becoming the preferred core equipment for many processing companies.

Unique Challenges of Construction Waste Crushing

Construction waste has a complex composition, typically including concrete blocks, bricks and tiles, mortar, asphalt blocks, metal, and wood. Unlike crushing natural ore, it faces several core challenges:

1. Uneven composition: The materials have varying hardness and sizes, requiring equipment with good adaptability and iron protection.

2. Site limitations: Production points are scattered, and relocation is frequent, making the construction of fixed production lines costly and inflexible.

3. High finished product requirements: Recycled aggregates need to meet certain particle shape and cleanliness standards to be used in brick making, road base layers, etc., achieving high-value utilization.

4. Environmental pressure: On-site operations require control of dust and noise.

While traditional jaw crusher + cone crusher solutions can process the waste, they are insufficient in particle shape control and the separation of lightweight materials (such as wood blocks). The emergence of mobile impact crushers has specifically addressed these problems.

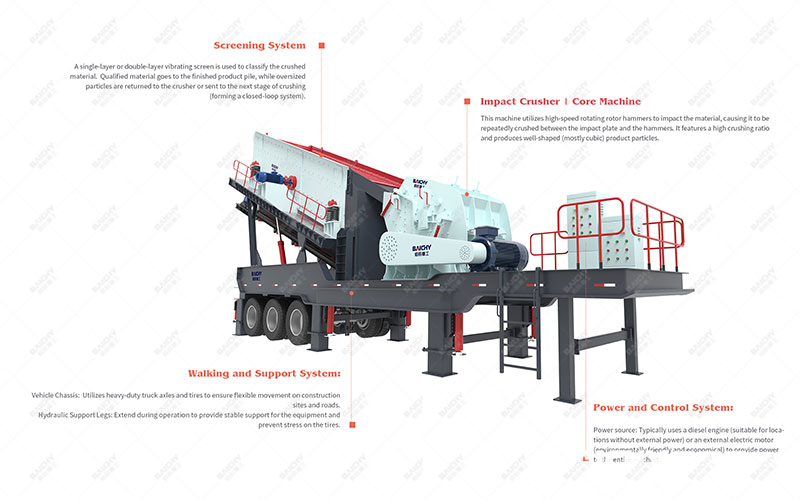

Structural-diagram-of-a-wheeled-mobile-impact-crushing-plant

What is a Mobile Impact Crusher?

A mobile impact crusher integrates an impact crusher, feeder, vibrating screen, and conveyor onto a mobile chassis (available in wheeled and tracked versions), forming a complete crushing and screening unit. It combines the excellent particle shaping capabilities of an impact crusher with the flexibility and convenience of a mobile station, creating an on-site processing plant that can crush wherever it goes.

Its core working principle is to use high-speed rotating rotor hammers to impact the material, causing the material to repeatedly collide between the impact plate and the hammers, thereby obtaining high-quality recycled aggregates with a cubic shape, few sharp edges, and low needle-like and flaky content.

Core Advantages: Why is it the Best Partner for Construction Waste Recycling?

Based on our 20 years of experience in equipment manufacturing and market application, we have summarized five irreplaceable advantages of mobile impact crushers in construction waste processing:

1. Excellent finished product shape: The stone-on-stone and stone-on-metal crushing principles of the impact crusher produce aggregates with excellent particle shape. This is crucial for applications such as recycled concrete and stabilized base layers, improving product compressive strength and market value.

2. Strong site adaptability: The integrated mobile design requires no foundation or fixed installation, allowing for quick deployment to demolition sites and construction waste disposal areas. This enables on-site material processing, significantly reducing transportation costs and traffic pressure on the surrounding environment.

3. Efficient rebar separation capability: With a well-designed crushing chamber, the equipment can effectively separate and eject rebar from concrete blocks, which can then be easily sorted using magnetic separators or manually, improving the purity of the aggregate and the revenue from recycled metal.

4. Simplified process, perse products: Most mobile impact crusher units are equipped with pre-screening or double-layer screening systems, which can pre-screen out soil and simultaneously produce multiple grades of aggregate (e.g., 0-5mm, 5-10mm, 10-31.5mm), meeting the needs of different customers.

5. Fast return on investment: Eliminating the civil engineering costs of a fixed plant and material transfer fees, a single unit can form a production line, allowing for quick project deployment and revenue generation, making it particularly suitable for small to medium-sized or decentralized processing projects.

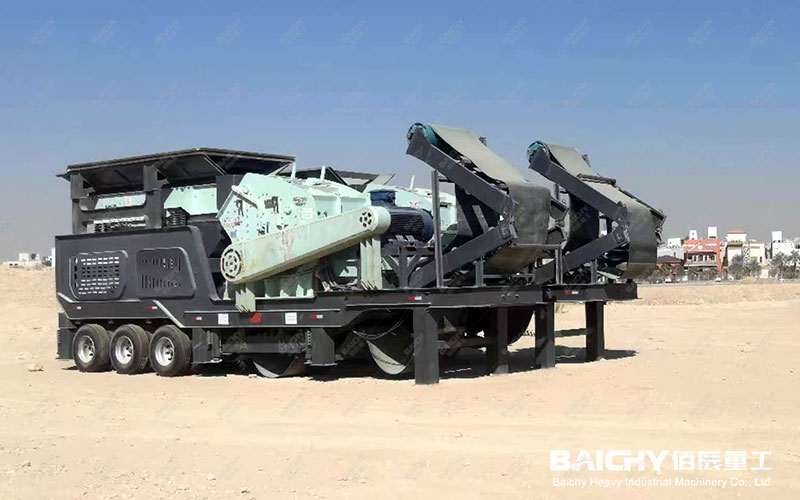

Mobile-impact-crusher-shipped

Case Study Sharing

Project Background: A city in East China had an old city renovation project requiring the processing of approximately 200,000 tons of construction waste. The site was small and the clearing and processing needed to be completed within 6 months.

Solution: We provided the client with a crawler-mounted mobile impact crushing plant. The crawler chassis is more suitable for navigating muddy and uneven demolition sites. The equipment was configured with a heavy-duty bar feeder to pre-screen out some fine soil and debris; the wear resistance of the rotor and hammer was strengthened to withstand the impact of rebar.

Operating Results: The equipment operated directly on the demolition site, crushing large concrete blocks and brick walls into four grades of aggregate ranging from 0-31.5mm. Among the materials processed, the 10-31.5mm aggregate was entirely purchased by nearby road construction projects for use as roadbed sub-base; the 0-10mm fine aggregate was used by brick factories to produce environmentally friendly bricks. The project not only finished ahead of schedule, but the client also achieved considerable economic benefits by selling the recycled aggregate and recovered scrap steel, realizing a win-win situation for both environmental protection and profitability.

Purchasing and Recommendation Advice

Choosing a suitable mobile impact crusher requires considering the following points:

• Processing capacity: Based on your project scale and timeline, choose a model with a processing capacity of 100-400 tons per hour.

• Driving method: Crawler-type is suitable for complex and rugged terrain, with full hydraulic drive and high intelligence; wheeled type is more convenient for relocation, relying on a tractor for towing, and is more economical for flat terrain.

• Core configuration: Pay attention to the diameter and length of the impact crusher rotor, the material and number of blow bars, and the driving power. Heavy-duty rotors can handle larger materials, and wear-resistant blow bars reduce long-term operating costs.

• Environmental design: Check if the equipment's spray dust removal system, sealing structure, and noise control are in place.

• Manufacturer experience: Choosing a manufacturer with 20 years of industry experience, like our company, ensures a more mature equipment design and a more comprehensive after-sales service network, providing you with comprehensive support from selection to maintenance.

Frequently Asked Questions (FAQ)

Q1: Can a mobile impact crusher process concrete beams containing a large amount of rebar?

A1: Yes. Professional mobile impact crushers are designed with a hydraulic opening device for easy handling of jammed materials, and the rotor has sufficient mass and speed to crush large concrete blocks. Rebar is usually effectively separated and discharged from the discharge port, but it is recommended to pre-cut large volumes of reinforced concrete to protect the blow bars and save energy.

Q2: Compared to a combination of a mobile jaw crusher and a mobile cone crusher, what are the advantages of a single mobile impact crusher?

A2: In construction waste processing, a single mobile impact crusher solution has lower investment costs, smaller footprint, and more flexible transportation, and the finished product particle shape is usually superior to that of a cone crusher. It is very suitable for processing concrete and asphalt blocks of medium hardness and below. If the material is extremely hard (such as granite demolition blocks), or if very high production rates are required, a two-stage combination of mobile jaw crusher + mobile impact crusher/cone crusher can be considered.

Q3: Are the maintenance costs of the equipment high?

A3: The main wear parts of the impact crusher are the blow bars and impact plates. Maintenance costs are directly related to the hardness and impurity content of the material. Choosing equipment equipped with high-quality wear parts and an easy-to-replace design (such as a hydraulically opened rear cover) can significantly reduce downtime and labor costs. Our equipment uses a modular wear part design and we provide original wear parts to ensure long-term operational efficiency for our customers.

Q4: How is the output particle size adjusted?

A4: This is mainly achieved by adjusting the rotor speed and the gap between the impact plates and the blow bars. Modern advanced mobile impact crushers can easily adjust the impact plate gap through a hydraulic system or electric motor, and even fine-tune it while in operation, making operation simple.

In the field of construction waste recycling, which offers both social and economic benefits, choosing the right equipment is the cornerstone of success. Mobile impact crushers, with their excellent particle shape shaping capabilities, unparalleled site flexibility, and efficient operation, have become the standard solution for small and medium-sized construction waste recycling projects.

As a mobile crushing equipment manufacturer with 20 years of professional experience, we not only provide stable and reliable equipment but are also committed to providing customers with a complete set of processing solutions tailored to their specific project needs. If you are planning a construction waste treatment project, please feel free to contact us, and let our professional technical team customize the best crushing solution for you.
