How to Achieve High-Capacity Grinding with Maximum Uptime?

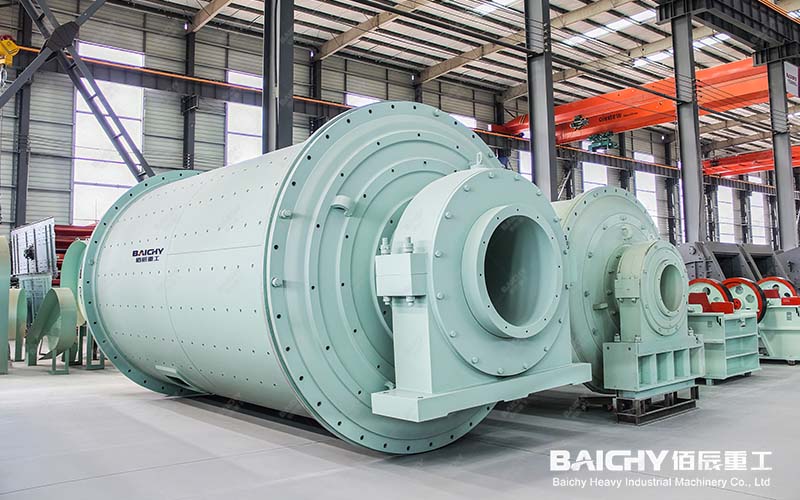

Long Working Life Wet Ball Mill - Large Capacity Grinding

In many industrial sectors such as mineral processing, building materials, and chemicals, grinding is a core element determining production efficiency and final product quality. Faced with continuously increasing production demands, large-capacity grinding has become an inevitable trend in industry development. However, to achieve stable, efficient, and low-cost large-scale grinding operations, the core of the equipment lies not only in its size but also in its durability. Long-life wet ball mills are key equipment designed to solve this core contradiction. They combine robust structural design, advanced materials science, and mature wet processing technology to ensure unparalleled durability and continuity when handling large-scale material processing.

Why is long lifespan the soul of a large wet ball mill?

Equipment reliability is the lifeline of production.

For grinding production lines with processing capacities of hundreds or even thousands of tons, any unplanned downtime means huge economic losses. Long-life design directly affects the production line's operating rate. Frequent failures of a single core grinding unit can cause the entire production line to stop, resulting in capacity losses, energy waste, and maintenance costs that severely erode project profits. Therefore, investing in a durable wet ball mill is essentially an investment in the stability and predictability of the entire production system.

Long Working Life Wet Ball Mill - Large Capacity Grinding

Reducing Total Life Cycle Operating Costs

From a long-term operating perspective (TCO, Total Cost of Ownership), the initial purchase cost of the equipment is only the tip of the iceberg. Long-life wet ball mills significantly extend the replacement cycle of core wear parts by using high-wear-resistant liners, forged alloy steel balls, heavy-duty rolling bearings, and optimized transmission systems. This means:

• Lower maintenance frequency and spare parts costs

• Less production downtime

• Better long-term energy efficiency (maintaining stable operating efficiency over the long term)

Core Advantages of Long-Life, High-Capacity Wet Ball Mills

A culmination of structural design and materials science

Leveraging 20 years of manufacturing experience, we have reinforced key areas. The cylinder is welded from high-quality steel plates and undergoes stress-relief treatment to ensure no deformation under long-term heavy loads. The liners use high-chromium alloys or rubber materials, selected according to the characteristics of different grinding materials, improving wear resistance by more than 50%. The application of large double-row self-aligning roller bearings offers high load-bearing capacity, low frictional torque, and a lifespan far exceeding that of traditional sliding bearings.

Superior Grinding Efficiency and Stability

Large capacity does not equate to low efficiency. Through a scientifically designed cylinder length-to-diameter ratio, rational chamber partitioning, and precise grinding ball gradation, the mill ensures optimal material residence time and grinding trajectory, achieving highly efficient particle size reduction. The continuous wet grinding process, combined with an advanced hydraulic or clutch-assisted starting system, allows for smooth start-up and operation even under full load, minimizing impact on the power grid.

Intelligent Operation and Maintenance & Condition Monitoring

Modern long-life ball mills can integrate online monitoring devices, such as bearing temperature monitoring, vibration monitoring, noise analysis, and lubricating oil condition monitoring. Data-driven early warning enables predictive maintenance, intervening before potential failures occur and transforming unplanned downtime into planned maintenance—the intelligent guarantee for a long lifespan.

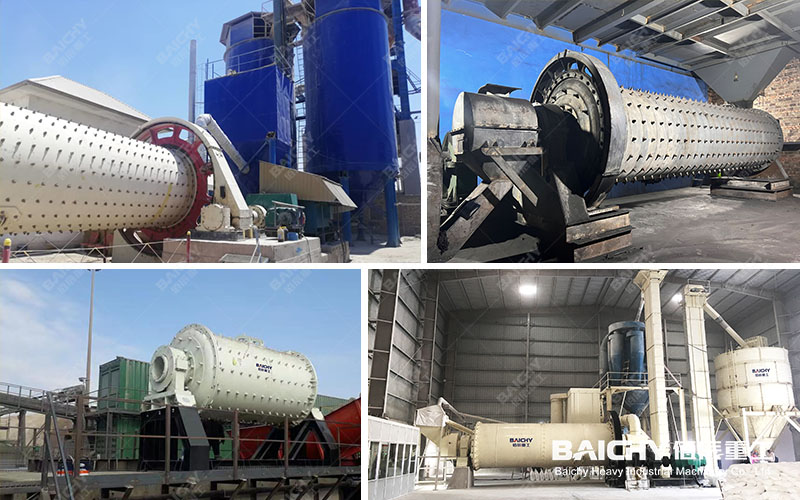

Ball mill customer site

Success Story: Application at a Large Iron Ore Beneficiation Plant

Background: The client processes 10,000 tons of raw ore daily, with extremely high requirements for grinding fineness and stability. The previously used ball mill liners wore out quickly, requiring frequent maintenance.

Solution: We provided two large Φ4.5×6.5 meter wet ball mills, configured with special high-chromium alloy liners and forged steel balls specifically for iron ore grinding characteristics.

Results:

• Single-unit processing capacity reached 120% of the expected capacity, achieving the large-capacity grinding goal.

• Liner lifespan extended from 8 months to 18 months, and equipment continuous operation rate increased by over 30%.

• Overall power consumption per ton of ore grinding decreased by approximately 15%, bringing significant long-term economic benefits to the client.

Related Equipment Recommendations

To achieve optimal grinding system performance, we recommend using the long-life wet ball mill in conjunction with the following equipment:

• High-efficiency hydrocyclone assembly: Forms a closed-loop grinding cycle, improving classification efficiency and preventing over-grinding.

• Heavy-duty plate feeder: Ensures uniform and stable feeding to the ball mill, serving as the first line of defense for equipment protection.

• Intelligent lubrication system: Provides timely, metered, and clean lubricating oil to large bearings and gears, acting as the blood system for extending the lifespan of core transmission components.

Frequently Asked Questions

FAQ 1: What are the main differences between wet and dry ball mills in terms of pursuing long service life and large capacity?

Wet ball mills rely on water flow to transport materials, combining grinding and conveying functions. The high humidity inside the mill effectively reduces dust and lowers operating temperature, which is beneficial for protecting mechanical parts and reducing wear. At the same time, wet milling typically results in less over-grinding, better material flowability, and is more suitable for continuous operation with high throughput and fineness requirements. Its overall operating environment is more conducive to achieving long service life and stable operation with large capacity.

FAQ 2: How to determine if a wet ball mill has the potential for a long service life?

The key is to examine the materials and design of the core components: First, check the liner material (e.g., high chromium alloy content, toughness); second, check the machining precision and material of the large gear (usually cast steel); third, check the model and brand of the main bearing (load capacity and design life); fourth, check the welding process and heat treatment level of the cylinder. Furthermore, the manufacturer's accumulated expertise and successful case studies are the best evidence.

FAQ 3: What are the key points for daily maintenance to extend the life of existing wet ball mills?

• Lubrication is the lifeline: Regularly check and replace standard-compliant gear oil and bearing grease to ensure unobstructed oil passages.

• Tightening and inspection: Regularly tighten the anchor bolts and liner bolts to prevent loosening and damage.

• Listening and observation: Pay attention to whether the sound during operation is smooth, observe whether the current is stable, and promptly detect abnormal vibrations.

• Scientific ball loading: Regularly clean out worn steel balls and replenish with new balls according to the specified gradation to maintain optimal grinding efficiency and indirectly reduce irregular wear of the liner.
