Φ800×2500 Heavy-Duty Center-Fed Double-Toothed Roll Crusher
For laterite nickel ore—characterized by moisture content as high as 30% and a high tendency to cause clogging—the Φ800×2500 heavy-duty center-fed double-toothed roll crusher offers a breakthrough solution for ensuring continuous, efficient mining operations. While traditional crushers often suffer from chamber clogging, bearing seizures, and severe wear when processing high-moisture laterite nickel ore, this model employs a shearing and tensile crushing mechanism, patented intelligent crushing components, and replaceable wear-resistant tooth caps and scrapers. It successfully crushes large feed blocks (up to 750mm) with 30% moisture content down to under 190mm, boosting system stability and output by over 35% and significantly reducing lifecycle maintenance and downtime costs.
I. Why choose a toothed roll crusher for laterite nickel ore?
In major laterite nickel ore-producing regions like Indonesia and the Philippines, mine owners and equipment manufacturers face two critical challenges: clogging and rapid wear.
1. Clogging and chamber fouling during the rainy season
Laterite nickel ore contains significant clay components, and the run-of-mine ore typically has a moisture content of 20%–35%. When using traditional jaw or cone crushers, the material adheres to the crushing chamber like dough, quickly causing the chamber to clog and potentially triggering overload shutdowns. For a production line with a daily capacity of 5,000 tons, clearing a single clog requires 2–4 hours of manual labor, resulting in direct economic losses of tens of thousands of US dollars per day.
2. Rapid wear of consumable parts and cumbersome replacement
Hard components embedded in the laterite nickel ore cause severe wear on the crushing teeth. With integral crushing rolls, once the tooth tips wear down significantly, the entire roll must be removed and replaced or repaired via on-site welding; this process demands high technical expertise and results in downtime lasting 3–5 days.

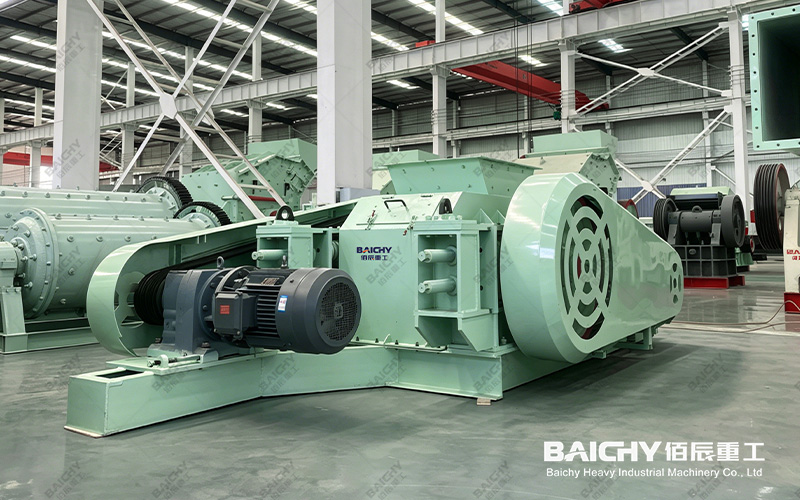

Toothed Roll Crusher
II. Key Specifications of the Φ800x2500 Model
We avoid piling up meaningless data; instead, we translate the equipment's core technical features into direct financial benefits for your bottom line:
| Core Technical Features | Technical Specifications | Customer ROI |
| Heavy-duty dual-toothed roll configuration | Diameter: 800mm; Length: 2.5m | Delivers immense torque and a massive bite area, capable of directly processing 750mm boulders without the need for secondary blasting or manual breaking; reduces the comprehensive cost of primary crushing by 22% per ton. |
| Patented intelligent crushing assembly | Patented tooth pattern & hydraulic protection | Employs a crushing mechanism combining shearing and tensile forces to significantly reduce fines and improve aggregate grading compliance; automatically retracts and resets upon encountering hard iron nodules to protect the drive shaft, saving over $8,000 in annual maintenance costs. |
| Replaceable wear-resistant tooth caps | Segmented, high-wear-alloy tooth caps | Eliminates the need to replace the entire roll when tooth tips wear down; allows for rapid, modular on-site replacement of inpidual teeth, cutting downtime from 3–5 days to under 4 hours and recovering approximately 15 days of production capacity annually. |
| Adjustable, interchangeable scrapers | Active anti-stick cleaning system | Scrapers automatically conform to the roll surface to remove excess sticky material, maintaining a clean crushing chamber even with wet, cohesive feed (moisture content up to 30%); completely eliminates downtime risks caused by material clogging, ensuring continuous 24-hour operation during the rainy season. |
III. Performance Specifications: Φ800×2500 Center-Feed Crusher
| Parameter Name | Specification Data | Industry/Project Standard Reference |
| Crushing Roll Diameter (mm) | 800 | Standard for medium-to-heavy-duty primary/secondary crushing |
| Crushing Roll Length (mm) | 2500 | Ensures high throughput; prevents discharge accumulation |
| Max. Feed Size (mm) | 750 | Seamlessly accommodates direct feeding from high-tonnage excavators |
| Discharge Size (mm) | < 190 | Suitable for downstream stockpiling, transport, and subsequent grinding |
| Max. Material Moisture Content | 30% | Industry-leading; handles ultra-wet Indonesian rainy-season nickel laterite with ease |
| Crushing Mechanism | Patented intelligent shear-and-stretch design | Optimizes particle shape; minimizes over-crushing |
| Manufacturing Standards | ISO9001, CE, GB/T | Meets rigorous international mining safety and compliance standards |
IV. Selection Recommendations: Who Should Buy This Equipment?
Recommended Scenarios
1. Open-pit mining and primary crushing projects for nickel laterite in high-rainfall regions (e.g., Indonesia, the Philippines, New Caledonia).
2. Technical upgrade projects requiring continuous operation with high-moisture (15%–30%) and high-stickiness materials (e.g., wet clay, lignite, soft iron ore).
3. Medium-to-large mineral processing plants requiring daily outputs of 3,000–8,000 tons and seeking to reduce maintenance downtime for wear parts while increasing equipment uptime.
Non-Recommended Scenarios
1. Extremely hard, abrasive rock with a Mohs hardness > 7 (e.g., granite, basalt, quartzite; we recommend Baichy Heavy Industry’s PEV series European-style jaw crusher or HP series cone crusher).
2. Fine crushing or sand-making stages requiring extremely fine product sizes (e.g., discharge ≤ 10mm).
Frequently Asked Questions
Q1: Why do traditional jaw crushers frequently jam when processing laterite nickel ore with 30% moisture content?
A1: Jaw crushers rely on a compression crushing mechanism. High-moisture, high-viscosity laterite nickel ore compacts like modeling clay under pressure and adheres to the moving and fixed jaw plates, preventing material flow and causing the crushing chamber to clog (or "blind"). In contrast, the Φ800×2500 center-type crusher utilizes a "shear plus tension" principle and features adjustable, interchangeable active scraper plates at the bottom. These plates strip away and discharge the material before it can stick or jam, ensuring clog-free operation.
Q2: How long is the downtime required to replace the wear-resistant tooth caps? Is it necessary to hoist out the crushing roll?
A2: There is absolutely no need to hoist the crushing roll. Baichy Heavy Industry employs a patented bolted segmental structure. When a tooth cap wears out, technicians simply use standard tools inside the crushing chamber to loosen the fasteners, remove the old cap, and install a new one. Replacing a single tooth takes an average of only 15 minutes, and a full set can usually be replaced within 4 hours. This saves over 90% of downtime compared to traditional methods involving full-roll resurfacing or hoisting.
Q3: Do the scraper plates wear out quickly when crushing wet, sticky nickel ore? How are they adjusted?
A3: Our scraper plates are made of highly wear-resistant composite alloy steel, engineered specifically for extreme wear environments. To manage long-term wear, the plates feature an adjustable mechanism; technicians can compensate for the gap externally based on wear levels, maintaining the optimal, minimal clearance for effective scraping. Additionally, the plates feature an interchangeable, symmetrical design (left/right and front/back); they can be flipped over for continued use after localized wear, effectively doubling their service life and significantly reducing procurement costs.
Q4: Can this center-type crusher handle hard rocks or iron nodules occasionally mixed in with the laterite nickel ore?
A4: Yes, it can. The Φ800×2500 crusher is equipped with a patented, intelligent crushing detection and safety retraction system. When uncrushable hard debris (such as large foreign objects, drill bits, or high-hardness iron nodules) enters the crushing chamber, the hydraulic protection system automatically detects the overload and instantly widens the gap between the two rolls, allowing the debris to pass through harmlessly. The system then automatically resets to resume crushing, effectively preventing serious equipment failures such as shaft breakage or tooth damage.
Q5: What support can Baichy provide regarding supply and service for overseas laterite nickel ore projects?
A5: Baichy Heavy Industry maintains warehouses stocked with large quantities of commonly used wear parts (including tooth caps and scraper plates for this specific model) in key mining regions like Southeast Asia. Our team of international after-sales engineers is stationed overseas, providing "full lifecycle services"—including on-site installation and commissioning, localized operator training, regular inspections, and 24-hour online technical support—to ensure your production line maintains consistently high uptime.
