The Advantages of Wet Ball Mills in the Work
In-depth Analysis of the Topic "Ball Mills and Accessories"
In industries such as mineral processing, building materials, chemicals, and power generation, material grinding is a core process. Ball mills, as key equipment for crushing and grinding materials, directly impact the efficiency, energy consumption, and final product quality of the entire production line. However, a high-efficiency ball mill relies not only on advanced main unit design but also on a complete, high-quality, and compatible accessory system. We believe that "ball mills" and "accessories" form an inseparable organic whole, jointly constituting the cornerstone of stable production operation.
| Key Words | The Advantages of Wet Ball Mills in the Work |
|---|---|
| Product Model | Ball Mill |
| Feed Size | ≤25mm |
| Motor Power | 18.5-4500kw |
| Capacity | 0.65-615t/h |
| Core Functions | Grinding precision and particle size controllability |
| Brand | Baichy Heavy Industry |
| Packing | Standard containers，Nude Packing，Wooden boxes, etc |
| Installation | Engineer Guide |
| Factory visit | Welcomed Warmly |
| Export Countries | Southeast Asia, Central Asia, South America, North America, Africa |
| Payment | T/T,L/C payment,Paypal...etc |
| Please note: The above table data is for reference only. For specific information, please contact us. | |
Ball Mill Overview: Working Principle and Core Components
The basic working principle of a ball mill is to utilize the rotation of the cylinder to drive the internal grinding media (such as steel balls or forged steel) to impact and grind the material, thereby achieving the grinding purpose. Its core components mainly include:
• Cylinder: The main body of the equipment, lined internally with protective plates that affect grinding efficiency.
• Feeding and Discharging Device: Controls the uniform entry and exit of materials.
• Transmission System: Includes motor, reducer, and large and small gears, providing power.
• Bearings: Support the smooth rotation of the mill cylinder.
Each core component corresponds to a series of key ball mill accessories.
Core Advantages of High-Quality Ball Mills and Accessories
Choosing high-quality ball mills and accessories can bring long-term economic benefits to enterprises:
Improved Grinding Efficiency and Capacity
Optimized liner shape and high-quality grinding balls improve the movement efficiency of the grinding media, resulting in more thorough material grinding, thereby directly increasing hourly output and reducing unit product energy consumption.
Ensuring Long-Term Stable Equipment Operation
Wear-resistant liners, gears, and highly reliable bearings significantly reduce unplanned downtime, lower failure rates, and ensure continuous and stable operation of the production line, which is crucial for 24-hour uninterrupted operation of a mineral processing plant.
Reduced Overall Operating Costs
While the initial investment in high-quality components may be slightly higher, their extended service life translates to lower replacement frequency and maintenance costs, while also reducing production losses due to downtime, resulting in extremely high overall cost-effectiveness.

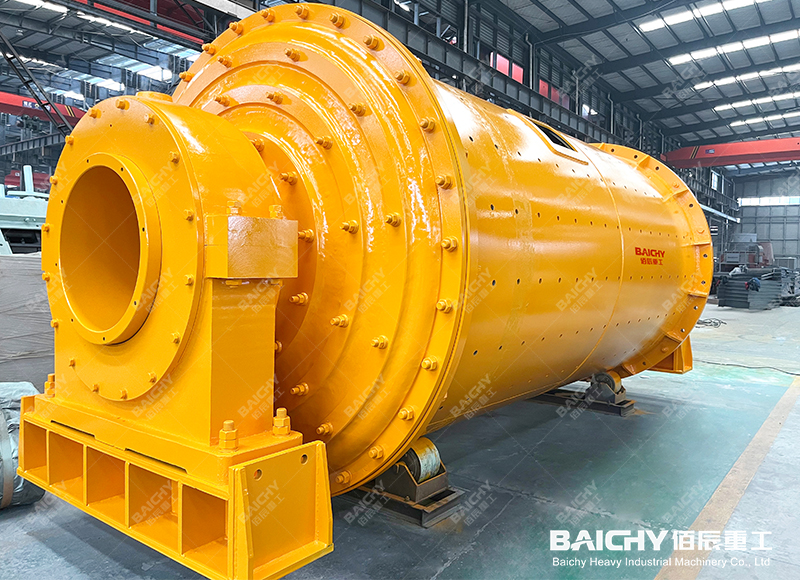

The Advantages of Wet Ball Mills in the Work
20 Years of Manufacturing Experience: Our Success Stories
Our 20 years of industry experience have accumulated extensive expertise in ball mill and component customization and solutions. For example, we once upgraded the Φ3.6x6.0 meter ball mill for a large iron ore beneficiation plant in East China. The original factory-installed liners wore out quickly, requiring complete replacement every 4-5 months, severely impacting production. We custom-designed high-chromium alloy double-wave liners and matching wear-resistant steel balls. After the upgrade, the liner service life was extended to over 12 months, power consumption per ton of ore grinding decreased by approximately 8%, and annual cost savings exceeded one million yuan. This fully demonstrates the amplifying effect of matched, high-quality components on overall machine performance.
Recommended Accessories
To ensure your ball mill is always in optimal condition, we highly recommend the following key accessories:
1. Wear-Resistant Liners
◦ High-manganese steel liners: Good impact resistance and toughness, suitable for medium to high impact conditions.
◦ High-chromium alloy liners: High hardness and excellent wear resistance, suitable for fine grinding chambers and high-wear environments.
◦ Rubber/polyurethane liners: Good noise reduction and corrosion resistance, suitable for specific materials.
2. Grinding Media
◦ High/low-chromium cast balls: High wear resistance and low breakage rate, key to improving grinding efficiency.
◦ Forged steel balls: High impact force, commonly used in primary grinding chambers.
3. Transmission and Sealing Components
◦ Large and small gears: Made of high-quality alloy steel, precision machined and heat-treated to ensure smooth transmission.
◦ Feed inlet seals: Effectively prevent slurry and material leakage, protecting equipment and the environment.
Frequently Asked Questions (FAQ)
Q1: How do I determine if my ball mill liner needs replacement?
A1: Observe two main points: First, the wear thickness of the liner. When the liner wears down to 60%-70% of its original thickness, replacement should be considered to prevent wear on the mill cylinder. Second, output and energy consumption. If there is prolonged grinding time, decreased output, or abnormally high power consumption, it may also be a sign of liner failure.
Q2: When choosing steel balls, is higher hardness always better?
A2: Not necessarily. Excessive hardness may lead to decreased toughness of the steel balls, making them prone to breakage upon impact, which increases consumption and contaminates the product. A balance should be struck between hardness and toughness, taking into account the ball mill specifications, material hardness, and grinding fineness requirements. Generally, larger diameter ball mills or coarse grinding chambers can use steel balls with slightly higher toughness, while fine grinding chambers can use steel balls with higher hardness.
Q3: Can you provide non-standard sized ball mill accessories?
A3: Of course. This is an advantage based on our 20 years of experience. We have mature casting, machining and heat treatment production lines, and can accurately measure and produce according to the drawings or samples provided by customers, providing customized ball mill parts of various non-standard sizes and special materials.
Perfect after-sales service
Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.
The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
