What Are Jaw Crushers and How Do They Work? | Baichy Machinery

2023-03-07 09:47:17
Baichy
plays
Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

Jaw crusher is the first process of stone crushing production line, usually, it can be used for primary crushing or secondary crushing. It can crush any material whose compressive strength is below 320Mpa. The jaw crusher has an optimized crushing cavity, a heavy-duty eccentric shaft and a high-manganese steel jaw plate, which has the advantages of high efficiency, strong crushing capacity, and low investment cost.


Jaw Crusher Working Process and Wearing Parts

1. How does a jaw crusher work?

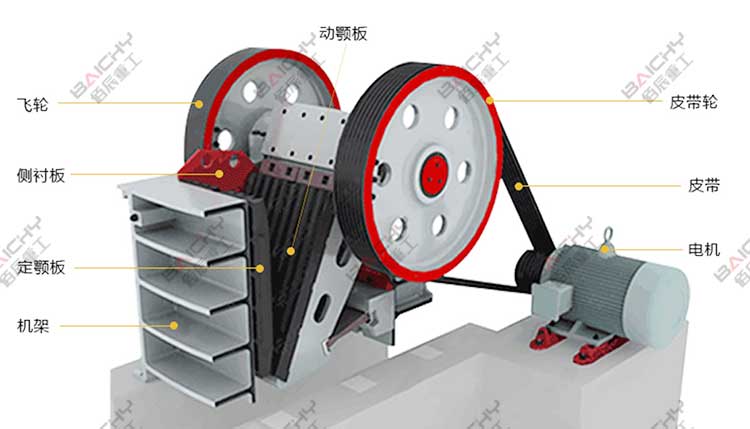

The motor transmits power through the belt and drives the moving jaw to make a periodic motion towards the fixed jaw by the eccentric shaft. The angle between the toggle plate and the moving jaw plate increases when the moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between the toggle plate and the moving jaw decreases when the moving jaw moves down, the moving jaw moves and leaves the fixed jaw by pulling the rod and spring, and the final crushed stuff will be discharged from the outlet.


2. About wearing parts

The wearing parts of the jaw crusher include a toggle plate, side guard plate, fixed jaw plate, movable jaw plate, toggle plate lining, etc. The jaw plate is the main working part and bears a large impact and extrusion force, so the wear rate is relatively high. Powerful, wearing parts need to be replaced regularly, choose wear-resistant materials to increase the life of the equipment. Baichy machinery is made of high manganese steel, which has good casting performance, wears resistance, and increases the stability of the equipment.

Why Choose Us?

Baichy Machinery is a factory supplier of mining machinery, mainly focusing on stone crushers, pulverizers, and mineral processing plants. And continue to strengthen research and development, optimize manufacturing processes, improve product quality, and upgrade service skills.

1. We can provide a complete set of equipment including crushing, screening, beneficiation, etc.

2. Our products have been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries.

3. We supply decent quality products, as well as the best solution design, professional technical support, and excellent after-sales service.
