In the increasingly competitive sand and gravel aggregate market, reducing per-ton costs, improving output quality, and ensuring the continuous and stable operation of the production line are core issues concerning the survival of every investor. The foundation of all this begins with the throat of the production line—the primary crushing equipment. Choosing a reliable jaw crusher means laying the foundation for high output and profitability for the entire project.

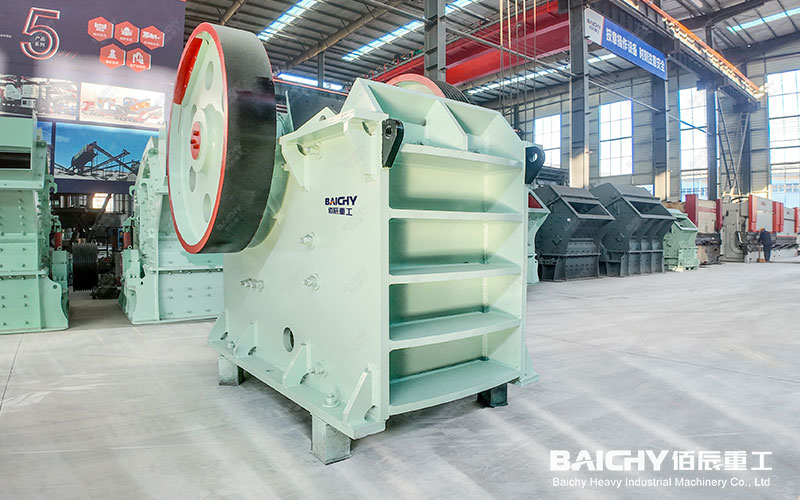

Today, we focus on a classic model that has withstood decades of market testing: the PE-600X900 primary rock jaw crusher. For small and medium-sized mines, quarries, and infrastructure construction projects with hourly output requirements of 90 to 180 tons, it is not only sufficient but also a model of ease of use and durability.
PE Jaw Crusher PDF,Download ↓↓↓
I. Analyzing the Stable Strength Behind 90-180 Tons/Hour
The model name of the PE-600X900 clearly reveals its core structure: the feed opening size is 600mm × 900mm. This means it can easily handle various medium-hard rocks (such as granite, basalt, and river pebbles) with a particle size not exceeding 500mm. Its processing capacity of 90-180 tons/hour is not an exaggerated peak, but a sustainable and achievable stable output range under different discharge port settings.
• Wide discharge port adjustment (75-200mm): Through the wedge adjustment system, operators can easily and quickly adjust the discharge particle size to meet the optimal feeding requirements of subsequent secondary crushing, offering extremely high flexibility.
• Powerful power core (55-75kW motor): Equipped with high-quality domestic or international brand motors, it provides ample and stable power, ensuring that the equipment remains powerful even when handling high-hardness materials or operating at full load, preventing jamming.
II. Why can it become a long-lived general on the production line?
The long-term operating cost (LTOC) of a piece of equipment is far more important than its initial purchase price. The ingenious structural design of the PE-600X900 is precisely to maximize the extension of equipment life and minimize downtime.
• Robust Frame Assembly: Manufactured from high-quality cast steel components using an integral welding process, resulting in a more stable structure, high fatigue strength, and the ability to withstand enormous crushing impacts.
• High-Manganese Steel Moving and Fixed Jaw Plates: Jaw plates are the core wear-resistant components of the crusher. The PE-600X900 uses ZGMn13 and other high-manganese steel materials, possessing extremely high wear resistance and impact resistance. After wear, they can be repaired through welding, significantly reducing the replacement cost of vulnerable parts.
• Optimized Crushing Chamber Shape: Utilizing a V-shaped symmetrical crushing chamber design, eliminating dead zones, effectively improving feeding capacity and output, while ensuring uniform crushing of materials within the chamber, reducing localized wear of the jaw plates and the content of needle-like and flaky particles in the product.
• Reliable Eccentric Shaft Bearings: Utilizing large, heavy-duty rolling bearings, offering strong load-bearing capacity and smooth operation, and employing a combination of labyrinth seals and grease seals to effectively prevent dust intrusion and ensure long bearing life.
III. The Unseen Cost-Effectiveness Far Exceeds Your Imagination
For investors, true cost-effectiveness is minimizing the sum of initial investment + operating and maintenance costs + downtime losses.
1. Moderate Initial Investment: As a technologically mature and mass-produced standard model, the PE-600X900 has a significant advantage in procurement cost, a relatively low investment threshold, and a short payback period.
2. Extremely Low Operating Costs: Simple structure and convenient maintenance. Wear parts (such as jaw plates) are highly versatile, easy to procure, and cost-effective. Low failure rate results in extremely high equipment uptime.
3. Wide Adaptability and High Resale Value: Its classic specifications make it highly sought after in the used equipment market, resulting in high residual value and providing investors with additional asset flexibility.
Conclusion: Choosing the PE-600X900 means choosing stability and reliability.
It may lack a fancy intelligent control system, but its robust durability, simple structure, convenient maintenance, and stable output have made it a silent but invaluable asset behind countless successful mining projects. In pursuit of both high efficiency and cost reduction, the PE-600X900 primary jaw crusher is undoubtedly a wise choice for building an efficient stone crushing production line.
We are not only an equipment supplier, but also a partner in your production solutions. Please feel free to contact us anytime for customized solutions and quotations tailored to your specific material and output requirements.
