How to Effectively Crush Sticky and High-Moisture Coal Without Blocking?

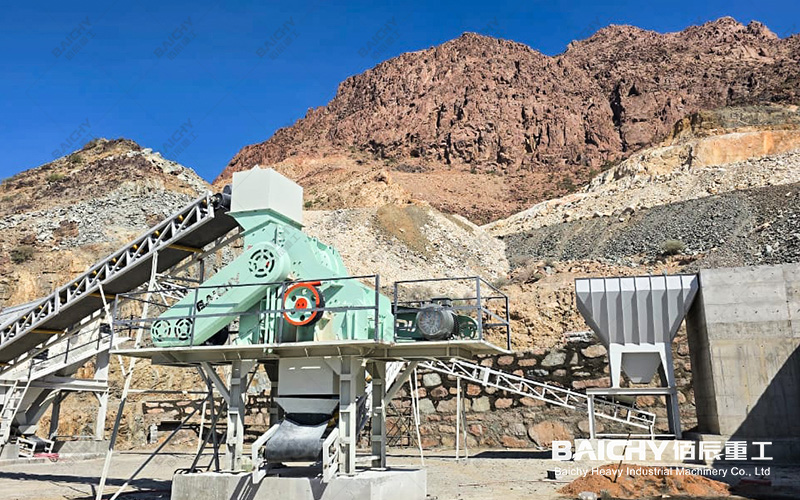

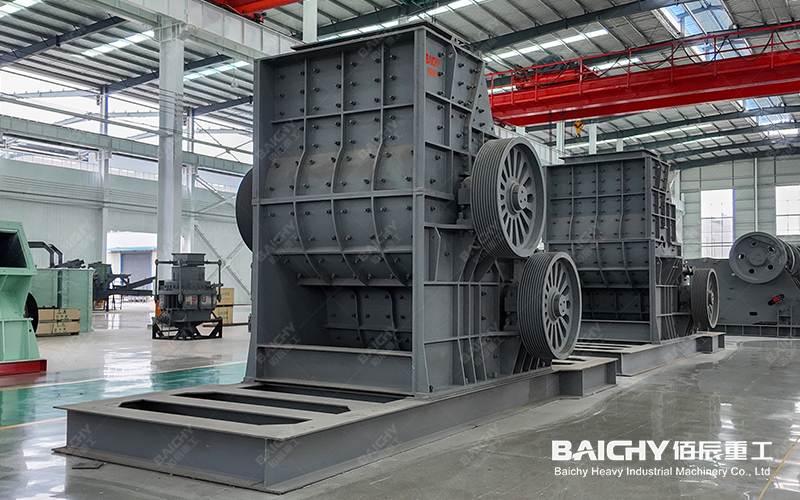

Two-stage wet coal crusher

In the production processes of mines, coal preparation plants, metallurgy, and chemical industries, the crushing of high-moisture materials has always been a major headache. Ordinary crushers are prone to clogging, sticking, and a sharp drop in efficiency, even equipment damage, when processing materials with a moisture content exceeding 8%, especially sticky wet coal. This not only severely impacts continuous production but also leads to huge maintenance costs and lost capacity.

At this point, a piece of equipment specifically designed to overcome this problem the two-stage wet coal crusher demonstrates its irreplaceable value. It doesn't simply crush the material twice; instead, it achieves efficient, energy-saving, and reliable continuous operation through a scientifically sound and rationally designed staged crushing concept.

I. How does the two-stage wet coal crusher work?

The essence of the two-stage wet coal crusher's design lies in its targeted approach. Its workflow can be clearly pided into two stages:

• First stage: Coarse crushing and screening stage. Large pieces of wet coal material enter the first-stage crushing chamber of the crusher through the feeder. This stage typically employs a crushing structure based on impact and compression (such as heavy-duty hammers). Its purpose is not to crush the material to its final particle size in one go, but rather to perform preliminary crushing and dissection of large pieces. More importantly, a special screen plate (or grid plate) is installed at the bottom of the first crushing chamber. Material of the required size is immediately screened out through the screen openings, thus avoiding repeated crushing within the machine and reducing dust and over-grinding. Large pieces that do not meet the particle size requirements are retained within the chamber.

• Second Stage: Fine Crushing and Shaping Stage. Large pieces of wet coal retained in the first crushing chamber are forcibly fed into the second crushing chamber by the rotor. This stage is more refined, often employing denser hammers or a special toothed roller structure to perform a slow and thorough final crushing of the material within a relatively confined space. Since most of the qualified material has already been screened out, the second stage can concentrate its efforts on dealing with the stubborn elements, ensuring uniform and controllable output particle size. The coordinated operation of the two crushing chambers effectively disperses the crushing pressure and greatly overcomes the sticky resistance of wet coal.

II. Why is it the ultimate solution for wet coal crushing?

1. Superior anti-clogging capability: This is its core advantage. The unique screen plate design and two-stage structure allow qualified materials to be discharged quickly, resulting in a short material residence time within the machine and smooth flow. This fundamentally solves the clogging problems of ordinary crushers, such as only in, no out or poor discharge.

2. Extremely high uniformity of output particle size: The pre-screening mechanism ensures that qualified materials are not repeatedly crushed within the machine, effectively controlling over-crushing and resulting in a uniform and consistent particle size in the final product, significantly improving the quality and market value of commercial coal.

3. Significant energy-saving and consumption-reducing effects: Traditional single-stage crushers require all materials to be crushed in one go, resulting in high energy consumption and low efficiency. Two-stage crushing achieves screening without crushing, only performing work on the materials that need to be crushed. System energy consumption can be reduced by more than 15%, resulting in significant long-term economic benefits. 4. Strong Adaptability and Reliability: Not only suitable for high-moisture, sticky coal, but also performs excellently for ores, limestone, gypsum, and other materials with a medium to low hardness. The equipment has a robust structure, key components are made of wear-resistant alloy materials, maintenance cycles are long, and overall operational reliability is high, providing a solid guarantee for continuous, large-scale production.

III. What Returns Will You Gain from Investing in a Two-Stage Wet Coal Crusher?

Choosing a suitable two-stage wet coal crusher is far more than just purchasing equipment; it's a comprehensive efficiency upgrade of your production line. You will benefit from:

• Increased Capacity: Continuous, clog-free operation brings the actual production line capacity close to its design capacity.

• Reduced Costs: Reduced downtime and labor costs caused by blockages, lowering maintenance and electricity costs.

• Guaranteed Quality: Uniform output particle size creates favorable conditions for subsequent washing, screening, and transportation processes, improving the final product's qualification rate.

• Enhanced Brand Image: A stable and efficient production line is the best proof of your company's technical strength and reliability.

In an increasingly competitive market environment, optimizing production details is key to reducing costs and increasing efficiency. The two-stage wet coal crusher, with its targeted design and superior performance, has successfully solved the global challenge of crushing high-moisture materials. For those choosing mining equipment, investing in such a high-efficiency and reliable machine is undoubtedly a wise strategic decision to propel their businesses towards intelligent and efficient production.

Perfect after-sales service

Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.

The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.

To prevent the rights and interests of customers from being infringed, Baichy Heavy Industry reminds customers: please contact our customer service staff through the official website of Baichy Heavy Industry , or add WhatsApp: 15093222637 ; or send an email to: [email protected] , we will get in touch with you as soon as possible and provide you with the most professional service in the industry.

Baichy Machinery is a factory supplier of mining machinery, mainly focusing on stone crushers, powder grinding mills, and mineral beneficiation plants. We can offer you a free design and completed solutions according to your project.

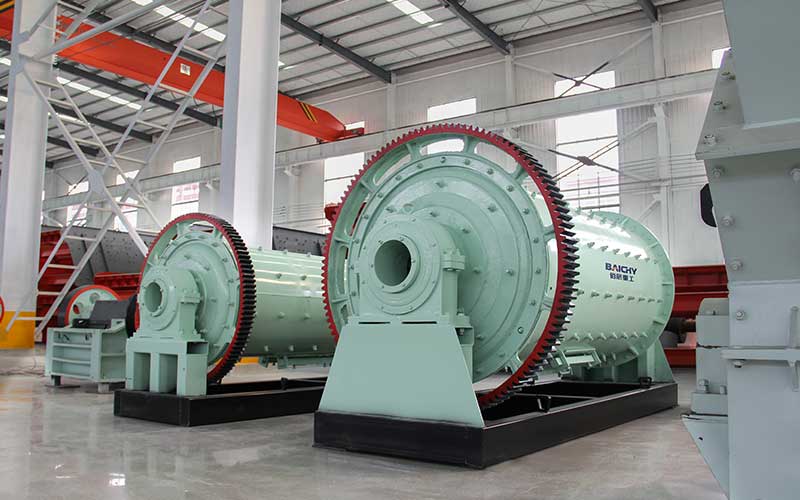

Baichy Heavy Industry has grown into a high-tech mining equipment comprehensive enterprise, integrating R&D, manufacturing, sales, and after-sales service, Passing ISO9001:2015 quality management system certifications. The main products are mobile jaw crushing plants, construction waste crushing plants, PE jaw crushers, VSI sand-making machines, Symons cone crushers, single-cylinder hydraulic cone crushers, PCX high-fine crushers, grinding mills, ball mills, and full sets of beneficiation equipment with an excellent level.
