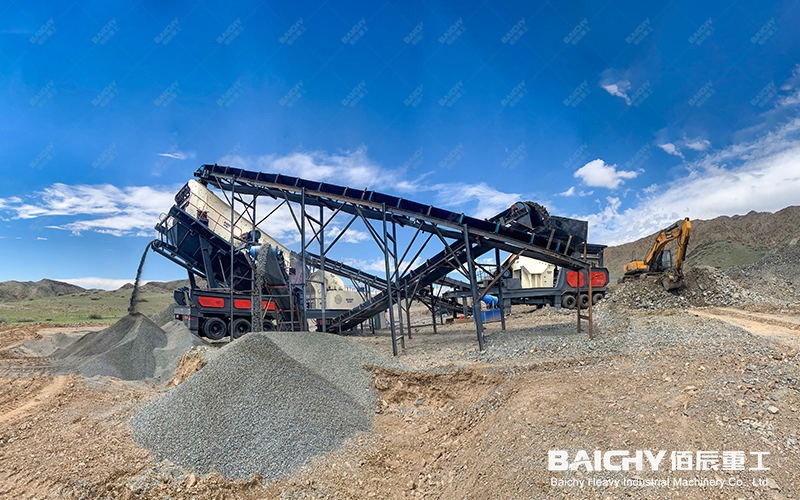

High-Yield Mobile Crushing Line with a Capacity of 150 Tons Per Hour
In the sand and aggregate industry, a "production capacity of 100 tons per hour" is widely recognized as the "golden threshold" for investment. For many contractors, while opting for a compact "4-in-1" integrated unit offers convenience, it often proves inadequate when faced with large-sized raw materials or stringent requirements for finished product gradation.
Today, we are highlighting a heavy-duty dual-machine combination solution capable of consistently delivering a stable output of 80–150 tons per hour (tph): the YDPZ69-9638 Mobile Jaw Crushing Plant paired with the YDPZ1214-1860 Mobile Impact Crushing Plant. Thanks to its formidable capabilities—characterized by "large feed intake, powerful crushing, and precise screening"—this solution is fast becoming the "standard-issue money-maker" for medium-to-large-scale mining operations and construction waste recycling projects.
I. Core Architecture: A Systems Engineering Approach Where 1+1 > 2
This solution is not merely a simple aggregation of equipment; rather, it is a meticulously engineered production system.

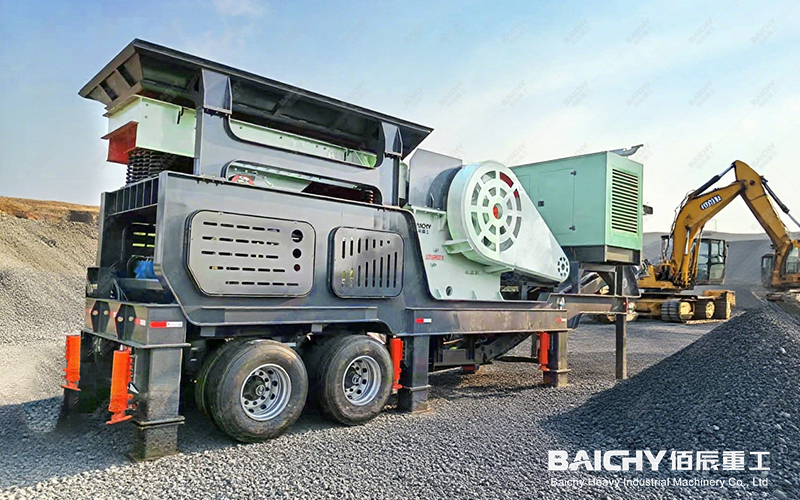

YDPZ69-9638 Mobile Jaw Crushing Plant
1. The Frontline Pioneer: YDPZ69-9638 Mobile Jaw Crushing Plant
Heavy-Duty Jaw Crusher (PE600X900): Commonly referred to in the industry as the "69 Jaw Crusher." With a feed opening measuring 600 x 900 mm, it is capable of directly ingesting hard raw stones with diameters of approximately 500 mm. Compared to the 500 x 750 jaw crusher found in single-unit configurations, its crushing force has been boosted by over 30%, truly earning it the title of a "voracious eater."
Pre-screening Feeder (ZSW9638): This feeder serves a dual purpose: not only does it ensure a uniform feed rate, but its pre-screening function also effectively removes fine soil and debris from the raw material beforehand—thereby protecting the crushing chamber while simultaneously boosting overall production efficiency.

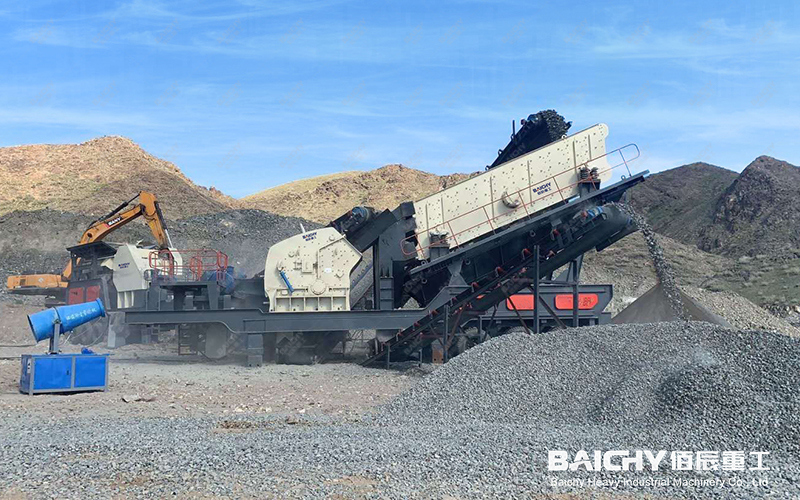

YDPZ1214-1860 Mobile Impact Crushing Plant
2. The Finishing Specialist: YDPZ1214-1860 Mobile Impact Crushing Plant
High-Efficiency Impact Crusher (PF1214): The 1214 Impact Crusher is renowned for its "high crushing ratio and superior finished product shape." Following the initial coarse crushing by the jaw crusher, the material stream undergoes a second stage of high-impact crushing here. The resulting finished aggregate is predominantly cubical in shape—containing virtually no flaky or needle-like particles—making it a premium-grade material ideal for highway and high-speed rail construction.
The "Golden" Screening Machine (YK1860): Equipped with a massive 1.8m x 6m circular vibrating screen. This constitutes a major highlight of this combined setup. With a colossal screening area of 10.8 square meters, it ensures that a material flow of 100 tons per hour spreads out fully across the screen surface, allowing for extremely precise classification and clearly defined output specifications (e.g., 0–5mm, 5–10mm, 10–20mm, 20–30mm).
II. In-Depth Comparison: Why Do Industry Professionals Prefer the "Dual-Machine Combination"?
Many clients face a dilemma when inquiring about pricing: "I can achieve an output of 100 tons per hour with a single integrated unit—the YDPZ57-1210—so why should I purchase two separate machines?" The answer lies in the following three key points:
1. A Generational Leap in Feeding Capacity:
The single-unit version is constrained by the physical space of its chassis frame and can typically only accommodate a 500x750 jaw crusher. If your site involves a significant volume of large rocks exceeding 40 cm in size, the single-unit version will frequently experience blockages. In contrast, the YDPZ69 combination can effortlessly process large feed materials up to 50 cm—thereby eliminating substantial costs associated with expensive manual breaking and secondary blasting operations.
2. A Premium on Finished Product Value:
The screens integrated into single-unit machines are typically smaller in surface area, making them prone to "material mixing" issues. The 1860 Large-Scale Screening Machine, however, ensures that every single stone is sorted into its precise category. In the market, high-quality aggregate characterized by precise gradation and low dust content often commands a selling price 5 to 10 RMB higher per ton than ordinary aggregate—yielding astonishing returns over the long term.
3. Load Balancing and Service Life:
In the single-unit version, the entirety of the operational load is concentrated onto a single chassis frame. The dual-machine configuration distributes the coarse and medium crushing stages across two independent chassis, resulting in significantly reduced operational vibration and lower structural fatigue. Furthermore, this dual-machine setup offers more ample maintenance space, making inspection and repair exceptionally convenient, and extends the overall service life of the equipment by 3 to 5 years.
III. Economic Benefits: Calculating Your Return on Investment
Based on a production rate of 100 tons per hour and 8 hours of daily operation:
Daily Output: 800 tons.
Raw Material Cost Optimization: The "69" jaw crusher reduces preliminary processing costs, saving approximately 2 RMB per ton.
Finished Product Premium: High-standard aggregates command a premium price, selling for an additional 5 RMB per ton.
Logistics Savings: The mobile Plant moves as it produces, eliminating the need for secondary material transfer and saving 3 RMB per ton.
Additional Daily Revenue: 800 tons × (2 + 5 + 3) = 8,000 RMB/day.
This means that, although the initial investment for the dual-machine setup is higher, the incremental cost can typically be recouped within 6 to 10 months through higher finished product prices and lower operational costs.
IV. Frequently Asked Questions (FAQ)
Q1: What is the maximum production capacity of this YDPZ69 + YDPZ1214 combination solution?
Answer: The designed capacity for this solution is 80–150 tons per hour. When processing materials of medium hardness (such as limestone or bluestone) with consistent feed particle sizes, it can easily maintain a stable output of 120–130 tons per hour—fully meeting and exceeding the client's expectation of 100 tons per hour.
Q2: Does the joint operation of these two machines impose any special requirements regarding the site layout or transportation?
Answer: Each Plant features a wheeled mobile chassis that complies with standard traffic and transportation regulations, allowing it to be easily towed by a tractor truck. Regarding the site layout, thanks to the split-unit design, the machines can be flexibly arranged in a linear ("I") or L-shaped configuration to best suit the specific terrain. There is no need to harden the cement ground; simply ensuring the surface is level and compacted is sufficient to commence operations.
Q3: What if I need to process harder granite in the future? Can this equipment handle it?
A: That is precisely the beauty of this dual-machine combination! If the material you are processing becomes harder at a later stage, you simply need to replace—or add—the secondary YDPZ1214 Mobile Impact Crushing Plant with a Mobile Cone Crushing Plant; the front-end 69 Mobile Jaw Crushing Plant can continue to be utilized. This modular upgrade capability is unmatched by single-unit configurations.
