Looking for a High-Capacity Crusher for Hard Rock? How Does a Double Rotor Hammer Mill Double Your Output?

Double Rotor Hammer Mill

In the mining and processing industry, capacity and efficiency are perpetual core pursuits. Faced with increasingly complex ore conditions (high hardness, high moisture content, strong abrasiveness) and severe cost pressures, traditional single-rotor crushers often fall short: output reaches its limit, frequent replacement of wearing parts, and uneven finished product particle size increases the load on subsequent processes Are these problems hindering your project's profitability?

Today, we will delve into a powerful piece of equipment designed specifically to address these challenges—the dual-rotor hammer mill. This is not merely an equipment upgrade, but a complete revolution in traditional crushing processes.

I. What is a Dual-Rotor Hammer Mill?

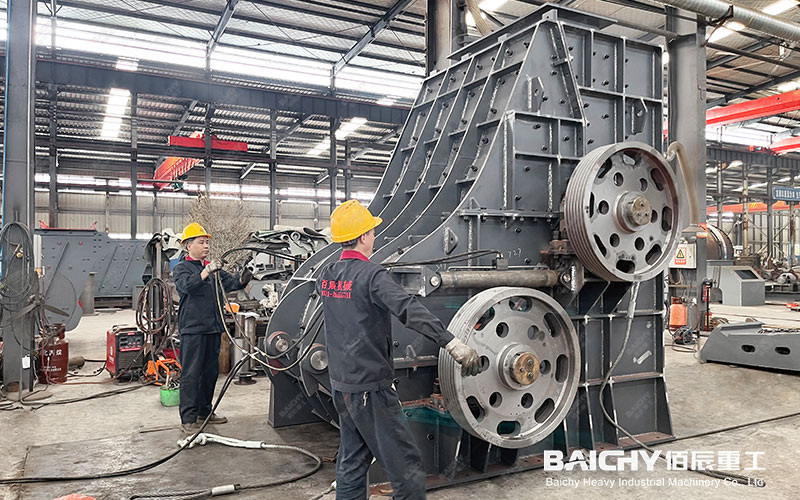

Simply put, a dual-rotor hammer mill consists of two sets of rotors with heavy-duty hammers installed in parallel within the same machine body, driven by two high-power motors. These two sets of rotors rotate in opposite directions, forming two continuous, mutually coordinating, high-efficiency crushing chambers.

• Primary Crushing Chamber: After the material enters, it is first subjected to the intense impact of the first set of rotor hammers, undergoing coarse crushing.

• Secondary Crushing Chamber: Under the influence of gravity and the airflow generated by the rotor rotation, the initially crushed material immediately enters the operating range of the second set of rotors, undergoing secondary or even multiple rounds of fine crushing.

This dual-impact mode achieves tiered and progressive crushing of materials, with efficiency far exceeding that of a single impact.

Double Rotor Hammer Mill

II. Why is it the inevitable choice for high output and high efficiency?

1. Doubling Capacity, Breaking Bottlenecks: This is the most intuitive advantage of the dual-rotor design. The two rotors working simultaneously are equivalent to combining two crushers into one, but the floor space and total energy consumption are far lower than two machines connected in parallel. For large production lines with an hourly output of 100-500 tons or even higher, it is the cornerstone for achieving design goals. Capacity can easily be increased by more than 50% compared to single-rotor equipment of the same specifications.

2. Better Output Particle Size and Uniform Particle Shape: After fine crushing by the two-stage rotors, the material is repeatedly impacted and ground within the chamber, resulting in a finished product with uniform particle size, mostly cubic, and a significant reduction in needle-like and flaky particles. This not only increases the product's selling price but also significantly reduces the load on subsequent sand making machines or mills, lowering the overall system energy consumption.

3. A Stubborn Stone Nemesis with Strong Adaptability: For materials with high moisture content and high viscosity, single-rotor crushers are prone to grate blockage. Dual-rotor models typically employ a grate-free design, controlling the output particle size by adjusting the rotor gap, completely eliminating blockage problems and ensuring continuous and stable operation of the production line. It exhibits extremely strong adaptability to various ores, limestone, and coal gangue with medium hardness or lower.

4. Smoother Operation and Lower Maintenance Costs: The two rotors balance each other, effectively offsetting vibrations during operation, resulting in smoother equipment operation and relatively lower foundation requirements. Simultaneously, the wear of vulnerable parts such as hammers is more uniform, extending service life and reducing long-term maintenance costs and downtime.

III. How to Maximize the Value of a Dual-Rotor Crusher?

As marketing experts and equipment suppliers, we understand that correct selection is more important than low price. When selecting a dual-rotor hammer mill, please focus on the following points:

• Material characteristics are fundamental: Providing accurate physical properties of the ore (hardness, moisture content, silicon content, feed particle size) is the first step in selection.

• Capacity matching is key: Clearly define your hourly and annual production targets, and reserve a 10%-15% margin to cope with fluctuations in ore properties.

• Core component materials: Inquire about the rotor material and manufacturing process (whether it is integral forging or special alloy casting), as well as the hammer material (such as high-chromium composite alloy), as this directly determines the durability of the equipment.

• Supplier's overall strength: Choose a manufacturer with independent R&D capabilities, a complete production base, and timely after-sales response. We can not only provide equipment, but also a complete solution from site planning and process design to installation and commissioning.

In the highly competitive mining industry, building cost and quality barriers with technologically advanced equipment is a wise choice. Twin-rotor hammer crushers, with their superior crushing efficiency, stable output quality, and strong adaptability, are becoming standard equipment in modern large-scale mines and aggregate processing enterprises. They represent more than just a machine; they are a strategic investment to enhance your core competitiveness and maximize profits.

We sincerely invite you to provide specific operating conditions so we can customize the most economical and efficient crushing solution for you.
