TH Series Bucket Elevator
Baichy's TH series bucket elevator is a round-link chain vertical conveyor that lifts bulk material at 15-118 m³/h and accepts granules up to 60 mm. The five TH models from TH160 to TH500 handle ore, clinker and other hot or abrasive feeds that wear out belt type machines.
What Is a TH Series Bucket Elevator?
A TH series bucket elevator is a continuous vertical conveying device whose buckets are fixed to a high-strength round link chain instead of a belt. The chain carries excellent wear resistance, so the TH type suits high-temperature or highly abrasive materials such as ores and clinker.
The three stages are loading, lifting and discharging. Material enters the base through the feed inlet by scooping or inflow, the drive rotates the drum or sprocket to lift the loaded buckets upward inside the casing, and the buckets invert at the head to discharge through the outlet by centrifugal force or gravity.

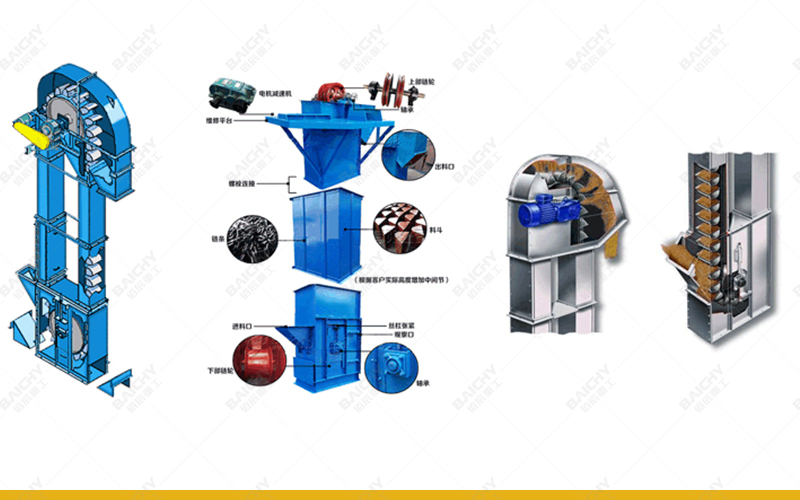

Five structural groups make up the machine: the running components of buckets and traction component, the drive unit with motor, reducer and backstop, the upper section with drive sprocket and discharge outlet, the intermediate casing that seals against dust leakage, and the lower section with the tensioning device and feed inlet.
The three Baichy types differ only in the traction component, and a round link chain bucket elevator is the one specified for hot or abrasive feed.
TH Series Bucket Elevator: Round-Link Chain Type
Traction Type Selection
| Traction type | Traction component | Material it suits |
|---|---|---|
| TD | Rubber belt | Low to moderate abrasiveness, such as pulverized coal |
| TH | Round link chain | High-temperature or highly abrasive, such as ores and clinker |
| NE | Bushing roller chain | High lifting height and strong load-bearing |
TH Series Bucket Elevator Specifications
The TH series covers five models, with bucket elevator capacity rising from 15-30 m³/h on the TH160 to 75-118 m³/h on the TH500.
TH Series Bucket Elevator Specifications
| Model | TH160 | TH250 | TH315 | TH400 | TH500 |
|---|---|---|---|---|---|
| Bucket Width (mm) | 160 | 250 | 315 | 400 | 500 |
| Bucket Distance (mm) | 300 | 420 | 500 | 560 | 625 |
| Speed (m/s) | 1.4 | 1.6 | 1.6 | 1.8 | 1.8 |
| Max Granule size (mm) | 25 | 35 | 45 | 55 | 60 |
| High Degree of Appearance (m) | H+0.9 | H+1.2 | H+1.2 | H+1.5 | H+1.5 |
| Conveying Capacity (m³/h) | 15–30 | 31–48 | 35–60 | 60–94 | 75–118 |
Every cell is reproduced as published on the Baichy bucket elevator page; output varies with material and feed particle size.
How Do You Size a TH Chain Bucket Elevator?
Size a TH bucket elevator from three numbers: required capacity in m³/h, maximum granule size in mm and lifting height.
Match the maximum granule size to the model
The granule limit rises with the model: the TH160 bucket elevator accepts 25 mm, the TH250 35 mm, the TH315 45 mm, the TH400 55 mm and the TH500 60 mm. A coarser feed bridges at the inlet and starves the buckets.
Add the height offset to the site height
The offset runs from H+0.9 m on the TH160 to H+1.5 m on the TH400 and TH500, and is added to the required lifting height. Baichy bucket elevators cover lifting heights of 40-60 m.
Confirm the discharge method against the material
Centrifugal discharge suits dry, free-flowing powdery or small-granular feed. Gravity discharge is safer for lumpy, heavy or fragile material, where a thrown discharge adds fines. Hybrid discharge sits between the two.
Where a TH Series Bucket Elevator Fits in a Grinding Line
In a powder grinding plant the TH bucket elevator is the only vertical leg, lifting crushed material from the storage hopper to the mill feed point ahead of the vibrating feeder.

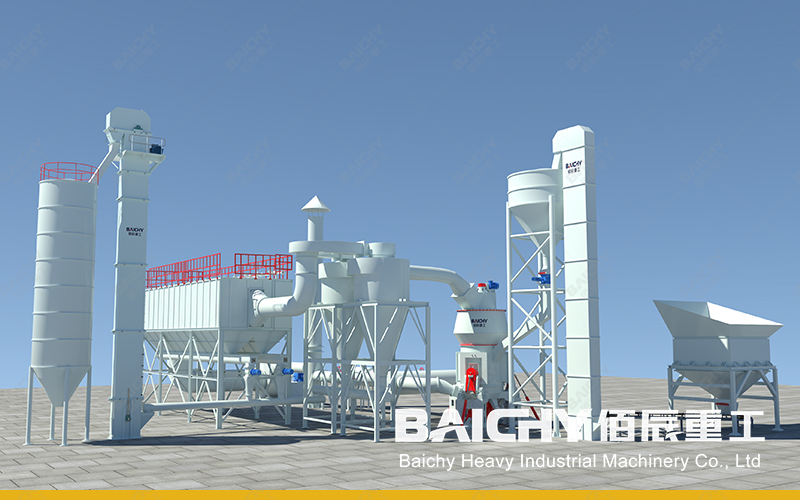

A YGM grinding plant runs a jaw crusher, bucket elevator, storage hopper, electromagnetic vibrating feeder, main mill, classifier, pipes and dust collector.
Related equipment:
• YGM high pressure grinding mill
• Vibrating feeder
• Belt conveyor
• Pulse dust collector
FAQ: TH Series Bucket Elevator Selection
1. What is a TH series bucket elevator?
A TH series bucket elevator is a vertical conveyor whose buckets are carried by a high-strength round link chain rather than a belt, which gives the TH type wear resistance for high-temperature or highly abrasive material such as ores and clinker.
2. What capacity does a TH315 bucket elevator deliver?
A TH315 bucket elevator conveys 35-60 m³/h with 315 mm buckets set 500 mm apart at a chain speed of 1.6 m/s. Output varies with material and feed particle size, so the figure is a range.
3. What is the maximum granule size a TH bucket elevator accepts?
The TH series accepts granules up to 60 mm: 25 mm on the TH160, 35 mm on the TH250, 45 mm on the TH315, 55 mm on the TH400 and 60 mm on the TH500.
4. How high can a TH chain bucket elevator lift?
Baichy bucket elevators cover lifting heights of 40-60 m, with the height offset added per model: H+0.9 m on the TH160, H+1.2 m on the TH250 and TH315, and H+1.5 m on the TH400 and TH500.
5. When should a plant choose a TH type over a TD or NE type?
Choose the TH type for high-temperature or highly abrasive feed such as ore and clinker, where the round link chain resists wear. A TD belt type suits mildly abrasive material such as pulverized coal, and an NE plate chain type takes the heaviest loads.
