Basalt Sand Making Equipment
Basalt sand making equipment is a VSI (vertical shaft impact) crusher for the sand stage, a cone crusher ahead of it and a washer plus a dewatering screen behind it, because basalt at Mohs 6-7 and 150-300 MPa wears impact parts faster than limestone does. Baichy publishes five VSI models, from the VSI-7611 at 120-180 t/h to the VSI-1145 at 490-600 t/h.
What Equipment Does a Basalt Sand Making Line Use?
A basalt sand making line uses four duties in sequence: reduction to the VSI feed limit, sand making, sizing, and washing with dewatering. Only the VSI makes sand; the other three decide whether it sells.
• Reduction — a cone crusher, published for hard rock at Mohs 6-7 and 150-300 MPa.
• Sand making — a VSI crusher, fed with hard material below 30-45 mm by model.
• Sizing — a YK circular vibrating screen; the 2YK1548 is published at 30-275 t/h with a 400 mm maximum feed size.
• Washing and dewatering — an XSD wheel washer or an XL screw washer, then a dewatering screen or sand recovery.
Basalt Sand Making Equipment: VSI and Washer Guide

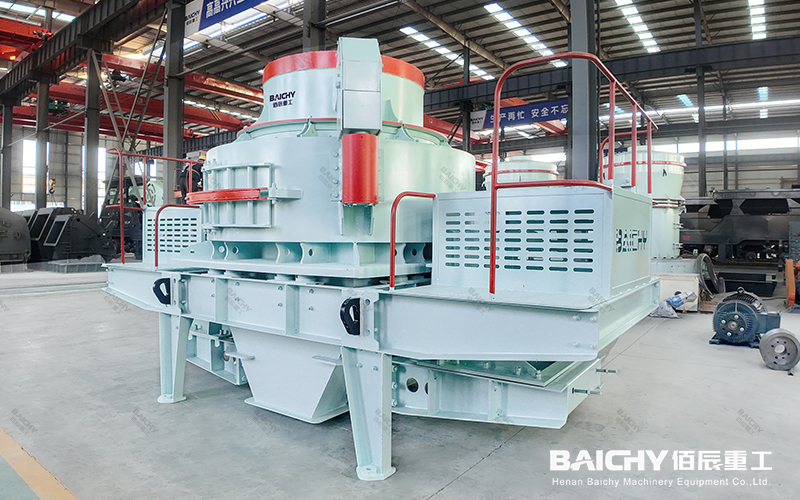

Basalt Sand Making Machine: VSI Models and Hard-Material Feed Limits
The VSI sand making machine makes the sand: stone-on-stone crushing in the vortex chamber produces cubical manufactured sand with an adjustable fineness modulus. Baichy publishes a 0-50mm feed size, a 60-600 t/h capacity window and a 380v:50hz power source for the VSI series.
| Model | Cascade and Center Feeding (t/h) | Center Feeding (t/h) | Hard Material Feed (mm) | Rotation Speed (r/min) | Power of the Double Motors (kW) |
|---|---|---|---|---|---|
| VSI-7611 | 120–180 | 60–90 | <30 | 1700–1890 | 110–150 |
| VSI-8518 | 200–260 | 100–130 | <35 | 1520–1690 | 180–220 |
| VSI-9526 | 300–360 | 150–190 | <40 | 1360–1510 | 264–320 |
| VSI-1140 | 450–520 | 225–260 | <45 | 1180–1310 | 400–440 |
| VSI-1145 | 490–600 | 250–310 | <45 | 1180–1280 | 440–520 |
Why Does One VSI Pass Not Reach the 0-3 mm Fraction?
One VSI pass produces 0-5 mm sand in which the 0-3 mm fraction is only 30%-40%, so a line selling premium fine sand adds a compression stage after the VSI. The published two-stage route is VSI pre-crushing to 8 mm, then roller compression to 0-3 mm.
| Model | Roller Diameter (mm) | Roller Length (mm) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|---|
| 2PG-800×600 | 800 | 600 | ≤40 | 12–50 | 2×22 |
| 2PG-900×900 | 900 | 900 | ≤50 | 50–100 | 2×37 |
| 2PG-1200×1200 | 1200 | 1200 | ≤50 | 80–150 | 2×45 |
That route is published with needle-and-flake content of ≤5% against the GB/T 14684 limit of 15%, powder below 0.075 mm at 8%-12% and a fineness modulus of 2.3-2.8. Basalt at 250-300 MPa is published at a stable 60-75 t/h against 90-100 t/h for limestone at 80-120 MPa.
Does Basalt Manufactured Sand Need Washing and Dewatering?
Basalt manufactured sand needs washing when it is sold to concrete or dry-mix mortar plants, because the VSI leaves stone powder on the grain surface. Baichy publishes the wheel washer as taking stone powder content from 10-20% down to below 3-5%, and the screw washer as taking clay content from 15-20% to less than 0.8%.
| Model | Impeller Dia. (mm) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|
| XSD2610 | Φ2600 | ≤10 | 30–80 | 7.5 |
| XSD3016 | Φ3000 | ≤10 | 80–160 | 15 |
| XSD3420 | Φ3400 | ≤10 | 160–300 | 22–30 |
Behind the washer, the dewatering screen is published to bring surface moisture down from 20%-30% to 5%-8%, and with a hydrocyclone to recover over 95% of particles in the 0.075-2 mm range. A fine sand recovery machine covers the 0.075-0.5 mm cut that washer overflow carries at 10-18%, from 30-60 m³/h on the FX250 to 450-650 m³/h on the FX900.
What Do Published Basalt Sand Lines Look Like?

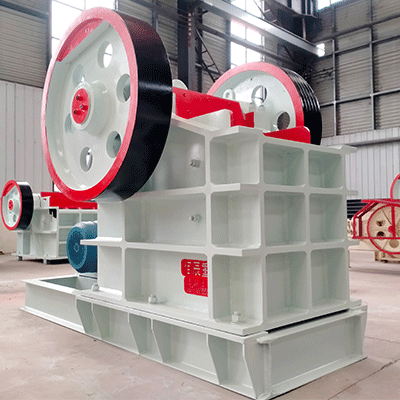

Baichy's 100-150 tph sand making line is published with a ZSW960x3800 feeder, a PE600x900 jaw crusher, a PYB1200 or CS110 cone crusher, a VSIX1150 sand making machine, a vibrating screen, a sand recycling machine and conveyors, on feed below 500 mm, basalt among its raw materials. Published output is fine sand at 0.25-0.35 mm, medium sand at 0.35-0.5 mm and coarse sand at 0.5 mm.
An 80-100 t/h combined crushing and sand line in the Dominican Republic is published as a PE500×750 jaw crusher, a VSI8518 crusher, a 2YK1548 screen and an XSD2160 washer, on basalt at Mohs 5-8, producing 0-5 mm manufactured sand with 5-20 mm and 20-40 mm aggregate.
FAQ: Basalt Sand Making Equipment
1. What is the main equipment for basalt sand making?
The main equipment for basalt sand making is a VSI (vertical shaft impact) crusher, published from the VSI-7611 at 120-180 t/h to the VSI-1145 at 490-600 t/h. The VSI-9526 takes hard material below 40 mm and produces 300-360 t/h in cascade and center feeding mode, or 150-190 t/h with center feeding alone.
2. Can basalt sand be made without a washing stage?
Yes, where the buyer accepts the stone powder the VSI leaves on the grain surface, because a dry line ships 0-5 mm sand straight from the screen. Washing is added when the concrete plant sets a powder limit, which the XSD wheel washer is published to meet by cutting powder to below 3-5%.
3. Why add a roller crusher after the VSI for basalt sand?
Because one VSI pass yields only 30%-40% of the 0-3 mm fraction, and the roller crusher adds a compression stage published to lift that above 60%. The published result is needle-and-flake content of ≤5% with a fineness modulus of 2.3-2.8.
4. How much capacity does basalt cost compared with limestone?
On a line rated 60-100 t/h, basalt at 250-300 MPa is published at a stable 60-75 t/h. Limestone at 80-120 MPa is published at 90-100 t/h on the same line.
5. Does basalt sand need a dewatering screen?
Yes on a wet line, because washed sand leaves the washer at 20%-30% surface moisture and cannot be stockpiled at that figure. A dewatering screen is published to bring it down to 5%-8%, and with a hydrocyclone to recover over 95% of the 0.075-2 mm particles the wash water carries.
