VSI Sand Making Machine
In the field of mining crushing and manufactured sand production, choosing the right sand making equipment is crucial to determining the quality of finished products, production costs, and enterprise profits. Faced with various choices such as hammer crushers and double-roll crushers, why does the VSI sand making machine (vertical shaft impact crusher) stand out and become the first choice for many high-standard sand and gravel aggregate projects? This article will delve into the core advantages of the VSI sand making machine compared to hammer crushers and double-roll crushers, revealing the secrets to its industry-leading position.
I. Equipment Overview: Comparison of Three Sand Making Principles
Before exploring the advantages, we first need to understand the basic working principles of these three types of equipment.
• VSI Sand Making Machine (Vertical Shaft Impact Crusher): Employs two crushing principles: "stone-on-stone" and "stone-on-iron." Material is accelerated and projected within a high-speed rotating impeller, colliding and rubbing violently with the surrounding lining or impact blocks, thus achieving crushing and shaping. Its core lies in impact crushing and self-lining formation.

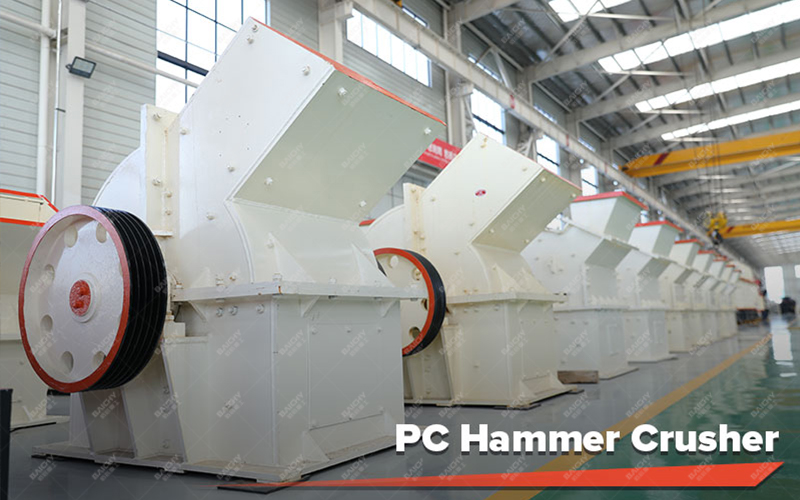

hammer crusher
• Hammer Crusher: Primarily relies on hammers hinged to the rotor to impact and crush materials. When material enters the crushing chamber, it is crushed by the impact of the high-speed rotating hammers and the lining plates. The finished particle size is mainly controlled by the grate gap.

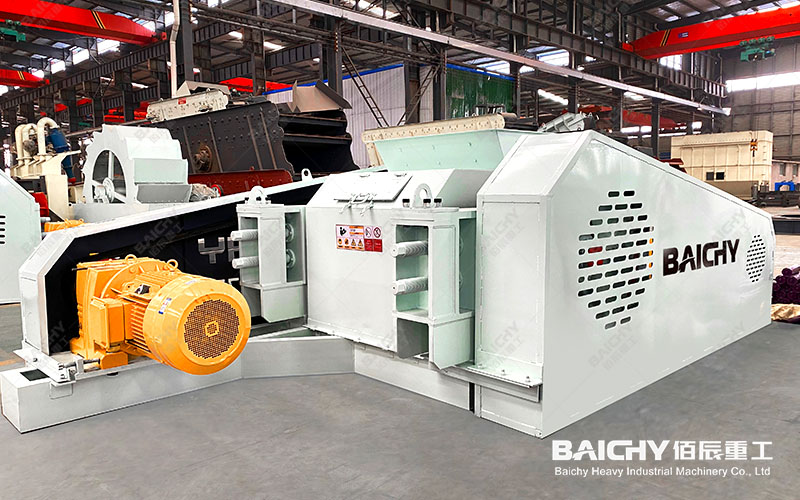

double roller crusher
• Double Roll Crusher: Consists of two opposing rotating rollers. Material is drawn between the rollers under friction and crushed by compression (grinding). The finished particle size is determined by the gap between the rollers.
II. Core Advantages: Why Does the VSI Sand Making Machine Win?
Based on the above principles, the VSI sand making machine exhibits significant advantages in many aspects, especially meeting the production needs of modern high-standard manufactured sand.
2.1 Advantages in Finished Particle Shape and Grading
This is the most prominent advantage of the VSI sand making machine. Its "stone-on-stone" crushing method causes the material to fracture along its natural cleavage planes during multiple collisions, resulting in sand particles that are mostly cubic, with rounded edges and very low needle-like or flaky content. This particle shape greatly improves the workability and strength of concrete.
In comparison, hammer crushers produce more needle-like and flaky particles in their finished products, while roller crushers mainly produce flaky materials with poorer particle shape and weaker gradation continuity compared to VSI sand making machines.
2.2 Controllability of Fineness Modulus and Stone Powder Content
VSI sand making machines can flexibly control the fineness modulus of the output by adjusting the rotor speed, feed rate, and cascade method, and can produce an appropriate amount of well-graded stone powder (<0.075mm). This stone powder can act as micro-aggregate filler in concrete, optimizing its performance.
Hammer crushers and roller crushers have weaker control over the fineness modulus and stone powder content, especially roller crushers, which struggle to produce sufficient and qualified fine powder.
2.3 Wear Part Life and Operating Costs
VSI sand making machines use center feeding and peripheral discharge. The material forms a self-lining protective layer within the crushing chamber, greatly reducing direct contact and wear between wear parts (such as the throwing head and peripheral guard plates) and the material. This results in a longer wear part life and lower crushing cost per ton of material. Hammer crushers experience extremely rapid hammer wear, especially when crushing medium to high hardness materials, requiring frequent replacements and resulting in high maintenance costs. Wear on the rollers of roller crushers leads to larger output particle sizes, necessitating regular repair or replacement.
2.4 Product Flexibility and Application Scope
VSI sand making machines are multi-functional. With simple adjustments, the same machine can easily switch between "stone-on-stone" (for highly abrasive materials, producing aggregates with good particle shape) and "stone-on-iron" (for sand making, increasing output) modes, offering excellent applications from sand making to shaping.
Hammer crushers and roller crushers have relatively limited functions and product adjustment capabilities.
III. Application Case: Successful Practice of VSI Sand Making Machines
A large domestic cement group's aggregate company, which previously used multiple hammer crushers to produce manufactured sand, faced problems such as poor finished product particle shape, a high proportion of needle-like and flaky particles, and frequent hammer replacements (requiring inspection and replacement every shift), leading to unstable concrete performance and high production costs.
The subsequent technical upgrade involved using two of our VSI-1145 sand making machines forming a closed-loop circulation system. After the upgrade:
• The manufactured sand has a cubic particle shape, continuous gradation, and a fineness modulus stable at 2.6-2.9.
• The content of needle-like and flaky particles decreased from over 12% to below 5%.
• The service life of wear-resistant parts increased by 4-5 times, and the production cost per ton of sand decreased by approximately 35%.
• The high-quality manufactured sand produced fully meets the needs of our own commercial concrete plant and high-end construction projects, achieving the dual goals of cost reduction, efficiency improvement, and product upgrade.
IV. Equipment Selection Recommendations
• For high-quality manufactured sand (used in commercial concrete, precast components, dry-mixed mortar, etc.): The VSI sand making machine is the first choice. Its particle shape and gradation control capabilities are irreplaceable.
• For crushing medium-to-low hardness materials (such as limestone and coal gangue), where particle shape requirements are not high and primary crushing or coarse crushing is emphasized: A hammer crusher can be considered, as its investment threshold is relatively low.
• For crushing sticky, wet materials or in the intermediate crushing stage requiring precise control of top particle size: While double-roll crushers have certain advantages, their application in sand making has been gradually replaced by VSI crushers.
V. Frequently Asked Questions (FAQ)
Q1: Is a VSI sand making machine more expensive than a hammer crusher or double-roll crusher?
A1: In terms of initial equipment investment, VSI sand making machines are generally more expensive than hammer crushers and double-roll crushers with the same processing capacity. However, from a total life cycle cost perspective, due to its extremely low wear on vulnerable parts, excellent added value of the finished product (higher sand price), and lower energy consumption, its long-term comprehensive benefits far exceed the latter, and the investment payback period is shorter.
Q2: Can a VSI sand making machine process high-hardness materials such as pebbles and granite?
A2: Absolutely, this is precisely the strength of a VSI sand making machine. Using the "stone-on-stone" working mode, the material forms a self-lining protective layer, and wear mainly occurs between materials, effectively dealing with highly abrasive materials. The key is to select a heavy-duty rotor designed for hard rock and high-quality wear-resistant parts.
Q3: What are the differences between the HP series cone crusher and the VSI sand making machine for sand production?
A3: HP and other multi-cylinder hydraulic cone crushers can also produce high-quality aggregates with excellent fine particle shape, but they are more focused on producing fine aggregates smaller than 12mm. The VSI sand making machine, on the other hand, is a professional sand making equipment, offering advantages in terms of output, particle shape optimization, and fine powder generation for 0-5mm manufactured sand. The two are often used in combination: the cone crusher for fine crushing and the VSI for shaping and sand making, achieving optimal production results.
