Limestone grinding
Limestone, a widely distributed and historically used mineral, plays an irreplaceable role in modern industry. From building foundations to fine chemical raw materials, its full value is realized through efficient grinding technology. This article will delve into the processing technology of limestone and introduce how Baichi Heavy Industry provides you with a complete limestone grinding production line solution, from equipment to services, ensuring efficient and stable production.
As an important non-metallic mineral resource, limestone's applications have permeated every corner of the national economy. It is not only a basic raw material for cement, lime, and steelmaking flux, but after deep processing, it can also be widely used in high-end fields such as papermaking, rubber, coatings, pharmaceuticals, and even cosmetics. With the development of ultrafine powder technology, the added value of limestone powder is constantly increasing, and the market prospects are broad.
To achieve efficient utilization of limestone resources, a scientifically designed and stably operating grinding production line is crucial. Baichy Heavy Industry, leveraging its deep experience in the mining machinery field, provides you with customized overall limestone grinding solutions.
Four Core Processing Stages of Limestone Grinding
Limestone grinding is typically categorized into four main types based on the final fineness of the finished product: coarse powder, fine powder, ultrafine powder, and micro powder. Regardless of the target fineness, a typical Baichi limestone grinding production line includes the following key process stages:

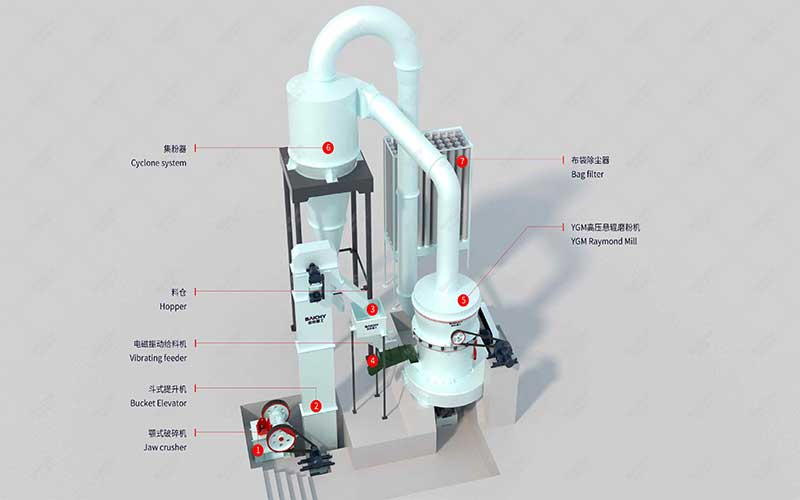

YGM grinding mill production line
1. First Stage: Crushing Large pieces of limestone raw material first need to be crushed. Using equipment such as jaw crushers and impact crushers, the raw material is crushed to a suitable particle size range (typically 15mm-50mm) for entering the grinding mill. Baichi Heavy Industry offers a full range of crushers, such as the C-series jaw crushers and CI-series impact crushers, which can be selected according to your raw material characteristics and capacity requirements.
2. Second Stage: Grinding The crushed limestone pieces are then fed into the raw material silo by an elevator, and then uniformly and quantitatively fed into the grinding mill by a vibrating feeder. This is the core step that determines the fineness and output of the finished product. For different fineness requirements, Baichi offers a variety of grinding equipment options:
◦ Fine powder processing (20-400 mesh): Classic Raymond mills or YGM high-pressure suspension roller mills can be used. The latter offers higher output and a wider fineness adjustment range at the same power.
◦ Ultrafine and micro powder processing (above 400 mesh): HGM series ultrafine grinding mills or LUM series vertical roller mills can be used. These devices can efficiently produce high-value-added ultrafine limestone powder.
3. Third Stage: Classification
The ground material in the grinding chamber enters the powder classifier (such as a cyclone separator or a high-efficiency turbine classifier) with the airflow. Here, qualified fine powder is separated, while unqualified coarse powder is separated and sent back to the main mill for re-grinding, forming a closed-loop cycle to ensure uniform particle size of the finished product and economical energy consumption.
4. Fourth Stage: Powder Collection and Packaging
Powder that meets the fineness requirements enters the pulse dust collector with the airflow for gas-solid separation and collection. The collected finished powder is conveyed to the finished product silo via conveying equipment (such as screw conveyors and elevators), and finally packaged by an automatic baler or transported out of the factory by bulk tanker trucks. Baichi's DMC pulse bag filter dust collector ensures efficient dust collection and meets environmental protection requirements.
Limestone Grinding Production Line
Why choose Baichy Heavy Industry's limestone grinding production line?
Baichy Heavy Industry is not only an equipment supplier, but also a reliable partner for your production operations. We are committed to ensuring your equipment achieves maximum performance and seamless operation:
• Professional selection and solution design: We provide free factory layout design and production line process solutions, configuring the most economical equipment combination based on your materials, output, fineness, and investment budget.
• Comprehensive product line support: From mobile crushing plants to stationary crushing and screening production lines, from various grinding mills to supporting conveying, feeding, and dust removal equipment, we offer one-stop procurement, ensuring production line matching and coordination.
• Comprehensive after-sales service guarantee: We provide professional on-site installation guidance, comprehensive training for operation and maintenance personnel, and 24/7 technical support and spare parts supply services to minimize unplanned downtime and protect your investment rights.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
WhatsApp: 0086-15093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
