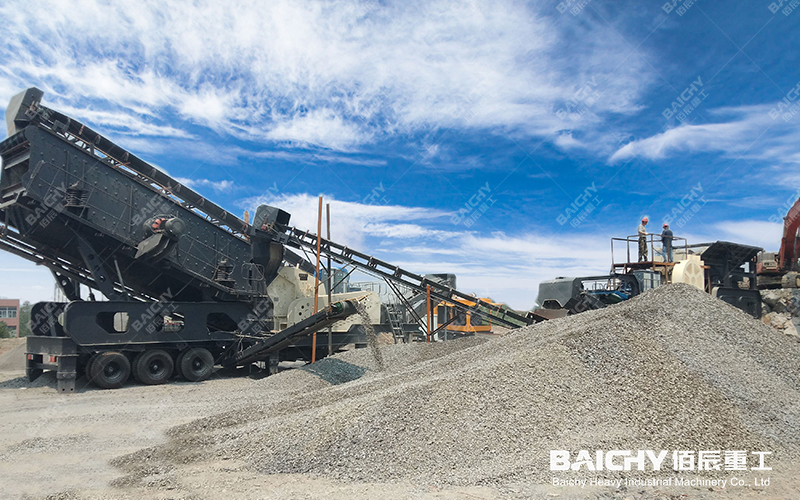

Mobile Crushing Plant
In mining, construction waste recycling, and large-scale infrastructure projects, efficient and economical stone processing is a core challenge. Traditional stationary crushing production lines are increasingly showing their limitations due to their complex installation, fixed sites, and high material transportation costs. In contrast, mobile stone crushing production lines, with their superior flexibility, integrated high-efficiency design, and excellent environmental performance, are rapidly becoming the preferred choice for the global aggregate production industry.
What is a Mobile Stone Crushing Plant?
A mobile crushing plant is a high-performance, portable crushing equipment that integrates feeding, crushing, screening, and conveying. Essentially, it is a mobile, complete small-scale crushing plant. It is mainly pided into two types: tire-mounted mobile crushing plants and tracked mobile crushing plants, to adapt to different working conditions and customer needs.

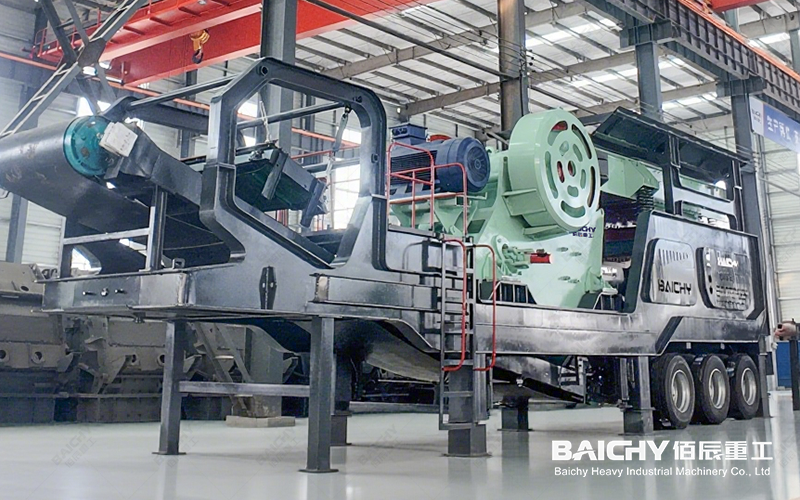

Mobile jaw crusher
• Tire-mounted mobile crushing plants: Typically towed by a semi-trailer, suitable for road transport, and highly mobile within the site. They are characterized by relatively low investment costs and are suitable for working conditions with short material transportation distances and relatively flat sites, such as construction waste treatment plants and road construction.

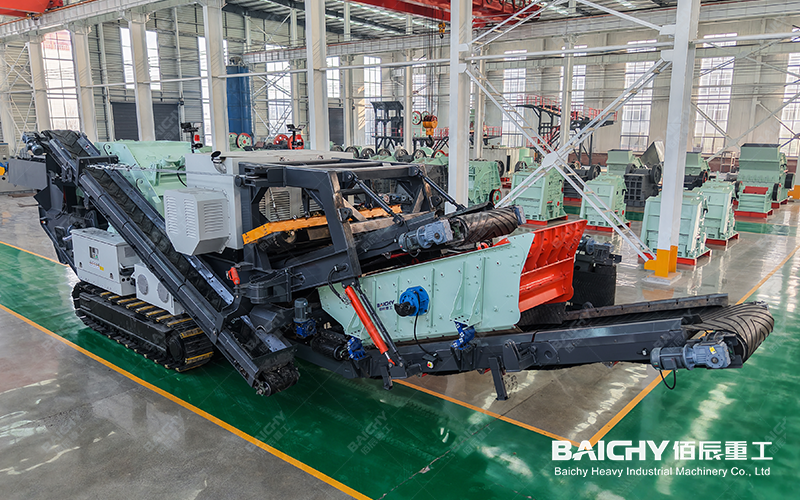

Crawler Impact Crusher
• Tracked Mobile Crushing Plant: Utilizing a fully hydraulically driven tracked chassis, it boasts strong off-road capabilities, allowing direct deployment to the work surface and stable operation even in complex terrains such as wet, soft, and rugged mines and quarries. Its higher degree of integration enables it to "crush wherever it goes."
Core Advantages and Features
1. Unparalleled Mobility and Flexibility: Whether wheeled or tracked, mobile crushing plants eliminate the need for complex and time-consuming foundation pouring and fixed installation. The equipment can be moved at any time according to the construction progress, directly to the raw material pile or construction waste site for operation, completely eliminating the expensive transportation costs between the mining point and the fixed crushing plant, making it particularly suitable for highly mobile projects.
2. Integrated Design, Rapid Production: The equipment integrates a vibrating feeder, crushing main unit (jaw crusher, cone crusher, impact crusher, etc.), vibrating screen, belt conveyor, and electrical control system into one unit. Upon arrival at the site, only simple debugging is required to put it into production, typically within one day, saving more than 50% of the time cost compared to building a fixed production line.
3. Flexible Configuration and perse Functions
Based on crushing process requirements, mobile crushing plants can be configured with different main units to form different series:
• Mobile Jaw Crusher: Used for primary coarse crushing, processing large rocks.
• Mobile Cone/Impact Crusher: Used for secondary medium and fine crushing, producing aggregates with excellent particle shape.
• Mobile Sand Making Plant: Specifically used for producing manufactured sand.
• Mobile Screening Plant: Used for material screening and grading.
• Modular Mobile Crushing Plant: Multiple units can operate together to form a complete mobile production line.
4. Intelligent, Efficient, Energy-Saving, and Environmentally Friendly
Modern mobile crushing plants are highly intelligent, equipped with remote control operation and fault diagnosis systems, significantly reducing manpower requirements. At the same time, the equipment adopts a low-noise design and can integrate a pulse dust removal system to effectively control dust and noise pollution, meeting increasingly stringent environmental regulations and avoiding the risk of hefty fines.
5. Reduced Overall Operating Costs
Although the investment per unit may be high, the savings in installation costs, infrastructure costs, long-distance material transportation costs, and the manpower and time costs associated with frequent relocation are significant. Some tracked models also come equipped with generator sets, ensuring continuous production even in areas without power grids and maximizing profits.
Typical Model Parameter Reference (Taking Tracked Model as an Example)
| Model | Crusher Model | Maximum Feed Size (mm) | Processing Capacity (tons/hour) | Equipment Weight (tons) |
| PYDZ69-9638 | PE600x900 | 500 | 80-100 | 41 |
| YMC96 | C96 | 480 | 100-120 | 39 |
| YMC100 | C100 | 580 | 120-150 | 52 |
Note: The above are example parameters; the final model needs to be determined based on material properties and output requirements.
Application Areas
• Mines and Quarries: Direct crushing at the mine entrance reduces blasting and transportation costs.
• Construction Waste Recycling: On-site crushing of concrete and bricks at urban demolition sites to generate recycled aggregate.
• Highway and Railway Construction: Produces graded crushed stone along railway lines, reducing procurement and logistics costs.
• Civil Engineering: Used for the production of foundation aggregates for reservoirs, dams, and other projects.
Why Choose a Mobile Crushing Production Line?
In today's pursuit of efficiency and cost control, mobile crushing production lines offer a solution that traditional stationary production lines cannot match. It essentially "puts the entire crushing plant on wheels or tracks," allowing production to directly connect with raw materials, achieving a revolutionary shift from "raw materials to machines" to "machines finding raw materials." For companies engaged in mining, recycling, and infrastructure, investing in a mobile production line is not just about purchasing equipment, but about introducing an efficient, flexible, and sustainable production model.
Still hesitating between stationary and mobile production lines? The key is to assess your project's mobility, timeline, site conditions, and long-term planning. Our experts can provide you with the optimal process solution and free process flow design based on your specific materials (hardness, size), expected output, finished product specifications, and budget.
