In the field of mining crushing, selecting the right secondary crushing equipment is crucial for improving production line efficiency and finished product quality. The PF series impact crusher and the CI series impact crusher both utilize impact energy for crushing and are often compared by customers. This article will provide an in-depth analysis of their core differences, applicable scenarios, and selection recommendations to help you make the optimal decision.
I. Equipment Overview and Technical Principle Analysis
1.1 PF Series Impact Crusher

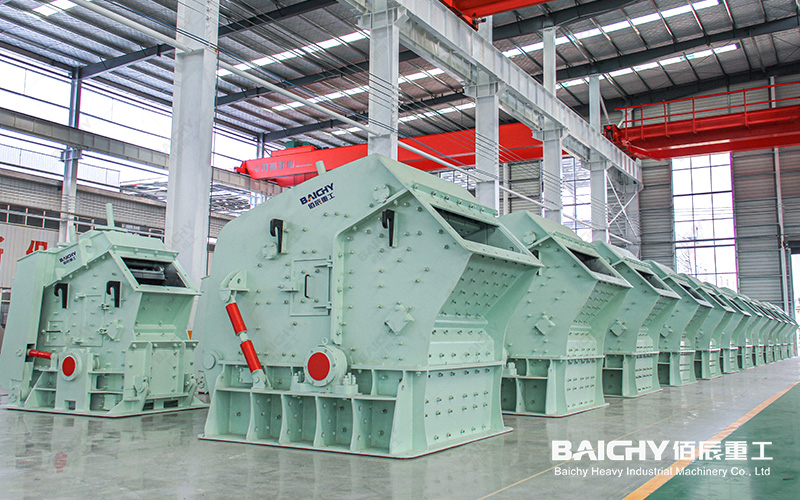

PF Impact Crusher
The PF impact crusher is a device that uses hammer impact and impact plate rebound for multiple crushing operations. After the material enters the machine, it is struck by the hammers on the high-speed rotating rotor and impacted by the impact plates. Through repeated impacts, rebounds, and mutual collisions, it is crushed. Its structure is relatively classic, and the output particle size is controlled by adjusting the gap between the impact plates and the hammers.
1.2 CI Series Impact Crusher
CI Impact Crusher
The CI impact crusher (usually referring to a vertical shaft impact crusher with an impeller design) adopts a "stone-on-stone" or "stone-on-iron" working principle. Material is thrown into a high-speed rotating impeller and accelerated outward under centrifugal force, where it is violently crushed by impact and friction with the surrounding material lining (stone-on-stone) or circumferential plates (stone-on-iron). It focuses more on utilizing the material's own kinetic energy for crushing.
II. Core Differences and Comparison of Advantages
| Characteristics | PF Series Impact Crusher | CI Series Impact Crusher |
| Crushing Principle | Hammer impact + impact plate collision | Centrifugal projection + "stone-on-stone"/"stone-on-iron" |
| Finished Product Particle Shape | Good, mostly cubic, fewer needle-like and flaky particles | Excellent, rounded particles, high cubic ratio, suitable for sand making and high-standard aggregates |
| Wear Cost | Moderate. Hammers and impact plates are vulnerable parts, especially when processing high-hardness materials. Relatively low. | When using "stone-on-stone," wear mainly occurs in the impeller flow channel lining, and the material forms a self-protective layer. |
| Adaptability to Moist and Muddy Materials | Poor, prone to clogging | Some adaptability, but excessively wet materials still require pretreatment |
| Processing Capacity | Wide range, suitable for medium and large production lines | High flexibility, can be used for shaping, sand making, and medium crushing |
| Maintenance Convenience | Relatively simple structure, easy maintenance | High maintenance requirements for core components such as impellers, but modern designs have significantly optimized maintainability |
Advantages of PF Impact Crusher: Robust structure, high impact load resistance, especially suitable for crushing materials of medium hardness and below (such as limestone, coal gangue, etc.), with relatively low initial investment costs, making it a classic and reliable choice for coarse and medium crushing.
Advantages of CI Impact Crusher: Unparalleled advantages in particle shape control and sand making. Its product gradation is continuous, and the fine powder content is controllable, significantly improving the quality of commercial concrete aggregates and manufactured sand. Simultaneously, its "stone-on-stone" working method effectively reduces metal wear costs when crushing highly abrasive materials.
III. Application Scenarios and Case Studies
3.1 Typical Applications of PF Impact Crusher
• Case 1: Limestone Crushing Production Line. A cement raw material base uses a two-stage crushing process of "jaw crusher + PF impact crusher" to crush limestone with a particle size ≤800mm to a finished product of ≤25mm for raw meal preparation. The production line operates stably, meets output targets, and is easy to maintain.
• Case 2: Construction Waste Recycling. Used for crushing recycled materials such as concrete blocks and bricks, its impact crushing principle can effectively separate the attached cement mortar, obtaining relatively clean recycled aggregate.
3.2 Typical Applications of CI Impact Crusher
• Case 1: High-Performance Aggregate Shaping and Sand Making. A large commercial concrete plant's supporting aggregate project uses a CI impact crusher for shaping after the cone crusher. The feed material is coarse aggregate of 19-26mm. After shaping, the cubic ratio of the finished aggregate increased from 85% to 97%, significantly improving the workability and strength of the concrete.
• Case 2: Pebble Sand Making In a manufactured sand project in the Yangtze River Basin, the CI series "stone-on-stone" impact crusher was used to process high-hardness pebbles. The produced manufactured sand has an adjustable fineness modulus, rounded particle shape, and excellent gradation, fully meeting the medium sand standard for Zone II.
IV. How to Choose? Recommended Equipment
The key to selection lies in the properties of the raw materials and the product requirements.
• If your raw materials are of medium to low hardness (e.g., limestone, dolomite), and you mainly produce conventional crushed stone with requirements for particle shape that are not extremely stringent, and you prioritize high cost-effectiveness and reliable operation, the PF series impact crusher is your ideal choice. Recommended models: PF-1214, PF-1315.
• If your raw materials are of high hardness (e.g., granite, river pebbles), or your core requirement is to produce high-quality manufactured sand with extremely stringent requirements for the particle shape of the finished aggregate (e.g., for high-strength prestressed components), then the CI series impact crusher will be a better solution. Recommended models: CI-5X, CI-6X.
For ultra-large, high-hardness crushing lines, the classic combination of "jaw crusher + cone crusher + CI impact crusher" is often used to balance output, wear resistance, and finished product quality.
V. Frequently Asked Questions (FAQ)
Q1: Can a CI impact crusher completely replace a PF impact crusher?
A1: No, they cannot completely replace each other. While their roles overlap, their focuses differ. PF impact crushers offer advantages in the medium-to-low hardness crushing stage, with high processing capacity and low investment and maintenance costs. The core competitiveness of CI impact crushers lies in shaping and sand production. In scenarios with limited budgets, soft materials, and a primary focus on producing crushed stone, PF impact crushers remain a more economical choice.
Q2: Which equipment is more wear-resistant?
A2: This depends on the material and operating mode. For highly abrasive materials, the "stone-on-stone" mode of CI impact crushers, through the formation of a self-protective lining by the material, significantly reduces metal consumption, thus exhibiting greater wear resistance under certain conditions. The hammers and impact plates of PF impact crushers directly participate in crushing, resulting in relatively direct wear. However, the specific wear and tear costs need to be comprehensively evaluated based on factors such as material corrosivity and linear velocity.
Q3: What are the differences between the two in terms of environmental protection?
A3: Both types of modernly designed equipment can be equipped with good sealing and dust collection interfaces. During operation, the "material lining" formed by the material within the crushing chamber of the CI impact crusher also has a certain noise reduction and dust prevention effect. However, overall, environmental performance depends more on the configuration of the entire dust collection system than on the type of inpidual equipment. All our models can be customized with enclosure and dust collection solutions according to the highest environmental standards.
