In sand and gravel aggregate and mineral processing production lines, the upstream feeding and primary crushing stages are the choke points of the entire process. The seamless coordination of equipment here directly determines the efficiency, stability, and final profitability of subsequent production.
After 20 years of industry practice, the combination of the ZSW1142 vibrating feeder and the PE-750x1060 jaw crusher has become a highly favored golden pairing in medium to large-scale production lines.

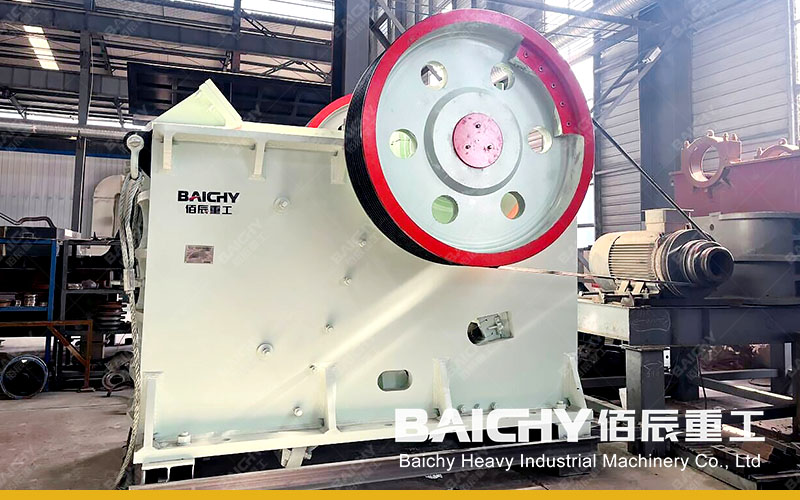

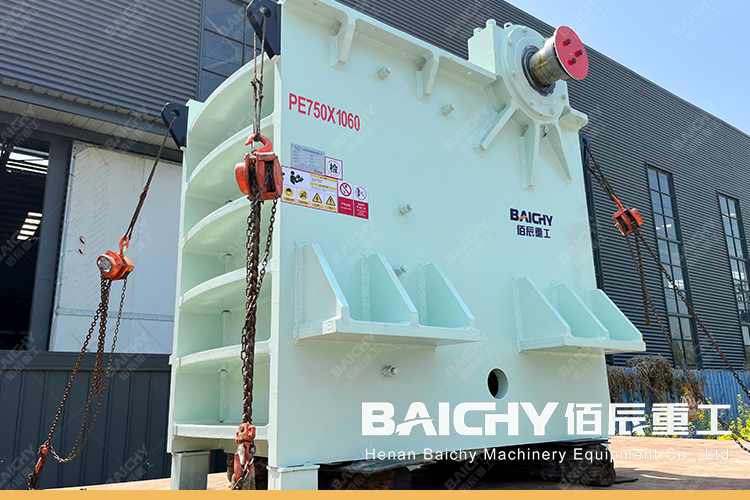

PE-750x1060 jaw crusher

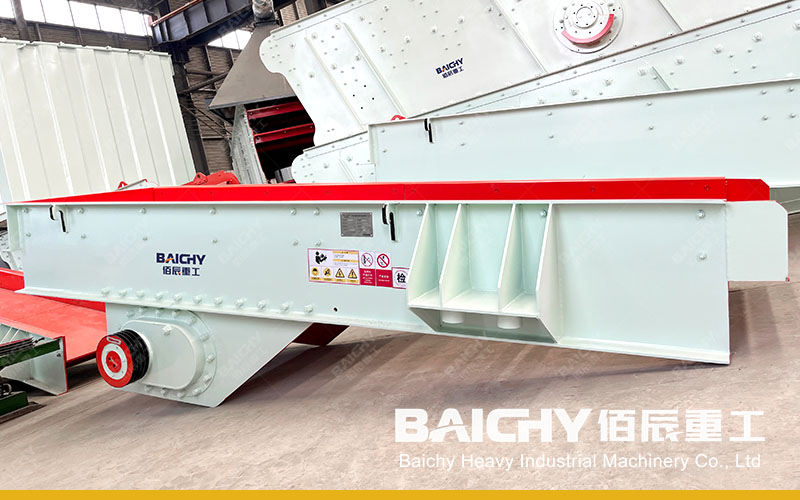

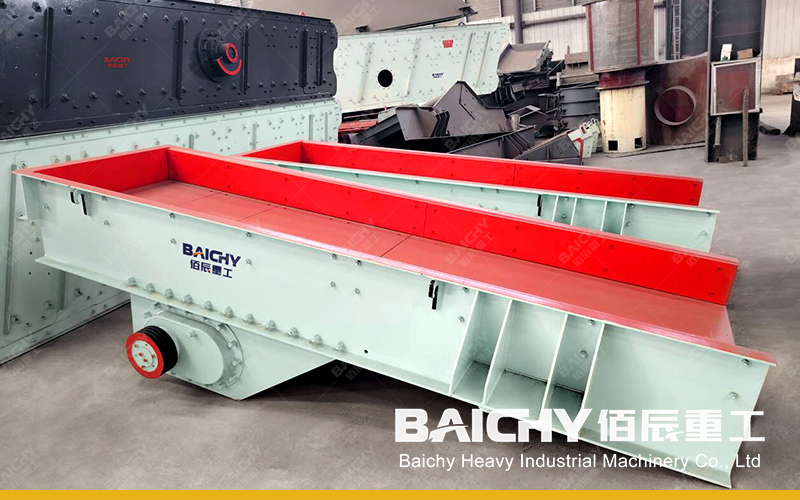

ZSW1142 Vibrating Feeder
I. Perfect Match: Why Them?
An efficient equipment combination is not simply 1+1=2, but rather a deep integration of performance parameters, production rhythm, and operating conditions. The combination of ZSW1142 and PE-750x1060 precisely meets these core requirements.
• Precise Matching of Processing Capacity: As a classic primary crushing equipment, the PE-750x1060 jaw crusher typically has a processing capacity between 110-320 tons/hour (depending on the material's hardness, particle size, and discharge port settings). The ZSW1142 vibrating feeder boasts a large feeding capacity and adjustment range, stably and evenly conveying this volume of material to the jaw crusher inlet. This prevents the jaw crusher from idling due to hunger or clogging due to overfeeding, ensuring the jaw crusher always operates at its optimal load.
• Pre-screening of feed size: The ZSW1142 feeder's grid or grate-type feed trough design allows for pre-screening of fine-grained materials (especially those containing soil) during the feeding process. This fine material can fall directly into the bypass, avoiding further entry into the jaw crusher. This reduces the ineffective workload on the jaw crusher, improves the efficiency of processing usable material, and reduces unnecessary wear on the liners.
• Stable and uniform feeding, protecting equipment: The biggest advantage of the vibrating feeder lies in its continuous and uniform feeding. A stable and controllable material flow into the jaw crusher's crushing chamber effectively avoids impact loads caused by fluctuating or intermittent material flow, protecting the motor, bearings, and moving jaw assembly. This significantly extends the service life of the jaw crusher's core components and reduces maintenance costs.
II. Core Parameter Interpretation: The Synergy Behind the Data
Below, we use a key parameter comparison table to visually demonstrate how this pair works seamlessly.
| Equipment Model | Core Parameters | Function and Matching Significance |
| ZSW1142 Vibrating Feeder | Maximum Feed Size: ≤750mm | Easily accommodates and conveys materials up to the maximum acceptable size for PE-750x1060 without secondary crushing. |
| Processing Capacity: 150-500 tons/hour | The capacity range fully covers and exceeds the jaw crusher's requirements, providing on-demand material distribution to the jaw crusher through stepless feed rate adjustment. | |
| Trough Dimensions: Width 1200mm | The wide trough ensures smooth passage of large materials, preventing blockages, and matches well with the jaw crusher's feed inlet width. | |
| PE-750x1060 Jaw Crusher | Feed Inlet Size: 750x1060mm | Determines its maximum allowable feed particle size, directly corresponding to the ZSW1142's feeding capacity. |
| Maximum Feed Particle Size: ≤630mm | Slightly smaller than the feeder's allowable particle size. This is a safe and reasonable redundancy design, ensuring that extremely large pieces can be effectively controlled by the feeder. | |
| Processing Capacity: 110-320 tons/hour | This is the core capacity indicator of the production line. The feeder's task is to stably and accurately meet the feeding needs within this range. | |
| Spindle Speed: 250 rpm | This determines the crushing frequency. Uniform feeding ensures that each crushing stroke achieves the ideal effect, improving the crushing ratio and product particle size uniformity. |
As shown in the table above, the key parameters of the two devices are interconnected. The ZSW1142 provides ample guarantee and flexibility for the PE-750x1060 in terms of feed particle size and processing capacity, which is the physical basis for their efficient synergy.
III. Value-Added Advantages from Twenty Years of Manufacturing Experience
Based on our twenty years of experience serving thousands of production lines, while providing this standard combination, we focus on how to create additional value for our customers:
1. Customized Liners: We can recommend or customize liners of different materials (such as Mn16, wear-resistant steel plates) for the trough bottom plate and grid bars of the ZSW1142 feeder, based on the characteristics of the customer's crushed materials (such as high-hardness granite, highly abrasive river pebbles, etc.), significantly extending the life of vulnerable parts.
2. Intelligent Control Linkage: We recommend linking the feeder's speed control motor controller with the jaw crusher's motor load signal. When excessive current (overload) is detected in the jaw crusher, the feeder speed is automatically reduced; conversely, it is increased to achieve fully automated constant load feeding, maximizing energy savings and protecting the equipment.
3. Overall Foundation and Installation Guidance: We provide complete equipment foundation drawings and installation guidelines. Ensure the installation angle and drop height of the feeder and jaw crusher are optimal, guaranteeing smooth material flow into the crushing chamber while avoiding excessive impact on the jaw crusher.
IV. Conclusion: Choosing the classic means choosing stability and efficiency
In the mineral processing and sand and gravel production fields, equipment reliability is often more important than nominal limiting parameters. The combination of the ZSW1142 vibrating feeder and the PE-750x1060 jaw crusher is a mature solution proven by long-term market experience. It may not be the most stylish, but it is certainly one of the most stable, economical, and easy-to-maintain options.
As a manufacturer with twenty years of experience in the industry, we not only provide this high-quality equipment but are also willing to share our accumulated supporting knowledge and process experience to help you gain an advantage from the very first step of your production line. Choosing the right combination lays the most solid foundation for the success of the entire project.
