In industries such as mining, building materials, metallurgy, and road construction, crushing is the first critical step in material processing. Choosing a suitable crusher is like laying a solid foundation for the entire production line, directly affecting production efficiency, finished product quality, operating costs, and ultimate profits. As a manufacturer of mining crushing equipment with 20 years of professional experience, we understand the confusion and challenges our customers face when selecting a crusher.
This article will systematically outline the mainstream crusher types on the market, deeply analyze their working principles, performance characteristics, advantages and disadvantages, and applicable scenarios, and provide practical selection advice based on the author's twenty years of industry experience to help you make the wisest decision.
I. Two Major Crushing Methods Determine Equipment Type
Although there are many types of crushers, their core crushing methods are mainly pided into two categories:
1. Compression Crushing: This method involves slowly approaching the material with two wear-resistant parts (such as jaw plates and jaw walls) and applying enormous pressure to crush it. This method is suitable for medium-hard and harder materials, producing finished particles with many sharp edges.
2. Impact Crushing: This method utilizes a high-speed rotating rotor to drive hammers to impact the material, or to crush materials through mutual impact. This method is suitable for medium-hard and lower-hard materials, producing finished products with good particle shape and high cubic content.
Understanding this basic principle helps us better understand the characteristics of different types of crushers.
II. Detailed Explanation of Mainstream Crusher Types

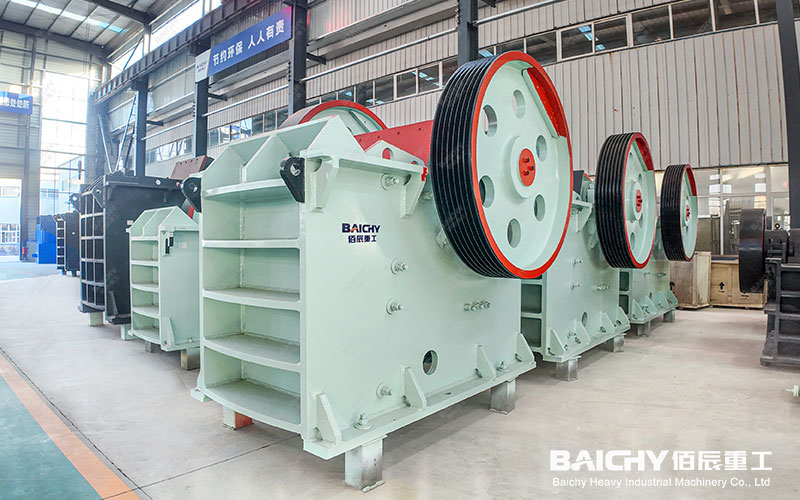

Jaw Crusher - The Robust Primary Crushing Expert
1. Jaw Crusher - The Robust Primary Crushing Expert
• Working Principle: Mimicking the movement of an animal's jaws, the crushing chamber is formed by a moving jaw and a fixed jaw. Through periodic compression motion, large pieces of material are crushed to medium particle size.
• Key Features: Simple structure, reliable operation, convenient maintenance, and large processing capacity; it is the absolute mainstay of primary crushing (coarse crushing) in mines.
• Applicable Materials: Almost all medium-to-high hardness materials, such as granite, basalt, and river pebbles.
• Finished Product Particle Size: Typically 100-350mm.

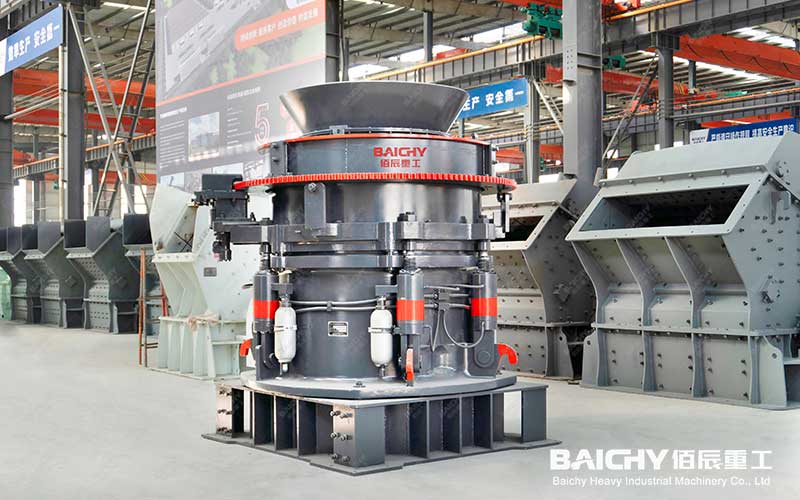

Cone Crusher - The Highly Efficient Medium and Fine Crushing
2. Cone Crusher - The Highly Efficient Medium and Fine Crushing Expert
• Working Principle: The moving cone rotates eccentrically within the fixed cone, continuously compressing and bending the material to achieve medium and fine crushing.
• Key Features: High crushing efficiency, low energy consumption, high degree of automation, and long wear life. Utilizes the principle of layered crushing, resulting in excellent finished particle shape.
• Applicable Materials: Medium to high hardness materials, commonly used for secondary (medium) and tertiary (fine) crushing.
• Finished Particle Size: Can reach 5-60mm depending on the chamber type.

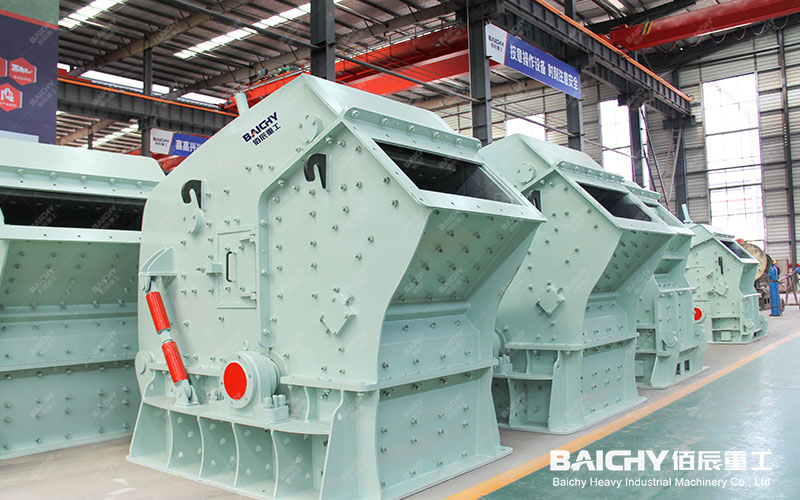

Impact Crusher - A Flexible Particle Shape Shaper
3. Impact Crusher - A Flexible Particle Shape Shaper
• Working Principle: Utilizes a high-speed rotating rotor to drive hammers to impact the material, throwing it against the impact plate for secondary or multiple impact crushing.
• Key Features: Large crushing ratio, good product particle shape (cubic), and easily adjustable discharge particle size. However, hammer wear is relatively rapid, making it suitable for medium to low hardness materials.
• Applicable Materials: Limestone, coal, concrete, and other medium to low hardness materials, ideal for building materials and road construction.
• Finished Particle Size: Adjustable, typically less than 40mm.

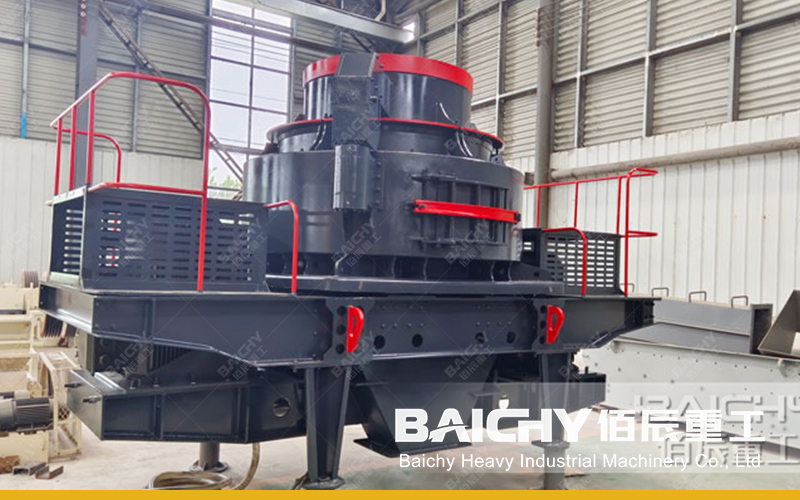

Impact Crusher (Sand Making Machine) - The Professional Core of Artificial Sand Making
4. Impact Crusher (Sand Making Machine) - The Professional Core of Artificial Sand Making
• Working Principle: Utilizes the stone-on-stone or stone-on-iron principle. Material is accelerated within the rotor and thrown out, colliding with the shroud or the material itself for crushing.
• Key Features: Specifically designed for artificial sand making and stone shaping, producing well-graded, rounded sand, making it an essential piece of equipment for producing high-performance concrete aggregates.
• Applicable Materials: Similar to impact crushers, but more focused on fine and ultrafine crushing.

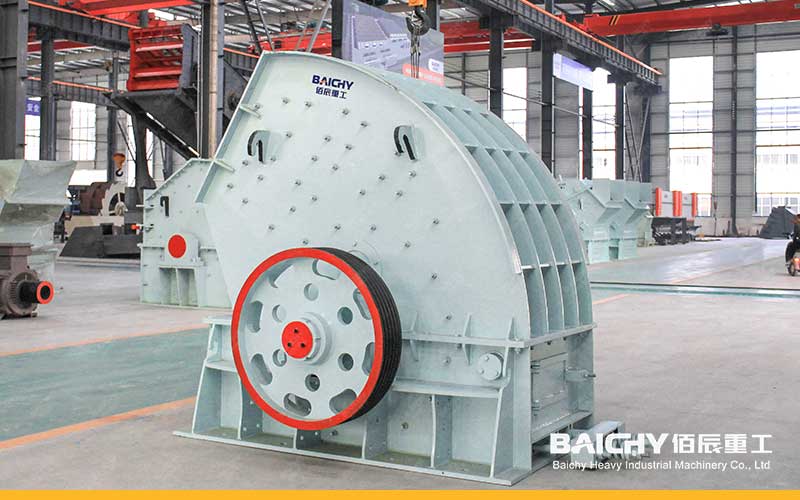

Hammer Crusher - The Highly Efficient One-Step Forming Warrior
5. Hammer Crusher - The Highly Efficient One-Step Forming Warrior
• Working Principle: Hammers hinged to the rotor impact the material at high speed, with the discharge particle size controlled by the grate.
• Key Features: Enables one-step feeding and forming, extremely high crushing ratio, and compact structure. However, the grate is prone to clogging, and the hammers wear quickly; unsuitable for crushing materials with high moisture or high silica content.
• Applicable Materials: Brittle materials with low compressive strength, such as limestone, bluestone, and coal gangue.

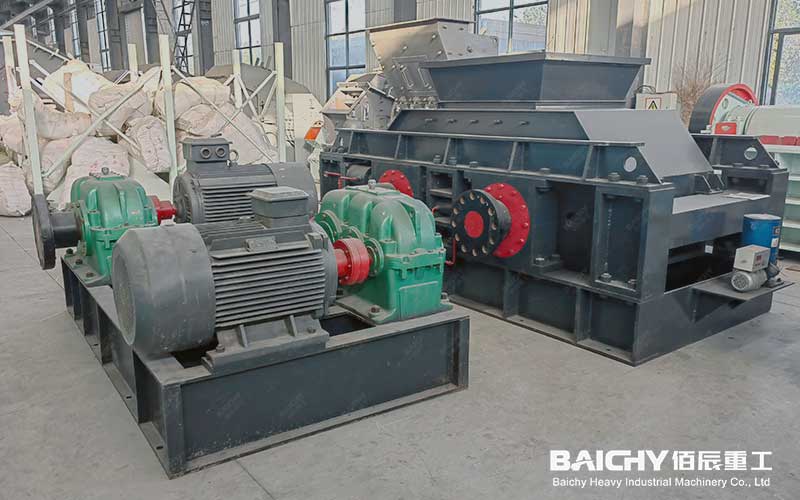

Double Roll Crusher - The Precise Particle Controller
6. Double Roll Crusher - The Precise Particle Controller
• Working Principle: Two opposing rollers use friction to draw material into the crushing chamber for compression or shearing crushing.
• Key Features: Less over-crushing, uniform product particle size, and easy control. Commonly used for fine crushing of materials such as coal and coke.
• Applicable Materials: Medium to low hardness materials, applications requiring uniform product particle size.
III. 20 Years of Experience in Selection Recommendations: How to Choose the Most Suitable Crusher for You?
Choosing a crusher is not simply about looking at the model or price; it's a systematic process. We recommend considering the following dimensions:
• Material Characteristics: Hardness, moisture content, mud content, and maximum feed size are primary considerations. Jaw crushers and cone crushers are preferred for high-hardness materials; for materials requiring better particle shape, consider impact crushers or cone crushers.
• Capacity Requirements: What is your expected hourly output? This determines the size of the equipment.
• Finished Product Requirements: Are there any special requirements for the output particle size and shape? For example, for high-grade highway surface materials, extremely high particle shape requirements are necessary.
• Investment and Operating Costs: Consider not only the equipment purchase cost but also long-term wear parts consumption, power consumption, and maintenance costs. While cone crushers have a high initial purchase cost, their long-term operating costs may be lower.
• Production Line Configuration: The crusher is an integral part of the production line and needs to work in conjunction with feeders, vibrating screens, conveyors, and other equipment to ensure smooth operation.
Our recommendation: Before making a final decision, it is best to provide your material sample and capacity requirements so that our engineers can conduct free crushing tests and design a solution for you. 20 years of experience tells us that a customized solution creates far more value than a standard answer.
