Magnetic Separation Equipment
In the vast and complex system of ore processing, the selection of each piece of equipment is crucial to the final efficiency. Among them, magnetic separation equipment, as a powerful tool for separation using physical properties, is undeniably important.
In-depth analysis of magnetic separation equipment: More than just separation, it's a strategy
What is the core principle of magnetic separation?
The essence of magnetic separation equipment is to utilize the natural differences in magnetic properties between minerals. Under the influence of a magnetic field, magnetic minerals (such as magnetite) are attracted by magnetic force, while non-magnetic minerals (such as quartz) are separated by gravity, centrifugal force, or water flow, thus achieving efficient separation. This process requires no chemical reagents and is a highly efficient, clean, and low-cost physical beneficiation method.
The strategic role of magnetic separation in the beneficiation process
Magnetic separation equipment does not operate in isolation; its strategic deployment permeates the entire beneficiation process:
• Pre-selection (after crushing, before grinding): Discarding a large amount of waste rock in advance, achieving more crushing, less grinding, directly reducing grinding energy consumption and costs by up to 20-30%, making it the first choice for smart mines.
• Roughing and Cleaning (Core Separation Stage): Obtaining qualified concentrate from liberated minerals is the core step determining the final concentrate grade and recovery rate.
• Scavenging: Filling in the gaps in tailings, maximizing the recovery of valuable components and improving resource utilization.
Magnetic Separation Equipment
Our Magnetic Separation Equipment: 20 Years of Craftsmanship and Technological Accumulation
Based on 20 years of experience and technological accumulation in mineral processing equipment manufacturing, our magnetic separation equipment series is not only comprehensive but also meticulously crafted in terms of reliability, efficiency, and adaptability.
Core Magnetic Separation Equipment Types We Offer

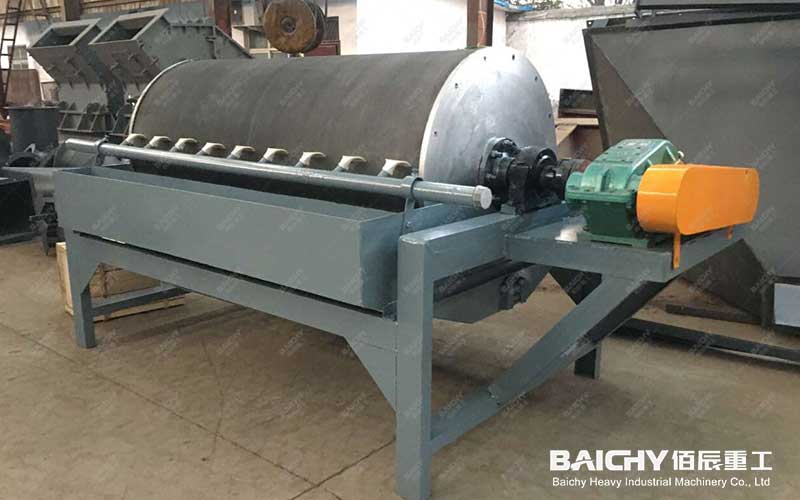

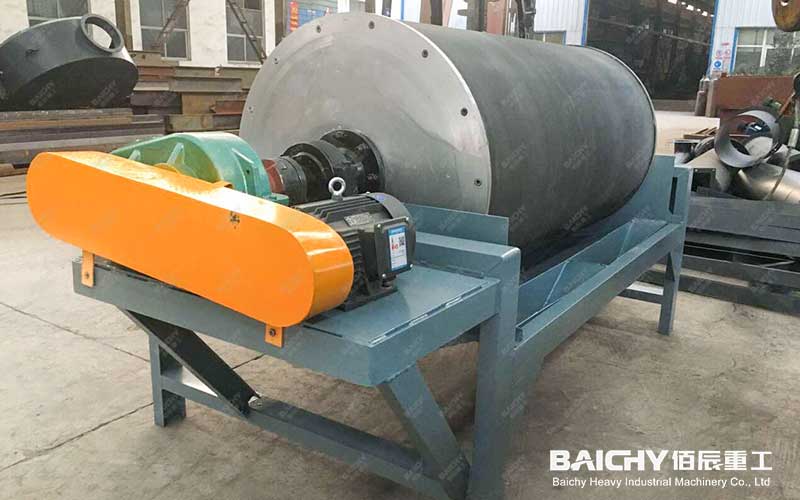

1. CT Series Permanent Magnet Drum Magnetic Separator: The mainstay model for wet operations, using high-performance neodymium iron boron magnets. It features a large magnetic wrap angle, deep magnetic field, high recovery rate, and stable operation, making it a classic choice for iron ore beneficiation.
2. Dry Magnetic Separator and Magnetic Drum: Suitable for water-scarce areas or scenarios where materials are sensitive to water. Used for pre-selection of waste materials or scrap steel recovery, requiring less investment and lower operating costs.
3. Vertical Ring High Gradient Magnetic Separator: Designed specifically for the purification of fine-grained weakly magnetic minerals (such as hematite, manganese ore, and tungsten ore), featuring high magnetic field strength and a large gradient, solving the problem of fine-grained recovery.
4. Electromagnetic Induction Roller Strong Magnetic Separator: Magnetic field strength is continuously adjustable, suitable for the separation of medium-grained weakly magnetic minerals, offering high separation accuracy.
Our Four Core Advantages
1. High Efficiency and Energy Saving: Optimized magnetic circuit design ensures high magnetic field strength and depth, achieving higher recovery rates and grades with the same energy consumption, directly reducing the cost per ton of ore processed.
2. Robust and Durable: Utilizing wear-resistant and corrosion-resistant materials and a heavy-duty structural design, key components are reinforced, adapting to harsh mining environments, resulting in a long service life and low failure rate.
3. Intelligent Adaptability: We not only provide equipment, but also solutions. Based on your ore property analysis report (magnetism, particle size, grade), we customize the most suitable model and process configuration for you.
4. Full-Lifecycle Service: From on-site survey, solution design, installation and commissioning to operation training and spare parts supply, our 20-year experienced team provides one-stop, full-lifecycle support.
Successful Application Cases: Data Proves Value
• Case 1: A large iron ore mine in North China: After crushing, our large-scale dry magnetic separator was used for pre-selection, resulting in a waste rejection rate of over 25%, increasing the subsequent ball mill's processing capacity by 30%, and saving millions of yuan in electricity costs annually.
• Case 2: A quartz sand processing plant in Central China: Our high-gradient magnetic separator was used to remove iron and titanium impurities from the quartz sand, increasing the silica purity of the product from 99.5% to over 99.9%, significantly improving whiteness, and substantially increasing the product's selling price.
• Case 3: An overseas tailings reprocessing project: Redeveloping an old tailings dam, using our designed scavenging magnetic separation process, successfully recovered tens of thousands of tons of qualified iron concentrate annually, turning waste into treasure and creating considerable economic benefits.
Equipment and Process Recommendations
A high-efficiency magnetic separation system requires appropriate equipment and processes. We recommend:
• Using our high-efficiency vibrating feeder to ensure uniform and stable material feeding into the magnetic separation zone.
• For wet magnetic separation, we recommend using our wear-resistant slurry pump and hydrocyclone assembly to form a closed-loop grinding-classification-magnetic separation cycle, optimizing particle size control.
• Consider configuring an online grade analyzer to achieve intelligent monitoring and automatic adjustment of the magnetic separation process, stabilizing product quality.
Frequently Asked Questions (FAQ)
Q1: How do I determine if my ore is suitable for magnetic separation?
A1: The key lies in mineral magnetic analysis. We recommend that you first conduct systematic ore composition and magnetic testing. We can provide technical support to help you analyze the type, content, and particle size of magnetic minerals (such as magnetite, pyrrhotite, hematite, etc.) in the ore, thereby determining the feasibility and expected results of magnetic separation.
Q2: How should I choose between dry and wet magnetic separation?
A2: This mainly depends on the ore properties, local water resources, and environmental requirements. Dry magnetic separation is suitable for water-scarce areas, dry ores, or materials that are sensitive to water, and is often used for coarse pre-selection. Wet magnetic separation provides more thorough separation, especially suitable for fine-grained minerals, with higher recovery rates and concentrate grades, and is currently the mainstream mineral processing method.
Q3: What is the biggest difference between your equipment and that of your competitors?
A3: We have focused on the research and development and process optimization of mineral processing equipment for 20 years. Our magnetic separation equipment is not just a standard product. The biggest difference lies in our ability to provide a deep integration of equipment + process know-how. We make targeted adjustments to details such as the magnetic system and tank based on your unique ore personality to ensure that the equipment performs optimally on your production line, not just to complete a sale.
