Limestone Crushing & Grinding - Ball mills
Limestone, as a fundamental raw material for industries such as cement, building materials, metallurgy, and chemicals, has its processing quality directly impacting the performance of the final product. In the long process chain from raw ore to qualified powder, crushing and grinding are two core links.
Primary and secondary crushing break down large pieces of limestone into smaller particles, while the subsequent grinding is the key step in determining the fineness and particle size distribution of the powder. In this step, the ball mill, with its unique working principle and wide applicability, has become the standard equipment for most limestone processing production lines, and its performance directly affects the efficiency of the entire production line and product competitiveness.

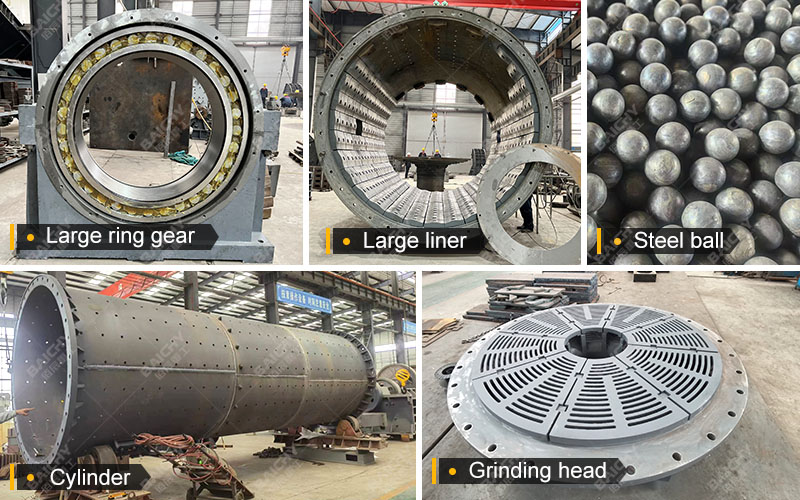

Diagram of the ball mill structure
How does a ball mill achieve fine grinding of limestone?
A ball mill is a horizontally placed cylindrical grinding device. Its working principle is: the cylinder is loaded with a certain proportion of grinding media (such as steel balls, steel segments). When the cylinder rotates driven by a motor, the grinding media are lifted to a certain height by friction and centrifugal force before falling, impacting, grinding, and shearing the limestone material inside the cylinder, thus grinding the material into fine powder. By controlling the feed particle size, mill speed, grinding media ratio, and loading amount, the fineness of the output product can be flexibly adjusted to meet different needs, from coarse powder to ultra-fine powder.
Advantages of a 20-Year Experienced Manufacturer's Solution
As a mining crushing equipment manufacturer with 20 years of experience, we deeply understand the characteristics and challenges of limestone processing. Our ball mill solutions offer the following significant advantages:
1. High-Efficiency and Energy-Saving Design: Optimized cylinder length-to-diameter ratio and liner shape improve grinding efficiency and reduce energy consumption per unit of product. Equipped with an advanced transmission system, it runs smoothly and reduces wasted energy.
2. Excellent Wear Resistance: Key components such as liners and grinding media use special materials such as high-chromium alloy and wear-resistant rubber, with optimized formulations tailored to the medium hardness characteristics of limestone, greatly extending service life and reducing maintenance costs.
3. Stable and Reliable Operation: The robust structural design and strict manufacturing processes ensure long-term stable operation under continuous heavy-duty conditions, resulting in a low failure rate and guaranteeing continuous operation of the production line.
4. Flexible Configuration Options: Open-circuit or closed-circuit grinding systems are available, perfectly matching with classifiers, dust collectors, and other equipment. Supports both dry and wet grinding processes to meet perse customer needs.
5. Intelligent Control Interface: Easily integrates with automation control systems, enabling remote monitoring, automatic feeding, and fault diagnosis, contributing to the construction of a modern intelligent factory.

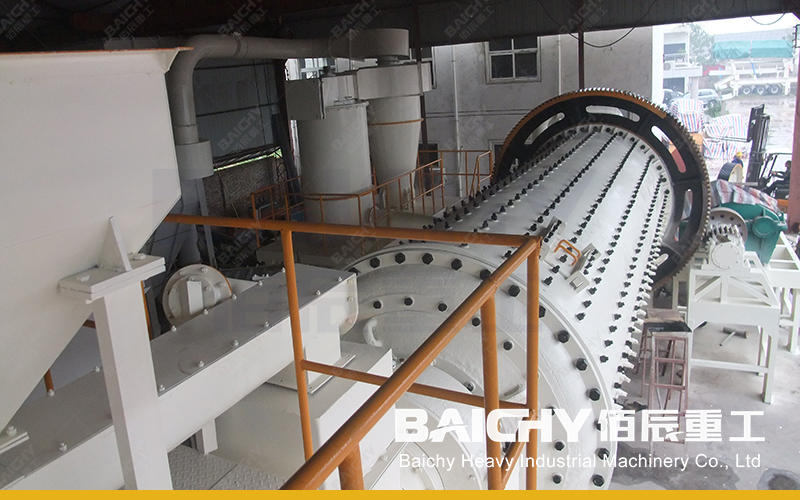

Application Case: Successful Implementation of Ball Mill in Limestone Grinding Production Line
Application Case: Successful Implementation of Ball Mill in Limestone Grinding Production Line
Project Background: A large domestic cement group's limestone raw material grinding production line with an annual output of 1 million tons.
Core Requirements: The required product fineness is <10% residue on an 80μm square mesh sieve, with stable system output, low energy consumption, and reliable equipment operation.
Our Solution: We provided a Φ4.2×13m large ball mill as the core grinding equipment, using a closed-circuit grinding system, and equipped with a high-efficiency classifier.
Achieved Results:
* The equipment has been operating stably for over 5 years since commissioning, with an average annual operating rate exceeding 95%.
* The product fineness consistently meets the standards, providing high-quality raw materials for subsequent cement clinker calcination.
* Compared to the customer's original old equipment, the unit product power consumption decreased by approximately 18%, resulting in significant energy savings.
* The wear parts have a long replacement cycle, significantly reducing maintenance costs and downtime.
This project has become a benchmark production line in the region, fully demonstrating our ball mill's leading technology in large-scale, high-efficiency limestone processing.
Related Equipment Recommendations
For a complete limestone processing line, the ball mill needs to work in conjunction with front-end crushing equipment:
* Jaw Crusher: An ideal choice for primary crushing, used to crush large pieces of limestone to a medium size, providing suitable feed for the ball mill.
* Impact Crusher/Cone Crusher: Used for secondary crushing, further reducing the particle size before grinding, achieving more crushing, less grinding, and improving overall system energy efficiency. * Bucket Elevator and Belt Conveyor: Responsible for the stable transportation of materials between various equipment.
* Pulse Jet Bag Filter: Ensures that the entire crushing and grinding process meets environmental standards, achieving green production.
We can provide EPC turnkey services for everything from single machines to the entire crushing-grinding-conveying-dust removal system.
Frequently Asked Questions (FAQ)
Q1: When processing limestone, should a ball mill use steel balls or steel segments?
A1: Both are possible; the choice depends on the target fineness. Steel balls have a strong impact force and are suitable for coarser grinding; steel segments have a larger contact area with the material, resulting in higher grinding efficiency and are more suitable for producing fine and ultra-fine powders. A mixed ratio can usually be used to achieve optimal results.
Q2: What could be the reasons for a ball mill's production capacity not meeting standards?
A2: Possible reasons include: oversized feed particle size, insufficient or improperly proportioned grinding media, severely worn liners, poor ventilation leading to slow material flow, or mismatched efficiency of system separation equipment. A systematic investigation is needed.
Q3: How can the operating noise of a ball mill be effectively reduced?
A3: The following measures can be taken: installing a sound insulation cover on the outside of the cylinder; using rubber liners to replace some metal liners; ensuring a solid equipment foundation to reduce vibration transmission; and regularly checking gear meshing and ensuring proper lubrication.
Q4: Do your ball mills support non-standard customization?
A4: Yes. Based on 20 years of design and manufacturing experience, we can provide non-standard customized design and manufacturing based on the customer's specific ore properties (such as humidity, hardness), target capacity, product fineness, installation site, and other conditions.
Q5: Which is more suitable for limestone: wet grinding or dry grinding?
A5: This depends on the final application. Dry grinding is more widely used, the system is relatively simple, and the product does not require drying; wet grinding is usually used in situations requiring a slurry product (such as certain chemical processes), which produces less dust, but requires subsequent dewatering. We will recommend a suitable solution based on your process route.
