Wet Ball Mill
Introduction
In modern mineral processing plants, the fine grinding of ore is a core process that determines the final concentrate grade and recovery rate. As a manufacturer of mobile crushing equipment for mines, we understand that systematic coordination from coarse crushing to fine grinding is crucial for productivity. Industrial wet ball mills are key equipment connecting crushing and separation, efficiently transforming medium-sized ore into fine particles suitable for separation. This article will provide a comprehensive analysis of this equipment, which plays a core role in the processing of metallic and non-metallic minerals.
Overview of Industrial Wet Ball Mill Technology
The industrial wet ball mill is a large-scale, continuous wet grinding equipment designed for processing large quantities of mineral raw materials. Its working principle is as follows: a certain proportion of steel balls (or ceramic balls and other grinding media) and the mineral material to be ground are loaded into a horizontally rotating cylinder, along with an appropriate amount of water to form a slurry. As the cylinder rotates, the grinding media are lifted to a certain height and then dropped, grinding the mineral raw materials to the target particle size (usually tens to hundreds of micrometers) through impact, grinding, and abrasion. The resulting slurry can be directly used in subsequent wet processes such as flotation, gravity separation, or leaching.
Core Advantages of Industrial Wet Ball Mills
Compared with dry grinding or other grinding methods, large industrial wet ball mills demonstrate irreplaceable advantages in the field of mineral processing.
Excellent Grinding Efficiency and Product Quality
Under the lubrication and buffering effect of water, the slurry has good fluidity, which can promptly remove qualified particle size products, effectively reducing "over-grinding" and making the product particle size distribution more uniform. This is extremely beneficial for subsequent mineral separation (such as flotation), improving separation indicators and concentrate quality.
Dust-Free and Environmentally Friendly Production
The entire grinding process is carried out in a closed system in the form of a slurry, completely eliminating dust pollution at the source. This not only creates a clean working environment but also fully complies with increasingly stringent global environmental regulations, reducing environmental risks and costs for enterprises.
Strong Adaptability and Reliable Operation
Industrial wet ball mills are not sensitive to the moisture content of the material and can handle ores with a certain degree of viscosity. Its robust structure and mature design enable long-term, continuous, and reliable operation even in harsh mining environments, ensuring the smooth operation of the entire beneficiation plant production process.
Facilitating Automation and Large-Scale Operations
Modern industrial wet ball mills are easily integrated into closed-circuit systems with equipment such as hydrocyclones and spiral classifiers. Automatic control is achieved through online particle size analyzers and concentration meters, ensuring stable product quality. Their large single-unit processing capacity makes them ideal for modern, large-scale, and continuous mineral processing plants.
| Key Words | 1 t/h 900x1800 Small Ball Mill |
|---|---|
| Product Model | Wet Ball Mill |
| Feed Size | ≤25mm |
| Motor Power | 18.5-4500kw |
| Capacity | 0.65-615t/h |
| Core Functions | Grinding precision and particle size controllability |
| Brand | Baichy Heavy Industry |
| Packing | Standard containers，Nude Packing，Wooden boxes, etc |
| Installation | Engineer Guide |
| Factory visit | Welcomed Warmly |
| Export Countries | Southeast Asia, Central Asia, South America, North America, Africa |
| Payment | T/T,L/C payment,Paypal...etc |
| Please note: The above table data is for reference only. For specific information, please contact us. | |
Application Case: Successful Application of Industrial Wet Ball Mills in a Copper Mine Beneficiation Plant
Taking a large porphyry copper mine beneficiation plant as an example, its daily processing capacity exceeds 50,000 tons. The front end uses large mobile gyratory crushers and semi-mobile secondary crushing stations to crush the raw ore to -12mm. The crushed product is transported by conveyor belt to the grinding workshop and fed into two parallel Φ6.5×9.5m industrial wet ball mills. The mills form a closed circuit with a set of hydrocyclones, stably grinding the ore to a fineness of 70% passing -200 mesh. The resulting slurry flows directly into the flotation operation area. This wet ball mill system operates stably, laying a solid foundation for improving subsequent flotation recovery rates, and enabling the plant's copper recovery rate to consistently remain above 89%. This case fully demonstrates the core position of industrial wet ball mills in large-scale mineral wet grinding.

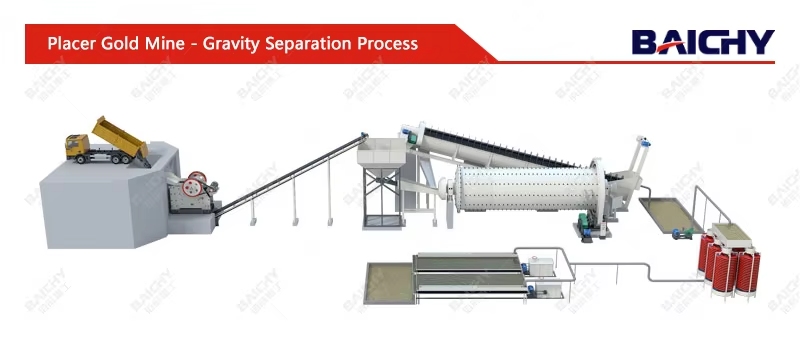

Recommended System Synergy from Crushing to Grinding
An efficient mineral processing process begins with a rational crushing and grinding system configuration. We recommend a synergistic model of "mobile crushing pre-screening + fixed/semi-mobile wet ball milling":
Front-end mobile crushing system: Deploying our mobile jaw crushing stations and mobile cone crushing stations near the mining area can significantly reduce the transportation distance of raw ore and produce a product with uniform particle size that meets the optimal feed size for the ball mill (usually around -20mm) through pre-screening. This significantly reduces the energy consumption of the subsequent wet ball mill and improves overall system efficiency.
Back-end wet ball milling system: Fixed industrial wet ball mills, with their stability, large processing capacity, and high reliability, are the backbone of the grinding section in large beneficiation plants. For projects requiring phased mining or initial testing, a modularly designed semi-mobile wet ball mill plant can also be considered, offering a degree of flexibility.
Mobile Jaw Crusher
Mobile Cone Crusher
Frequently Asked Questions (FAQ)
Q1: What are the key technical parameters of an industrial wet ball mill? How is it selected?
A1: Key parameters include: cylinder diameter and length (determining processing capacity), motor power, rotational speed, grinding media (steel ball) material, size and filling rate, and feeding and discharging methods. Selection is a complex process, requiring detailed ore grindability tests (such as the Bond work index), target processing capacity, product fineness requirements, and overall plant process design. This is usually calculated and planned by a professional design institute or equipment supplier.
Q2: How to reduce energy consumption and steel consumption of industrial wet ball mills?
A2: Reducing energy and steel consumption is a key operational focus. Main measures include:
Optimizing grinding media: Selecting appropriate steel ball material, size, and grading based on ore hardness, and replenishing regularly.
Using high-performance liners: Using corrugated or graded liners made of wear-resistant materials such as rubber and high-chromium cast iron can improve efficiency and reduce wear.
Controlling grinding concentration and circulating load: Controlling the pulp concentration and the circulating load of the closed-circuit classification system within the optimal range to avoid "overloading" or "empty grinding".
Adopting advanced drive systems: Such as permanent magnet synchronous motors and high-efficiency reducers.
Q3: Is the industrial wet ball mill suitable for all minerals?
A3: While its applicability is very broad, it is not suitable for all. It is extremely suitable for wet grinding of metal ores (such as copper, gold, iron, lead-zinc ore) and most non-metallic minerals (such as quartz, feldspar, phosphate rock) that require subsequent wet processes (flotation, leaching). However, for projects requiring dry powder products (such as cement, some coal powder), materials that change properties when exposed to water, or projects in extremely water-scarce areas, careful evaluation is needed, and alternative solutions such as dry ball milling may need to be considered.
