In the fields of mining machinery and aggregate processing, the choice of crushing equipment directly impacts the efficiency of the entire production line, the quality of the finished product, and operating costs. Among various crushing equipment, the horizontal shaft impact crusher, with its unique crushing principle and excellent performance, plays an indispensable role, particularly in artificial sand making and fine material crushing. This article will provide a comprehensive understanding of this high-performance equipment.

1. What is a horizontal shaft impact crusher?

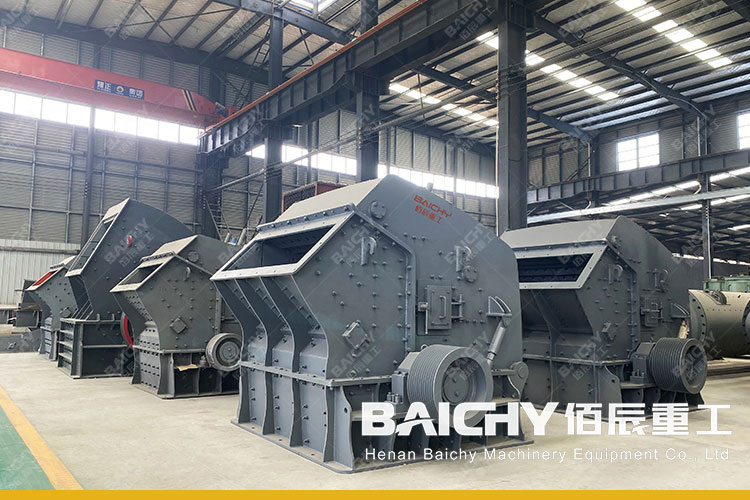

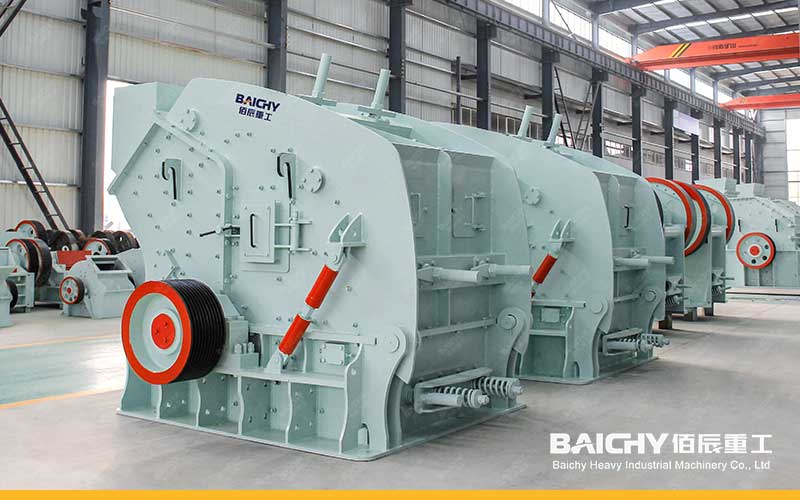

The horizontal shaft impact crusher, also often referred to as an impact sand maker, is a highly efficient crushing device that utilizes a combination of the "rock-on-rock" and "rock-on-iron" principles. Its core feature is a horizontally arranged main shaft with a throwing impeller (i.e., a "horizontal shaft"). The high-speed rotating impeller propels the material, where it collides and rubs against the surrounding guard plate or the material itself, achieving crushing and shaping.

2. Core Working Principles: "Rock-on-Stone" vs. "Rock-on-Iron"

1. Rock-on-Stone: After being accelerated at the center of the throwing impeller, the material is evenly thrown from the impeller's periphery, experiencing intense impact and friction with the naturally formed material lining within the crushing chamber. This method is primarily used for material crushing and shaping, effectively reducing equipment wear and producing cubic particles.

2. Rock-on-iron crushing: Material is thrown directly onto the peripheral guard plate (impact block) for impact crushing. This method offers higher crushing efficiency and is suitable for applications requiring a high crushing ratio.

Modern, advanced horizontal impact crushers typically allow operators to flexibly adjust the ratio of "rock-on-rock" and "rock-on-iron" crushing based on material characteristics and product requirements, thereby achieving an optimal balance between efficiency and finished particle shape.

III. Outstanding Advantages of Horizontal Impact Crusher

• Excellent Particle Shape: The crushed finished material is mostly cubic, with very low flake content and well-graded gradation, making it an ideal choice for high-quality concrete and asphalt aggregates.

• High Efficiency and Energy Saving: The crushing efficiency is far higher than that of traditional jaw crushers and cone crushers. With the same power consumption, it can process more material and consume less energy per unit of product.

• Multi-Purpose: It can be used not only for sand production but also for medium and fine crushing of medium-hard materials, streamlining the process.

• Low operating costs: Core wear parts, such as the impeller, channel plate, and peripheral guard plate, are made of highly wear-resistant materials, offering a long service life and easy replacement, effectively reducing maintenance costs and downtime.

• Environmentally friendly: Typically featuring a closed structure, it can be effectively connected to a dust removal system, reducing dust pollution and meeting environmentally friendly production requirements.

IV. Main Application Areas

• Artificial sand production: This is core sand production equipment for large-scale projects such as hydropower stations, highways, and high-speed railways.

• Metal mining: Used for fine crushing of ore to improve grinding efficiency.

• Building materials and metallurgy: Processing of various medium-hard materials such as limestone, granite, and basalt.

• Industrial waste processing: Crushing and recycling steel slag and construction waste.

V. How to choose the right model?

When selecting a horizontal impact crusher, consider the following factors:

• Material properties: Hardness, moisture content, mud content, and feed particle size.

• Capacity requirements: Expected hourly or daily output. • Finished product requirements: Target particle shape, fineness modulus, etc.

• Equipment configuration: Motor power, automation control level, etc.

As a key component in modern aggregate processing, the horizontal shaft impact crusher has been widely validated by the market for its high efficiency, energy efficiency, and high-quality finished product. Whether constructing a new production line or renovating an existing one, choosing the right horizontal shaft impact crusher is a wise move to enhance your company's core competitiveness.

If you have further questions about horizontal shaft impact crushers or need specific selection requirements, please feel free to contact us. Our technical experts will provide you with one-on-one professional service.
