1. Core advantages: Why choose PE400x600 jaw crusher?
• Efficient coarse crushing capacity
The feed size is ≤340mm, and the adjustable range of discharge is 40-100mm, which is suitable for the primary crushing of hard materials such as granite, basalt, and river pebbles.
The processing capacity is 16-64 tons/hour, which meets the needs of small mines, construction waste recycling, highway aggregate processing and other scenarios.
• Compact and sturdy design
The body size (about 1700×1800×1600mm) and weight are 6-8 tons, taking into account the convenience of mobility and operational stability.
High manganese steel jaw plate + hydraulic adjustment device, wear-resistant and low maintenance cost.
• Low cost and high return
Compared with large crushing equipment, energy consumption is reduced by 30%, which is suitable for small and medium-sized enterprises with limited budgets.
Detailed explanation of technical parameters
| Parameter item | Value/Description |
| Model | PE400×600 jaw crusher |
| Feed port size | 400×600mm (16×24 inches) |
| Maximum feed | particle size | ≤340mm |
| Discharge port adjustment range | 40-100mm |
| Processing capacity | 16-64t/h (depending on the hardness of the material) |
| Motor power |
Note: Support customized motors (diesel engine/frequency conversion motor), additional dust removal device or mobile chassis.

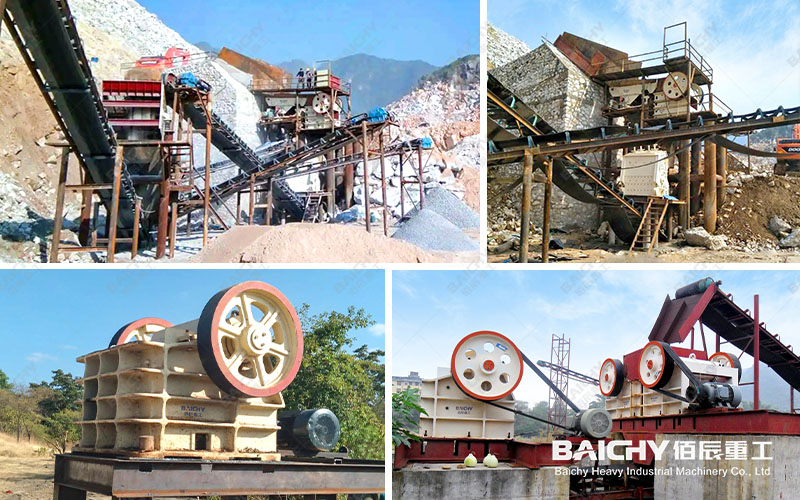

Applicable scenarios and cases

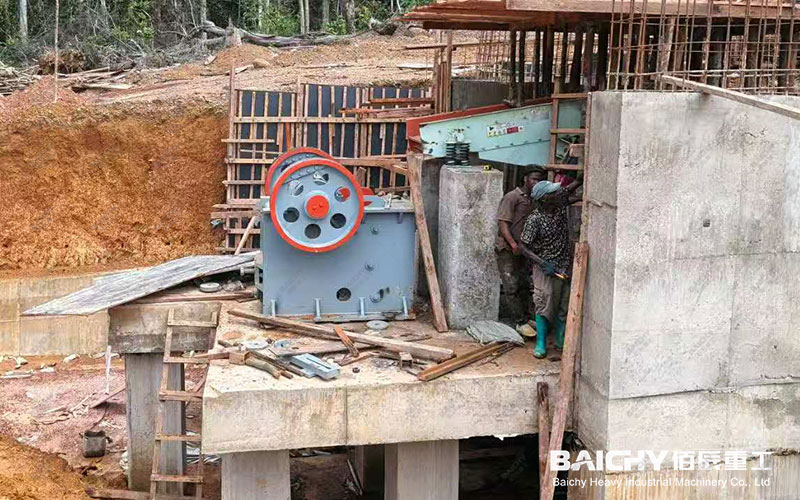

1. Mining
Used for primary crushing of small ores such as gold and iron ores, with a large crushing ratio and reduced secondary crushing pressure.
Case: A lead-zinc mine project in Yunnan, with a belt conveyor to form a simple production line, with an average daily processing capacity of 500 tons.
2. Construction waste recycling
Crushing construction waste such as concrete blocks, bricks and tiles, the output can be reused as roadbed aggregate.
3. Road/railway building materials
Produce 05-10mm, 10-20mm crushed stones that meet GB standards and are directly used for base paving.
FAQs (FAQ)
Q1: What is the price of the PE400x600 jaw crusher?
Depending on the configuration (motor brand, whether freight is included, etc.), the price range is usually ¥50,000-80,000, and installment payment plans are provided.
Q2: Compared with PE250×400, what are the advantages?
The processing capacity is increased by 2 times, which is suitable for projects with higher production requirements, and the life of the jaw plate is extended by 30%.
Q3: Does the equipment require foundation construction?
A concrete foundation needs to be poured (provide drawings), and if a mobile chassis is selected, it can be operated directly.
Service guarantee
✔ Free technical consultation: recommend the best crushing solution based on material characteristics.
✔ 24-hour response: provide remote guidance or on-site maintenance services.
✔ Accessories supply: Jaw plates, side guards and other wearing parts are in stock all year round.
