PCX1414 High-Efficiency Fine Crusher Technical Solution
As a manufacturer with twenty years of experience in the mining crushing equipment field, we deeply understand the impact of each crushing process on final output and economic efficiency. Among numerous core equipment, the fine crusher plays a crucial role in connecting the upstream and downstream processes. Today, we will provide an in-depth analysis of a market-proven star product – the PCX1414 high-efficiency fine crusher – revealing how it has become a powerful tool for increasing productivity and reducing costs.
Why is the PCX1414 synonymous with high efficiency?
The PCX1414 is more than just a model number; it represents a mature and optimized fine crushing technology system. The PCX series of vertical shaft impact crushers (or sand making machines) are renowned for their stone-on-stone and stone-on-metal crushing principles, while 1414 precisely indicates the diameter and width dimensions of its core rotor. The PCX1414 high-efficiency fine crusher is a mainstay in this series, specifically designed for the third and fourth stage crushing (fine crushing and sand making) of materials such as limestone, granite, river pebbles, and construction waste, for medium to high-capacity applications. Its high efficiency is reflected in its precise structural design, which maximizes energy utilization and minimizes wear costs.
Technical Solution Overview: Precision Design, Meticulous Manufacturing
The technical core of the PCX1414 high-efficiency fine crusher lies in its deep-cavity rotor design, multi-directional adjustable wear plates, and efficient waterfall feeding system.
• Deep-cavity rotor: With a larger capacity, it allows more material to form a dense layer within the cavity, achieving high-speed impact and grinding between materials in the stone-on-stone self-impact crushing process. This not only results in high crushing efficiency but also significantly reduces wear on the wear plates and flow channels.
• Modular wear parts: Key wear parts are made of high-chromium alloy or composite ceramic materials, and feature a modular design for quick replacement. They can also be repositioned to balance wear, minimizing maintenance time and costs.
• Hydraulic opening device: The rear cover of the equipment can be easily opened via a hydraulic system, making inspection, maintenance, and replacement of the rotor interior and wear parts safe and convenient. • Intelligent Lubrication System: Equipped with an automatic lubrication device as standard, ensuring the spindle bearings operate under optimal conditions and extending the lifespan of core components.
Core Advantages: Excellent Performance Forged from Twenty Years of Experience
Choosing the PCX1414 high-efficiency fine crusher technology solution will provide you with the following core advantages:
1. Excellent Product Particle Shape: The produced aggregate particles are cubic in shape, with continuous gradation and extremely low needle-like and flaky content, fully meeting national high-standard aggregate requirements and offering higher value.
2. Low Operating Costs: The stone-on-stone principle reduces metal consumption, modular wear parts have a long lifespan, and unit product energy consumption is low, resulting in a comprehensive operating cost reduction of approximately 30% compared to traditional fine crushers.
3. Powerful Processing Capacity: For medium-hardness materials, the hourly output can reach 120-180 tons, making it an ideal choice for building stable, high-yield aggregate production lines.
4. Environmentally Friendly and Easy Maintenance: The equipment runs smoothly with low noise and dust pollution; hydraulic opening and modular design allow daily maintenance to be completed in just a few hours.
5. Multi-functional and Flexible Application: By simply adjusting the rotation speed, feeding method, and cascade center, it can flexibly switch between stone-on-stone and stone-on-iron modes, easily meeting different process requirements from shaping and sand making to simple crushing.

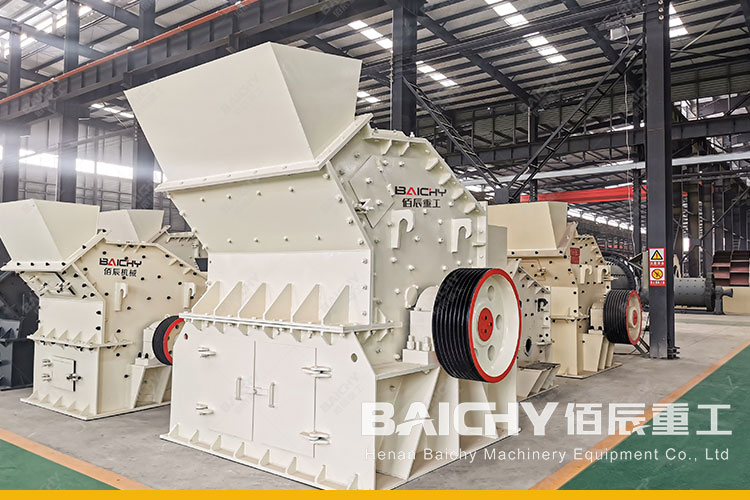

PCX1414 High-Efficiency Fine Crusher Technical Solution
Success Stories: Verified by On-Site Performance
In an aggregate production line upgrade project for a large cement group in North China, we replaced two old fine crushers with one PCX1414 high-efficiency fine crusher. After the upgrade:
• Increased Capacity: The output of finished sand (0-5mm) is stable at 150 tons/hour.
• Improved Quality: The fineness modulus is adjustable, and the finished particle shape has been highly recognized by the owner and downstream ready-mix concrete companies.
• Reduced Costs: The lifespan of wear parts has been extended by 2 times, and the power consumption per ton has decreased by 22%, saving over one million yuan in maintenance and energy costs annually.
Related Equipment Recommendations
To maximize the efficiency of the PCX1414, we recommend configuring a complete production line solution:
• Feeding Equipment: ZSW series vibrating feeder, ensuring uniform and continuous feeding. • Coarse/Medium Crushing Equipment: PE series jaw crusher and PEX series fine jaw crusher or single-cylinder hydraulic cone crusher, forming a high-efficiency primary crushing system.
• Screening Equipment: 3YK/4YK series circular vibrating screen, achieving efficient classification and circulation.
• Environmental Protection Equipment: Pulse bag dust collector, ensuring clean production throughout the entire line.
Frequently Asked Questions (FAQ)
Q1: Is the PCX1414 suitable for processing very hard granite?
A: Yes, it is very suitable. For high-hardness materials, we recommend using the stone-on-stone cascading feed full-center mode, where the material is accelerated at the center of the rotor and then collides with the surrounding material lining, achieving stone crushing stone, which effectively crushes the material while protecting the wear parts.
Q2: What are the feed size requirements for the equipment?
A: The recommended maximum feed size is no more than 50mm. The best feed comes from the qualified product of the previous stage of medium crushing equipment (such as a cone crusher or impact crusher), which will ensure that the fine crusher operates at its most efficient and economical state.
Q3: How long does it take from installation to commissioning?
A: We provide integrated turnkey engineering services. From foundation design, equipment shipment, on-site installation guidance to commissioning and operation, a standard production line can usually be completed within 2-3 months.
Q4: Can you provide wear parts and after-sales service?
A: Absolutely. As a manufacturer, we provide global supply of original spare parts and have a professional after-sales service team that can provide remote technical support or on-site service to ensure the efficient operation of your equipment throughout its lifespan.
