Is PE500×750 Jaw Crusher the Right Primary Crushing Equipment for Your Mexican Mining Project?

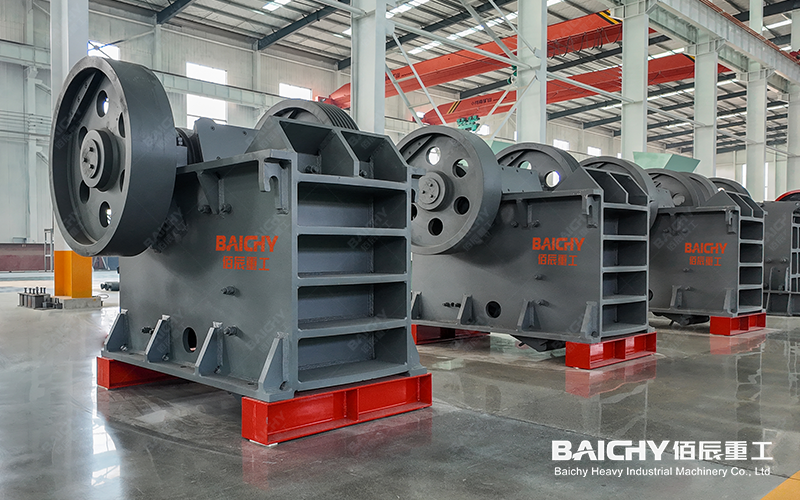

PE500×750 Jaw Crusher | Preferred Coarse Crusher | Mexico

The PE500×750 jaw crusher is a medium-sized coarse crushing equipment, widely used in mining, metallurgy, building materials, highway, railway, water conservancy, and chemical industries as a primary crushing unit in sand and gravel production lines. This equipment employs a reciprocating compression crushing principle, capable of processing various ores and large materials with a compressive strength not exceeding 320 MPa. The maximum feed size is 425 mm, and the processing capacity is 40-110 tons/hour.

Technical Parameters

Core Advantages

1. High Crushing Efficiency

The PE500×750 jaw crusher adopts a deep-cavity "V"-shaped crushing chamber design with no dead zone, improving feeding capacity and output. It has a large crushing ratio and produces uniform product particle size, meeting the discharge requirements of different users.

2. Energy Saving and Environmental Protection

The equipment adopts an optimized deep-cavity crushing design, achieving 15%-30% energy savings per unit and more than doubling the system's energy savings. Equipped with a centralized lubrication system, lubrication is faster and maintenance is less demanding.

3. Low noise, compatible with dust removal equipment, fully compliant with national environmental protection standards.

4. Reliable Structure

The moving jaw assembly is constructed from high-quality cast steel components, and the heavy-duty eccentric shaft is machined from forged blanks. Larger and more durable eccentric shaft bearings are used, resulting in higher load-bearing capacity. High-strength manganese steel is used, cast in one piece, offering advantages such as wear resistance, pressure resistance, and long service life.

5. Easy Maintenance

The shim-type discharge port adjustment device is reliable, convenient, and has a wide adjustment range. The structure is simple, the operation is reliable, operating costs are low, maintenance is more convenient, and downtime for maintenance is greatly reduced.

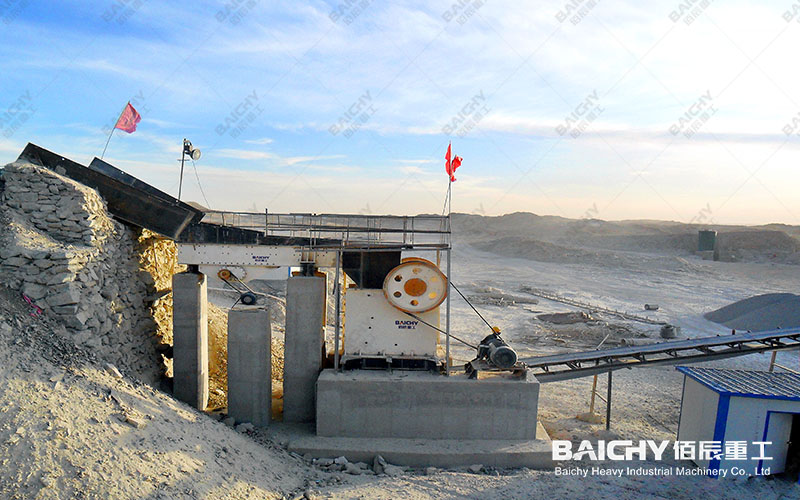

PE500x750 jaw crusher crushing site

Application Cases

Case 1: Small-scale Stone Quarry in South Africa

A small-scale stone quarry in South Africa uses a PE500×750 jaw crusher to process limestone materials, achieving a production capacity of 100 tons per hour. Customer feedback indicates stable equipment operation, meeting production targets, and resulting in good economic returns. The equipment operates stably, and the crushing chamber adopts a symmetrical "V"-shaped structure with a deep crushing chamber and no dead zones, improving feeding capacity and output.

Case Study 2: Potassium Feldspar Crushing Production Line

A potassium feldspar production line consists of a PE500×750 jaw crusher and a PYB900 cone crusher. Through a two-stage crushing process, the potassium feldspar ore is crushed to the required particle size. This production line features a high degree of automation, low operating costs, and produces finished products with uniform particle shape and low needle-like/flaky content, solving the problem of unqualified particle shape in traditional single-stage crushing.

Case Study 3: Stone Crushing Production Line

A stone crushing production line combining a PE500×750 jaw crusher and a PF1010 impact crusher has low requirements for the operating environment and strong adaptability. The entire PLC adjustment system allows for remote control, a high degree of automation, and produces finished products with uniform particle shape and low needle-like/flaky content.

Equipment Selection Guide

Selection Points

1. Material Characteristics: Select the appropriate type based on the material's hardness, moisture content, and particle size requirements. The PE500×750 is suitable for various ores and rocks with a compressive strength not exceeding 320 MPa.

2. Production Capacity: Select the appropriate model based on daily output requirements. The PE500×750 has a processing capacity of 40-110 t/h, suitable for small to medium-sized production lines.

3. Discharge Particle Size: The discharge port adjustment range is 50-100 mm, adjustable according to finished product particle size requirements.

4. Investment Budget: Consider equipment price, operating costs, and maintenance expenses to select equipment with the highest cost-effectiveness.

Applicable Materials

• Granite, marble, basalt, limestone, quartz

• River pebbles, iron ore, copper ore, potassium feldspar

• Construction waste, coal gangue, and other solid waste

Frequently Asked Questions

FAQ 1: What materials is the PE500×750 jaw crusher suitable for processing?

This equipment is suitable for crushing various ores and rocks with a compressive strength not exceeding 320 MPa, including granite, basalt, limestone, and iron ore. For materials with higher hardness, a jaw crusher is recommended as the primary crushing equipment.

FAQ 2: What is the maintenance cycle for the equipment?

It is recommended to replace the moving jaw plate every 500 hours to balance wear on both sides. A centralized lubrication system reduces maintenance workload, and under normal use, the equipment's trouble-free operation rate can exceed 85%.

FAQ 3: How to improve the service life of the equipment?

Using moving jaw plates made of high-manganese steel (Mn13Cr2) and fixed jaw plates made of high-chromium cast iron (Cr15Mo3), and custom-made accordingly, significantly reduces the equipment failure rate and increases the overall service life by 40%. Regular wear monitoring is essential. A laser rangefinder is used to monitor tooth height changes in real time, with a warning threshold of tooth height loss ≥15mm.

Related Recommendations

Supporting Equipment

• Secondary Crushing Equipment: PYB900 Cone Crusher, PF1010 Impact Crusher

• Screening Equipment: Vibrating Screen, Circular Vibrating Screen

• Conveying Equipment: Belt Conveyor, Vibrating Feeder

• Sand Making Equipment: VSI Sand Making Machine, Impact Sand Making Machine

Production Line Configuration

• Small Production Line: PE500×750 Jaw Crusher + Impact Crusher + Vibrating Screen

• Medium Production Line: PE500×750 Jaw Crusher + Cone Crusher + Vibrating Screen

• Large Production Line: Multiple Jaw Crushers + Multi-stage Crushing + Screening System
