The Critical Role of Acid-Resistant Wet Ball Mills in Pilot-Scale Nitrocellulose Production
In the chemical and materials science fields, pilot production is a crucial step in transforming laboratory breakthroughs into industrial reality. The production of nitrocellulose—a functional polymer widely used in coatings, explosives, plastics, and high-end composites—places extremely demanding demands on equipment. Recently, we encountered a specific and specialized requirement: specialized wet ball milling and homogenizing equipment for a pilot production line capable of handling a mixture of concentrated nitric acid and sulfuric acid. This involved more than just a procurement exercise; it presented a profound challenge in terms of material corrosion resistance, mechanical design precision, and process reliability.
1. Why does nitrocellulose production require such specialized equipment?
The preparation of nitrocellulose involves reacting cellulose with a mixture of concentrated nitric acid and sulfuric acid. This process is not only highly corrosive but also extremely sensitive to reaction conditions, such as temperature and mixing uniformity. Any contamination by metal ions or inhomogeneous mixing can result in poor product quality or even hazardous conditions. Therefore, resistance to strong acid corrosion and contamination-free grinding were central to the equipment design.
2. The customer's requested wet ball mill is not a standard product.
It must meet the following requirements:
• Process 10-100 kg of suspension per batch (working volume 20-150 liters), suitable for flexible pilot-scale production and process optimization.

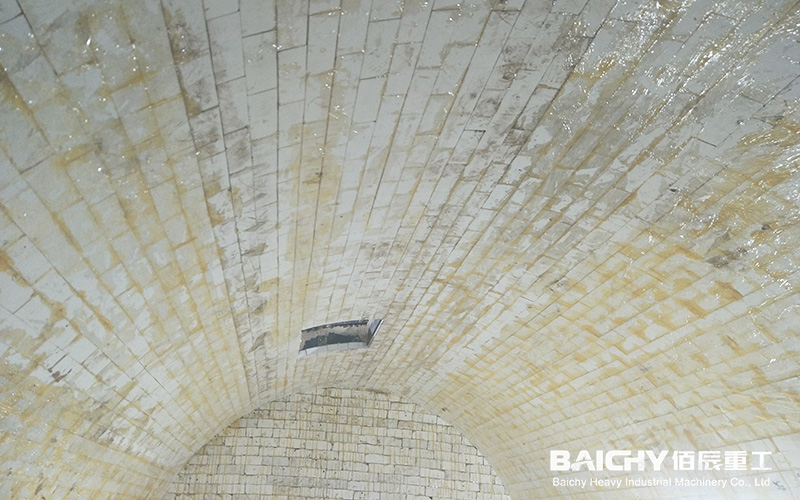

• All wetted parts must be made of materials resistant to HNO₃ + H₂SO₄ mixtures: options include ceramic (Al₂O₃ ≥92%), ZrO₂, PTFE/PFA linings, or Viton/EPDM rubber—the stability of these materials in extreme chemical environments is crucial.
• Ceramic grinding media (Al₂O₃ or ZrO₂): Avoid metal contamination while ensuring grinding efficiency.
• Fully sealed, acid-resistant design: From PTFE or Viton seals to acid-resistant pump and valve options, every detail is crucial for safety and durability.
3. Pilot Stage: The Critical Bridge from Small Batch to Industrialization
Pilot production is often underestimated, but it is actually a decisive step in the successful commercialization of innovations. The goal of designing a pilot line is not just to produce a small amount of product. More importantly, it is to:
• Verify the feasibility of the laboratory process upon scale-up;
• Optimize parameters (such as grinding time, acid concentration, and temperature control);
• Eliminate any potential problems that may arise during large-scale production, such as heat buildup, reduced mixing efficiency, and material corrosion.
The client's specific requirements for no cooling and temperature control below 40°C indicate that the thermal control requirements at this stage of the process are not extreme. However, the equipment must ensure that it does not overheat due to friction or reaction exotherm during extended operation. The proposed variable frequency drive motor further provides flexible and adjustable grinding speeds to accommodate process optimization requirements for different batches.
4. Supply Chain, Delivery, and Technical Support Are Equally Important
For pilot projects, equipment delivery, installation, and ongoing support are equally critical. The client requested FOB or CIF shipping to the Port of Gdansk, Poland (or the nearest European port). This not only impacts cost but also logistics efficiency and risk management. Providing detailed technical data sheets, drawings, weights and dimensions, and warranty terms requires suppliers to possess global supply chain capabilities and a transparent after-sales service system. If equipment failures or process compatibility issues arise during the pilot phase, a rapid technical response can potentially save the entire project timeline.
5. Our Perspective: Selecting pilot equipment is a technical decision, but also a strategic one.
When selecting pilot equipment, companies are investing not just in a single machine but in the future of the entire technology. A wet ball mill that can withstand mixed acids, avoid contamination, and provide reproducible batch results will be the cornerstone of nitrocellulose process development. It should be modular, flexible, and easy to maintain to accommodate continuous optimization of process parameters.
In addition, material selection (e.g., ceramic vs. PTFE lining) can impact cost, durability, and cleaning difficulty, while drive method (variable frequency control) and discharge design (manual vs. acid-resistant pump) directly impact ease of operation and batch consistency. These decisions must be based on in-depth process knowledge, not simply price comparisons.
In pilot development of chemical materials, equipment is not just a tool; it is a partner. A successful nitrocellulose pilot plant is essential for customized, corrosion-resistant wet ball milling and homogenization solutions like this one. We look forward to collaborating with more forward-thinking companies and research institutions to jointly advance material innovation from the laboratory to large-scale production.
