Choosing the right crushing equipment is crucial for profitability in the silica sand industry. A high-performance powerful impact silica sand crusher can significantly boost your production output, improve product quality, and lower operating costs. This comprehensive guide delves into the workings, advantages, and real-world applications of our top-tier impact crusher, designed to deliver unparalleled value at the most competitive price.
Deep Dive: The Need for Impact Crushing in Silica Sand Processing
Silica sand, primarily composed of silicon dioxide, is exceptionally hard and abrasive. This poses a significant challenge for crushing equipment, as it leads to rapid wear and tear. Traditional jaw or cone crushers, which rely on compression, often struggle with this material. They can produce an excessive amount of fines and irregular, angular particles that are less desirable for high-value applications like glassmaking, foundry work, and hydraulic fracturing (frac sand).
Impact crushers solve this problem through a fundamentally different principle. They use high-speed rotors to hurl feed material against sturdy anvils or the crushing chamber walls. This "rock-on-rock" or "rock-on-steel" action is ideal for silica sand because it promotes a natural breaking along cleavage planes, resulting in a superior product.
Why Impact Crushing is Superior
-
Excellent Particle Shape: Produces more cubical, well-rounded grains with fewer flaws, which enhances the packing density and performance of the final sand product.
-
High Reduction Ratio: Capable of reducing large feed sizes to the desired granularity in a single stage, simplifying the circuit layout.
-
Control Over Fines Generation: Modern impact crushers allow for precise adjustment of rotor speed and crusher settings, offering better control over the final product's gradation compared to compression crushers.
Overview of Our Powerful Impact Silica Sand Crusher

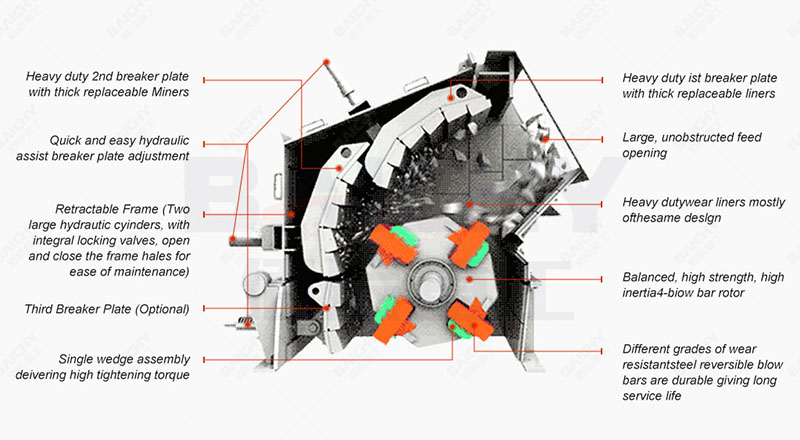

Our flagship impact crusher is engineered specifically for the rigors of hard, abrasive materials like quartz and granite. It's a robust, heavy-duty machine built for continuous operation in demanding quarry and mining conditions. The crusher features a solid monoblock rotor, large feed opening, and hydraulic adjustment systems for quick and easy changes to the product size.
Key Design Features:
-
Heavy-Duty Rotor: The heart of the crusher, designed for high inertia and durability. It can handle large feed sizes and delivers tremendous impact force.
-
Wear-Resistant Components: Critical wear parts like blow bars and impact plates are manufactured from high-chrome or composite alloys, offering extended service life and reducing downtime for replacements.
-
Hydraulic Assistance: Hydraulic hood opening and adjustment systems make maintenance, inspection, and clearing of blockages safer and faster.
Core Advantages: Performance Meets Affordability
Our crusher stands out by offering a powerful impact that translates directly to a powerful positive impact on your bottom line.
1. Unmatched Crushing Efficiency
The optimized crushing chamber and high rotor speed ensure maximum impact energy is transferred to the material, leading to higher throughput and consistent product quality.
2. Lowest Total Cost of Ownership
While the initial price is highly competitive, the real savings come from operational efficiency. The long-lasting wear parts, easy maintenance design, and high energy efficiency collectively ensure the best price over the entire lifecycle of the machine.
3. Superior Product Quality
Consistently produces cubical, well-graded silica sand that commands a premium in markets for glass sand, foundry sand, and specialty industrial sands.
4. Robust Reliability
Built with oversized bearings, a sturdy frame, and premium components, this crusher is designed for 24/7 operation with minimal unplanned downtime.

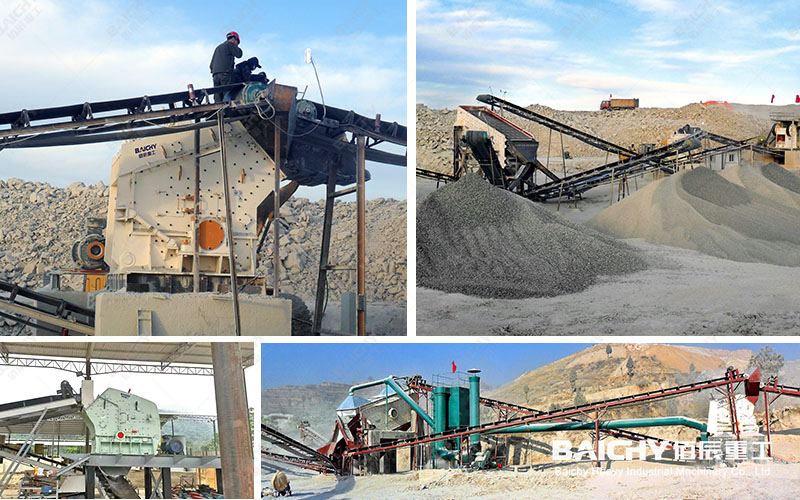

Real-World Application: A Case Study
Customer: A mid-sized silica sand producer in the American Southwest.
Challenge: Needed to upgrade an aging crushing circuit to increase yield of in-spec "frac sand" and reduce the cost per ton. The existing cone crusher was producing too many elongated particles and requiring frequent liner changes.
Our Solution: We recommended and supplied our powerful impact crusher as the tertiary crushing stage.
Results:
-
Productivity Increase: Throughput of in-spec material rose by 18%.
-
Quality Improvement: The percentage of cubical particles increased significantly, exceeding industry standards for frac sand.
-
Cost Reduction: Wear part life extended by over 35% compared to the previous solution, and energy consumption per ton was reduced. The client achieved a full ROI in under 14 months.
Recommended Supporting Equipment
To build a complete, high-yield silica sand processing plant, we recommend integrating our impact crusher with the following equipment:
-
Primary Jaw Crusher: For initial size reduction of raw feed.
-
Vibrating Feeder & Screen: To ensure consistent feed and precise sizing.
-
Sand Washing and Classification System: For removing impurities and achieving precise gradation.
-
Fine Material Washer/Dehydrator: To produce dry, market-ready sand.

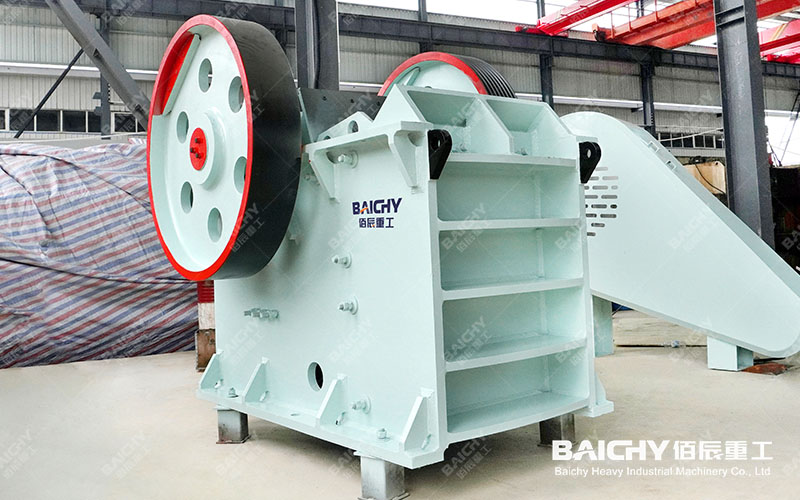

Jaw Crusher
Vibrating Feeder

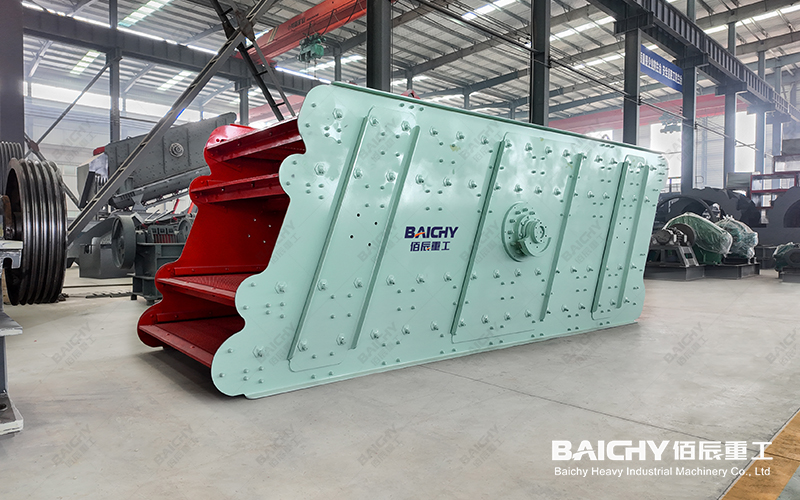

Vibrating Screen
Frequently Asked Questions (FAQ)
1. What is the maximum feed size for this impact crusher?
The maximum feed size depends on the specific model. Our range can typically handle feed sizes up to 500-800mm, but the optimal size for producing high-quality sand is often below 250mm. We provide detailed specifications for each model to help you plan your circuit.
2. How do you ensure the wear parts last long with abrasive silica sand?
We use advanced metallurgy. Our blow bars and impact plates are made from premium alloys like high-chrome iron or ceramic composites, specifically formulated to resist abrasion. Furthermore, the crusher's design allows the rotor and blow bars to be fully reversible, effectively doubling their service life.
3. Can this crusher produce different sizes of sand for various applications?
Absolutely. The product size is easily adjustable. By changing the rotor speed, the gap between the blow bars and impact aprons, and selecting different configurations of the grinding path, you can produce everything from coarse grit to fine sand suitable for multiple industrial uses.
