How To Design An Efficient And Stable 100 Tph Granite Crushing Line?

In the field of mining machinery, granite crushing has long been considered a technical challenge. Its Mohs hardness reaches 6-7, with some varieties with high quartz content even approaching 9. This places extremely high demands on the wear resistance and power efficiency of the crushing equipment. Designing a 100-ton-per-hour (TPH) granite crushing line requires not only scientific equipment configuration but also a comprehensive consideration of material properties, process flow, and operation and maintenance costs.

I. Core Difficulties and Solutions in Granite Crushing

1. High Hardness and High Abrasiveness

Granite is primarily composed of quartz and feldspar. Quartz has a Mohs hardness of 7, while feldspar has a hardness between 6 and 6.5. Traditional low- to medium-hardness crushing solutions (such as impact crushers) are prone to rapid hammer wear and a sudden drop in production capacity in this scenario.

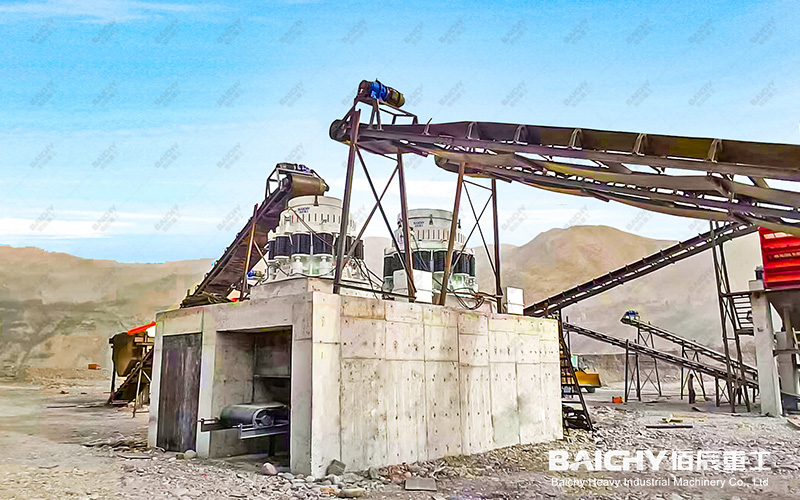

Solution: A dedicated hard rock combination of a "jaw crusher + cone crusher" is employed. The jaw crusher performs primary coarse crushing, while the cone crusher handles secondary and fine crushing. Both operate using the laminated crushing principle, resulting in a longer life for wear-resistant parts.

2. Pin-shaped Particle Control

Granite crushing is prone to producing pin-shaped particles, which affects aggregate quality and selling price.

Solution: Add a shaping machine (such as a vertical shaft impact crusher) after the cone crusher. This optimizes particle shape through a "rock-on-rock" or "rock-on-iron" process, resulting in a cubic finished product that meets high-standard building material requirements.

II. Core Equipment Selection: Why the PE-750×1060 Jaw Crusher?

The PE-750×1060 jaw crushermentioned in the title is the key equipment for this production line. Its selection logic is as follows:

1. Feed and Discharge Compatibility

• The feed opening dimensions are 750×1060mm, with a maximum feed size of 630mm, which can accommodate typical blasting material from granite mines (typically ≤600mm).

• The discharge opening has an adjustable range of 80-140mm, matching the feed requirements of the downstream cone crusher (typically ≤200mm).

2. Capacity and Power Design

• This model has a rated power of 90-110 kW and a processing capacity of 100-250 TPH (depending on the discharge opening size and material characteristics), easily meeting the 100 TPH baseline requirement with margin.

• The high-chromium alloy movable and fixed jaw plates offer a compressive strength of up to 320 MPa, optimized for highly abrasive ores.

3. Balanced Economy and Stability

• Compared to the larger PE-900×1200, the 750×1060 offers advantages in terms of investment cost, power consumption, and footprint. It also simplifies maintenance and is suitable for small and medium-sized granite quarries.

III. Recommended Complete Configuration for a 100 TPH Production Line

IV. Unique Perspective: Controlling "Over-Crushing Rate" in Hard Rock Crushing

Conventional solutions often focus solely on capacity and wear resistance, overlooking a hidden cost: over-crushing rate. This occurs when material is repeatedly crushed, resulting in excessive fines (0-5mm), which leads to value loss (fines have the lowest unit price among aggregates).

Optimization Strategies:

1. Create a semi-closed circuit between the cone crusher and vibrating screen, returning only unqualified large particles to the cone crusher rather than sending all of them to the next stage.

2. Use pre-screening equipment (such as a grizzly screen or roller screen) to separate naturally fine material before the jaw crusher, reducing inefficient processing.

3. Adjust the cone crusher's eccentricity and speed to reduce the proportion of impact crushing by "crushing instead of grinding," thereby controlling fines generation at the source. V. Operation and Maintenance Cost Analysis: The Invisible 85% of Expenses

Equipment procurement costs only account for 15% of the lifecycle cost, while power consumption, replacement of wearing parts, and downtime losses are the major contributors:

• Electricity costs account for approximately 40%: We recommend using high-voltage motors (e.g., 10kV instead of 380V) to reduce line losses and configuring a frequency converter to control no-load energy consumption.

• Wear-resistant parts account for 30%: Choosing a jaw crusher with a manganese steel + tungsten carbide composite liner can extend its lifespan by 2-3 times.

• Downtime losses account for 15%: Using a dual-unit redundant design (e.g., a backup jaw crusher) can achieve an annual operating rate exceeding 90%.

A 100TPH granite crushing line is more than a simple stack of equipment. From selecting the PE-750×1060 to meticulously controlling the over-reduction rate, optimizing electricity costs, and managing the lifecycle of wear parts, every detail determines the project's profit and loss margin. Only by combining engineering expertise with operational thinking can we transform the hardness of granite into a sustainable source of profit.
