In the competitive world of aggregate production, efficiency, reliability, and final product quality are paramount. For large-scale projects requiring consistent, high-volume output of high-quality aggregates, a well-designed 300TPH granite stone crusher plant stands as the optimal solution. This blog provides a comprehensive analysis of such a plant, exploring its configuration, advantages, and its critical role in modern mining and construction operations.
What is a 300TPH Granite Crusher Plant?
A 300TPH (Tonnes Per Hour) granite crusher plant is a stationary or semi-mobile crushing and screening system engineered specifically to process hard, abrasive granite rock. Its primary function is to reduce large granite boulders, blasted from a quarry face, into various sizes of crushed stone, such as aggregates for concrete, asphalt, road base, and railway ballast. The "300TPH" designation indicates the plant's designed processing capacity, making it suitable for medium to large quarries and major infrastructure projects.
Core Components and Workflow Overview

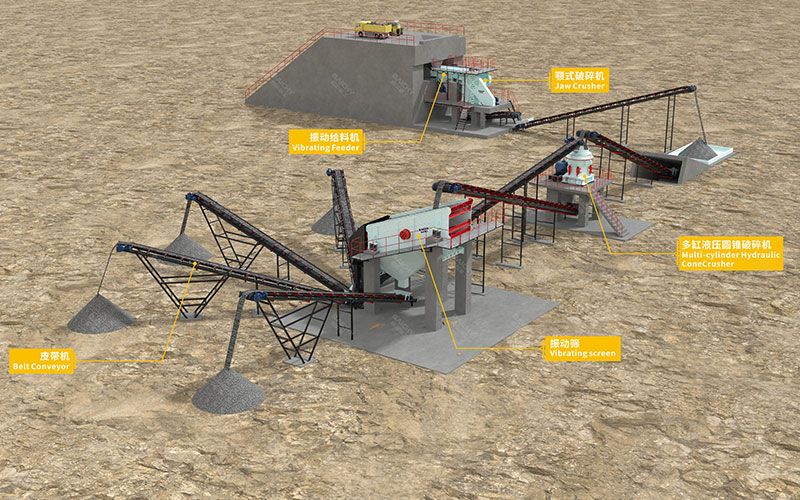

A successful 300TPH plant is more than just a collection of machines; it's a synchronized system. Here’s a breakdown of a typical three-stage crushing circuit:
Primary Crushing Stage

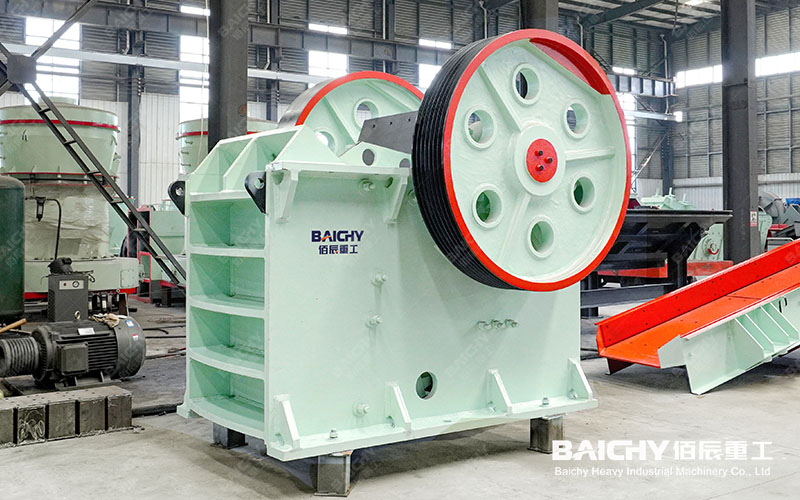

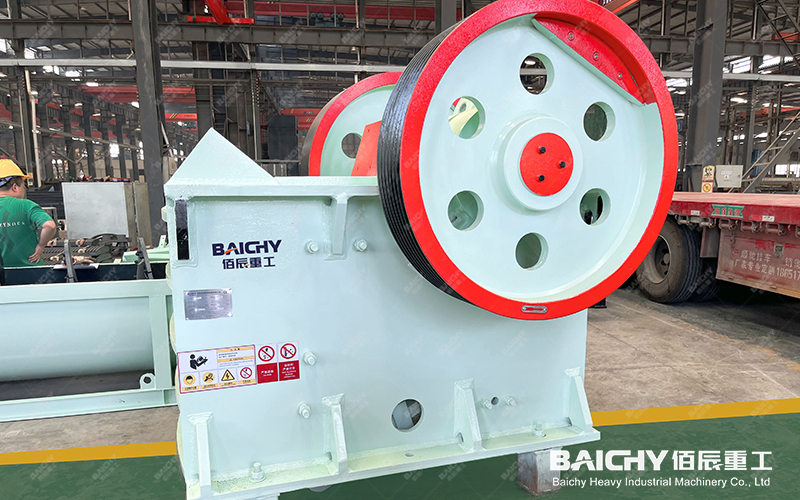

The process begins with the Primary Jaw Crusher. This robust machine receives the raw, large-sized granite (up to 1000mm) directly from the quarry. Its powerful compressive force breaks the rock down to a manageable size of about 150-250mm. A vibrating grizzly feeder is used upstream to separate fine material and direct the larger rocks into the jaw crusher efficiently.
Secondary and Tertiary Crushing Stages
The crushed material from the primary stage is then conveyed to the Secondary Cone Crusher. This stage further reduces the granite size and begins to shape the particles. For producing finer, high-quality aggregates like manufactured sand or chip seal, a Tertiary Impact Crusher or Vertical Shaft Impactor (VSI) is often employed. The VSI is renowned for its excellent particle shape cubicity.

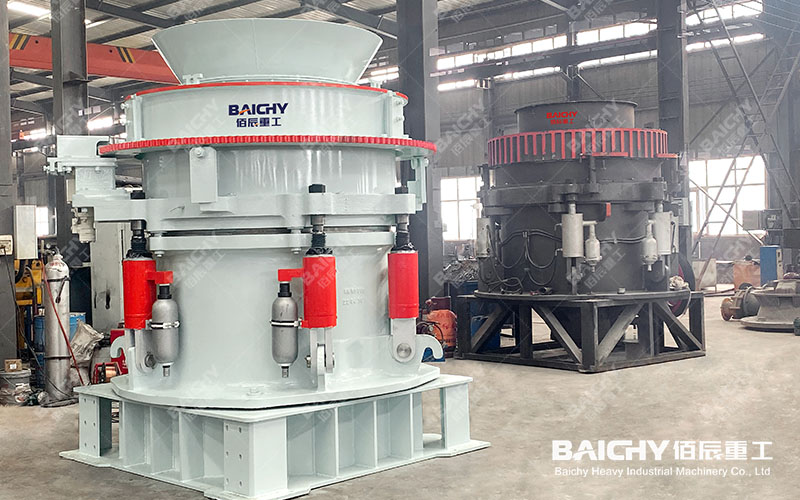

Hydraulic Cone Crusher

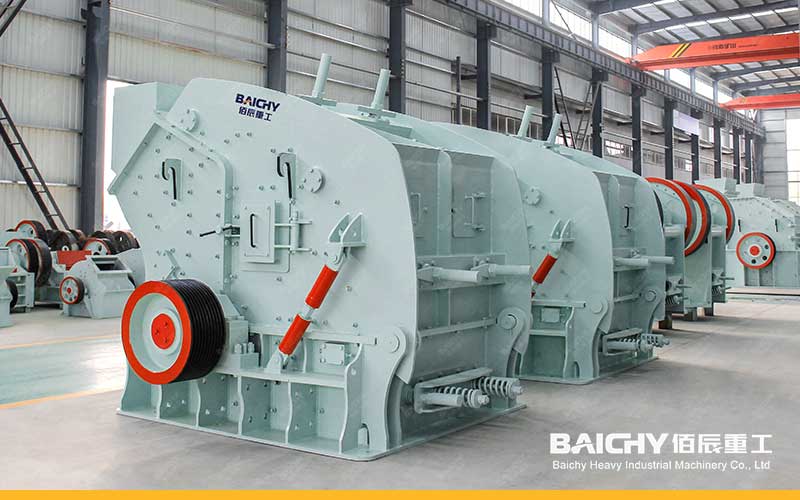

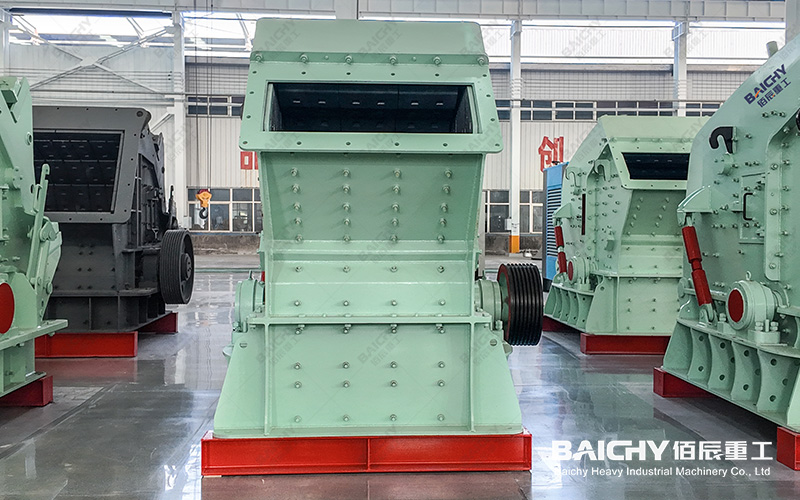

Impact Crusher

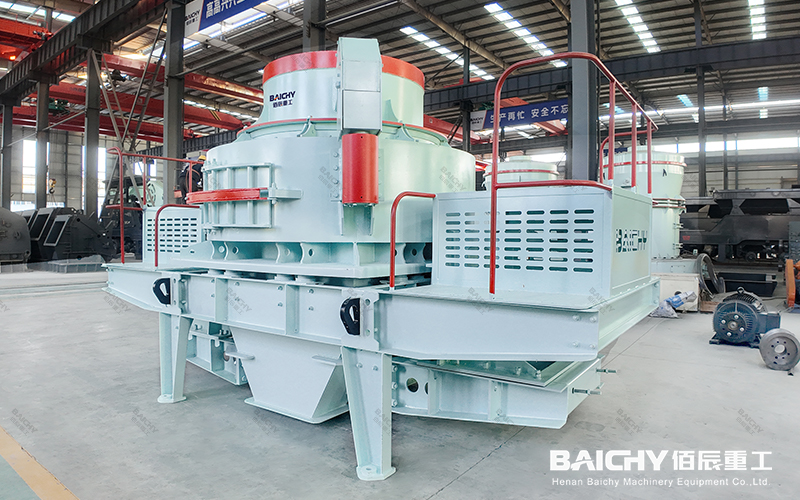

Vertical Shaft Impact Crusher
Screening and Conveying System

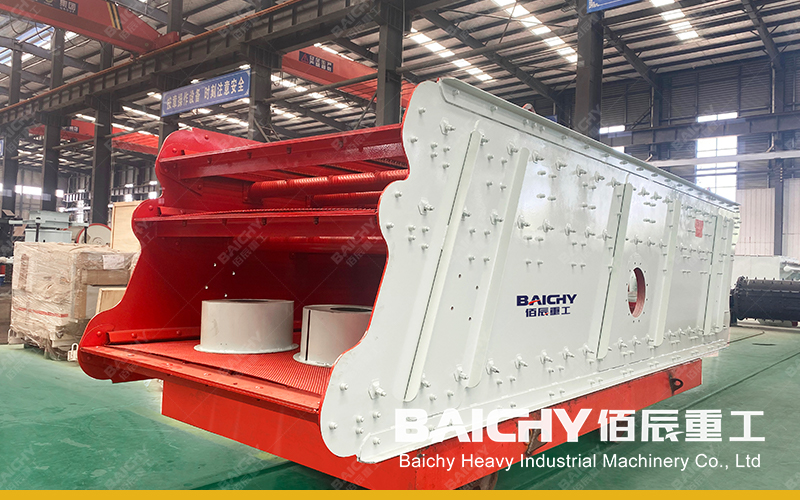

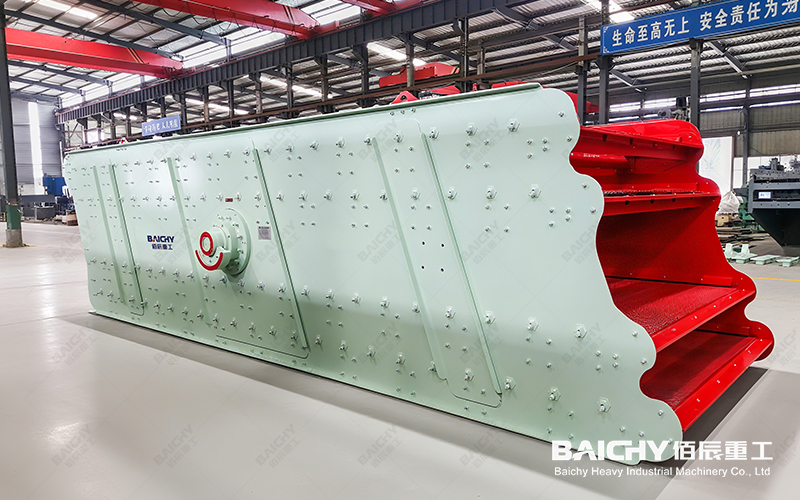

Integral to the entire operation is the Vibrating Screen. It classifies the crushed material into different product sizes (e.g., 0-5mm, 5-10mm, 10-20mm). Oversized material is recirculated back to the appropriate crusher for further reduction. A network of belt conveyors acts as the plant's circulatory system, seamlessly transporting material between each stage.
Key Advantages of a Well-Designed 300TPH Plant
Investing in a properly configured 300TPH granite crushing plant offers significant benefits:
-
High Efficiency & Stable Output: Achieves the target production volume consistently, ensuring a reliable supply to meet project deadlines and market demand.
-
Superior Product Quality: Multi-stage crushing, especially with a VSI in the tertiary stage, produces well-shaped, cubic aggregates that are highly valued in high-spec concrete and asphalt mixes.
-
Reduced Operational Costs: Optimized workflow and robust equipment design minimize energy consumption per ton and lower long-term maintenance costs through higher component durability.
-
Automation & Ease of Control: Modern plants incorporate advanced control systems, allowing for remote monitoring, quick adjustments, and optimized performance with minimal manual intervention.
-
Strong Return on Investment (ROI): The combination of high throughput, premium product quality, and low operating costs leads to a fast payback period and excellent long-term profitability.

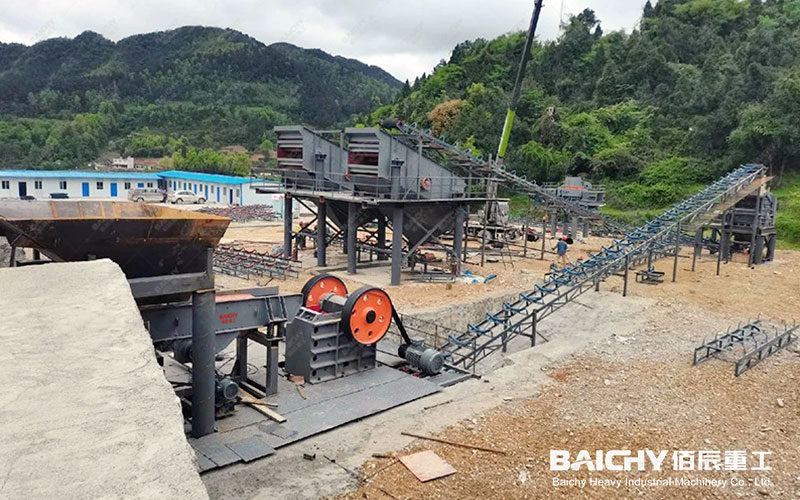

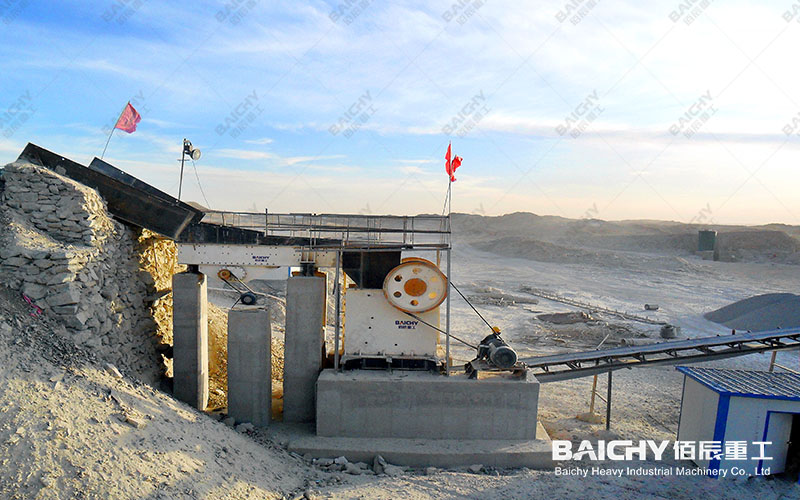

Project Case Study: Granite Quarry in Southeast Asia
Client: A leading construction material supplier.
Challenge: Needed to upgrade their aging 200TPH line to 300TPH to fulfill a major highway construction contract, with strict requirements on aggregate shape and gradation.
Our Solution: We designed and supplied a complete plant featuring a heavy-duty jaw crusher, a multi-cylinder hydraulic cone crusher for secondary crushing, and a high-efficiency VSI for tertiary shaping. The system included a three-deck vibrating screen and central electronic control station.
Results: The plant successfully achieved a steady output of 310TPH. The product shape index exceeded the client's expectations, leading to premium pricing for their aggregates. Plant availability has been consistently above 94%, ensuring uninterrupted supply.
Recommended Equipment Configuration
For a balanced and reliable 300TPH granite crushing plant, we typically recommend:
-
Feeder: ZSW490×110 Vibrating Grizzly Feeder
-
Primary Crusher: PE750×1060 Jaw Crusher
-
Secondary Crusher: HPT300 Multi-cylinder Hydraulic Cone Crusher
-
Tertiary Crusherher: VSI1145 Impact Crusher (for shaping) or another Cone Crusher
-
Screens: 3 sets of 3YK2460 Vibrating Screens
-
Conveyors: Customized belt conveyor system (B1000, B800)
Frequently Asked Questions (FAQ)
Q1: What is the estimated investment cost for a complete 300TPH granite crusher plant?
A1: The total cost varies significantly based on equipment brand, level of automation, and ancillary facilities (like electrical system, foundations). A ballpark range is typically between $1.5 million to $2.5 million. A detailed quotation requires a site survey and specific product list.
Q2: Can this plant be made mobile or semi-mobile?
A2: Absolutely. While fixed plants are common for permanent quarries, a 300TPH capacity can be achieved with a semi-mobile setup using trailer-mounted crushers and screens, or with a multi-combination mobile crushing station, offering greater flexibility for contract crushing at multiple sites.
Q3: How do you ensure the final product shape is suitable for high-grade concrete?
A3: The key is the tertiary crushing stage. Employing a Vertical Shaft Impactor (VSI) is the most effective method. The "rock-on-rock" or "rock-on-iron" crushing principle in a VSI produces optimally shaped, cubical particles with a smooth surface texture, which is ideal for enhancing concrete strength and workability.
