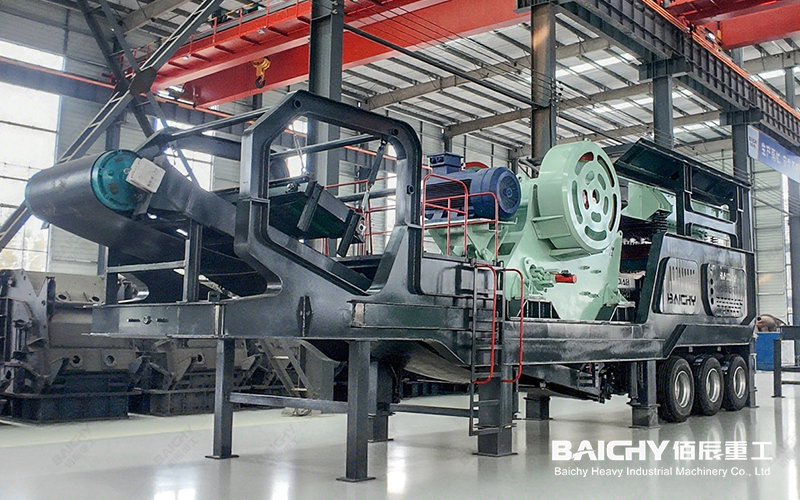

Mobile Jaw Crushing Plant
A Mobile Crushing Station—also referred to as a mobile crusher or mobile crushing plant—is a modern piece of mining machinery that integrates various processing equipment, including material receiving, crushing, screening, and conveying systems, into a single unit. Compared to traditional stationary crushing production lines, its most defining characteristic is its "mobility." Typically mounted on wheeled or crawler-type chassis, it can move freely between sites much like a motor vehicle.
Baichy E-Catalog PDF，Download ↓↓↓
The following is an in-depth analysis of the core advantages and industry applications of mobile crushing stations:
I. Detailed Analysis of Core Advantages
The reason mobile crushing stations have gained such immense popularity in recent years is primarily due to their ability to overcome the spatial and cost constraints inherent in traditional stationary production lines.
1. Exceptional Mobility and Flexibility (Key Selling Point)
On-Site Operation: The equipment can be driven directly to the raw material extraction site or demolition site, realizing the principle: "Wherever the material is, that is where the crushing takes place."
Rapid Relocation: Utilizing wheeled or crawler chassis, the units require no complex steel-structure foundations for installation; once a construction phase is complete, they can be quickly withdrawn and deployed to the next project.
2. Significant Reduction in Transport Costs
Elimination of Secondary Transport: Traditional stationary production lines require large trucks to haul raw materials to a processing facility, whereas mobile stations enable on-site processing. This not only saves substantial fuel and labor costs but also reduces dust pollution generated during the transportation process.
3. Short Deployment Cycles and Rapid Return on Investment
No Foundation Construction Required: There is no need for excavation or concrete pouring, thereby bypassing the lengthy approval processes and construction phases typically associated with fixed infrastructure projects.
Immediate Production: Once the equipment arrives on-site, it requires only simple commissioning to enter full production mode, making it particularly well-suited for projects with tight deadlines.
4. Strong Environmental Adaptability
Terrain Versatility: Crawler-mounted mobile stations are capable of navigating even steep mining terrains or muddy construction sites.
Modular Configuration: Depending on the hardness of the material (e.g., granite, construction waste), the system can be flexibly configured with jaw crushers, impact crushers, or cone crushers to facilitate multi-machine collaborative operations.
5. Environmental Protection and Energy Efficiency
Integrated Configuration: Modern mobile stations are typically equipped with noise-reduction devices and spray dust suppression systems. This makes the control of noise and dust emissions easier, ensuring compliance with the stringent environmental regulations of urban areas.
II. Detailed Industry Applications
The application scope of mobile crushing stations spans multiple sectors, ranging from urban construction to remote mining operations:
1. Construction Waste Recycling (Most Popular Application)
In urban demolition projects, mobile crushing stations serve as the core tool for processing concrete blocks, broken bricks, and tiles.

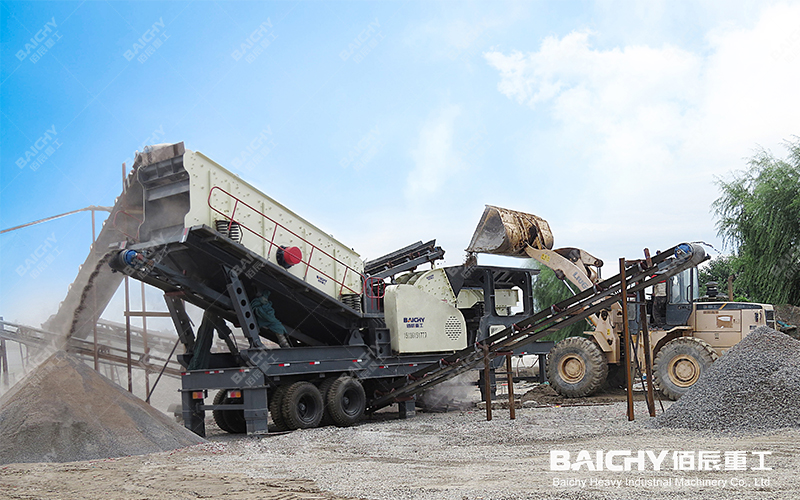

Construction Waste Crushing Station
Application: Construction waste is crushed and screened directly at the demolition site, transforming it into recycled aggregates (used for road paving or manufacturing non-fired bricks).
Value: This addresses the issue of "waste-encircled cities" and facilitates the recycling and reuse of resources.
2. Open-Pit Mining and Quarries

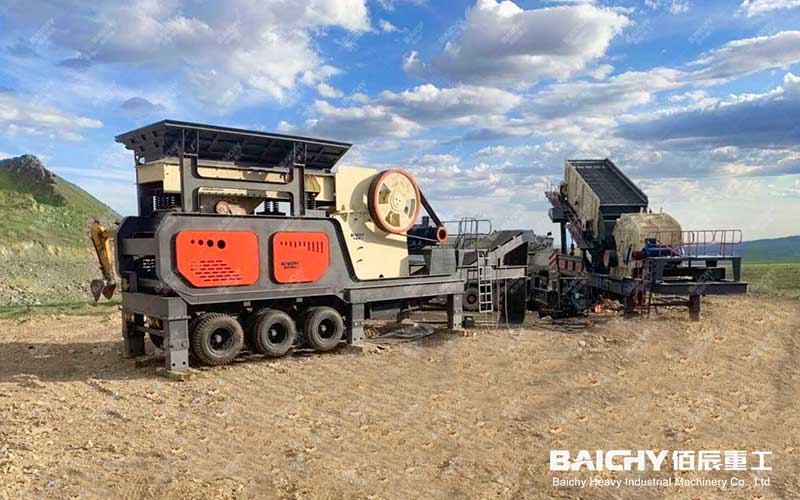

Stone Quarry Mobile Crushing Station
Application: As the mining face (working face) continuously advances, the mobile station can move right alongside it, thereby minimizing the distance between the raw ore and the crushing equipment.
Value: This significantly boosts operational efficiency in mines involved in processing medium-hardness stones such as granite, basalt, and limestone.
3. Infrastructure Construction (Highways, Railways, Airports)
Application: The construction of highways and high-speed railways often requires vast quantities of sand and gravel aggregates. Mobile stations can advance in tandem with the road construction progress, processing the rock materials excavated from the roadbed directly on-site.
Value: This ensures an immediate and steady supply of aggregates while simultaneously preventing road surface damage caused by long-distance transportation.
4. Water Conservancy and Hydropower Projects
Application: In the construction of dams within remote mountainous regions—where complex terrain makes the setup of fixed production lines difficult—mobile stations can overcome topographical obstacles to provide the sand and gravel aggregates required for construction.
5. Landscaping and Earthworks
Application: Processing waste generated from landscaping maintenance, separating rock materials during earthworks excavation, and processing stone materials dredged from rivers, lakes, and reservoirs.
III. Summary: How to Choose?
• Wheel-mounted Mobile Stations: Ideal for urban construction waste processing or road engineering projects involving level sites and frequent site transfers.
• Crawler-mounted Mobile Stations: Ideal for open-pit mines or collapsible soil terrains characterized by rugged topography and harsh operating environments.
Key Conclusion: A mobile crushing station is not merely a piece of machinery; it represents a "distributed, high-efficiency, and low-cost" production model. For projects with tight deadlines, shifting work sites, and sensitivity to transportation costs, the mobile crushing station currently stands as the optimal solution.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
https://wa.me/+8615093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
Frequently Asked Questions (FAQ)
Q1: Are mobile crushing stations more expensive than fixed crushing production lines? How is their cost-effectiveness demonstrated?
A: Although the initial purchase cost of a single mobile crushing unit is typically higher than that of fixed equipment with equivalent output capacity, its overall operational cost-effectiveness is exceptionally high. It eliminates substantial infrastructure construction costs (such as concrete pouring and steel structure erection) as well as the lengthy time required for permit approvals. Most importantly, the savings generated by eliminating secondary material transport—achieved through "on-site crushing"—can typically offset the price difference of the equipment within 6 to 12 months.
Q2: How should one choose between wheel-mounted and crawler-mounted mobile crushing stations?
A: The choice primarily depends on the operating environment. Wheel-mounted units are towed by a tractor head and are suitable for urban construction waste processing or highway construction projects where sites are relatively level and frequent relocation is required. Crawler-mounted units feature a fully hydraulic drive system with self-contained power; possessing strong climbing capabilities, they are better suited for open-pit mines with complex terrain, earthworks projects, and collapsible soil environments with extremely poor road conditions.
Q3: What types of materials can a mobile crushing station process? Can the specifications of the finished products be adjusted?
A: The processing range is extremely broad, encompassing hard rocks (such as granite and basalt), medium-hard stones (such as limestone and river pebbles), and construction waste. The equipment integrates highly efficient internal crushing and screening systems, allowing users to flexibly produce finished sand and aggregate products of various specifications—such as 0–5mm, 5–10mm, and 10–20mm—by simply changing the screen mesh size or adjusting the crusher's discharge opening.
