Portable Jaw Crusher Plant

Share
  • ≤680mm

    Feed Size

  • --

    Motor Power

  • 40-320t/h

    Capacity

Product Overview


Portable jaw crushing plant is a modular crushing equipment that integrates jaw crusher, power system, feeding equipment, conveying system and mobile chassis.

Portable jaw crushing plant is designed for scenes that require frequent transfer or complex terrain operations. The equipment has passed the German CE certification (EN ISO 21873 standard) and EU Stage V emission certification, and can adapt to ambient temperatures of -25℃ to 50℃, becoming an efficient solution in the field of modern engineering.




Portable Jaw Crusher Plant
If you have any questions,you can ask customer service online !
leave message
Portable jaw crushing plants has become the preferred equipment in modern mining and construction industries due to its high efficiency, flexibility and intelligence. Choosing the right manufacturer and model can greatly improve production efficiency and reduce operating costs.

Mobile jaw crushing plants is an intelligent crushing equipment that integrates feeding, crushing, screening and conveying. It uses jaw crusher as the core crushing device and is equipped with crawler or tire chassis, which can be moved freely in different work sites.

Main Types Of Portable Jaw Crushing Plants

1. Crawler Portable Jaw Crushing Plants

• Applicable scenarios: complex terrains such as mines, quarries, and construction waste treatment.
• Features: Full hydraulic drive, strong climbing ability, and adaptable to harsh environments.

2. Tire Portable Jaw Crushing Plants

• Applicable scenarios: urban construction waste crushing, short-distance transfer operations.
• Features: traction-type mobile, convenient transportation, and higher economy.

Selection suggestions:

1. If the work site is complex and needs to be moved frequently, choose a crawler type;

2. If the budget is limited and the site is relatively flat, choose a tire type.

Portable jaw crushing plantsPortable cone crushing plantstire mobile crushing station

Working Principle
Portable Jaw Crusher Plant

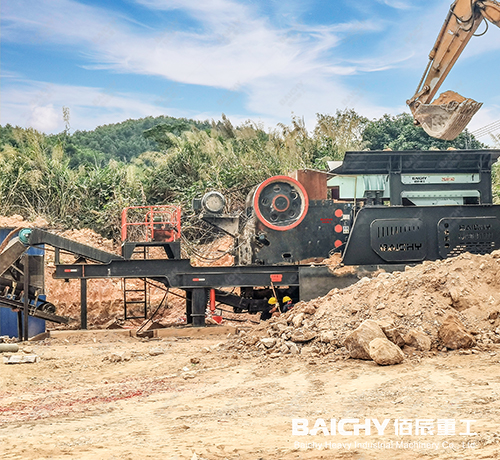

Mobile jaw crusher station crushing limestone in quarry.jpg

Application fields of portable jaw crushing plant


• Mining stone crushing: Crushing of hard rocks such as granite, basalt, limestone, etc.
• Construction waste recycling: Recycling of concrete, bricks, steel bars, etc.
• Highway and railway construction: Aggregate production to meet high-standard engineering needs.
• Sand and gravel aggregate production: Integrated crushing and screening to improve production efficiency.


Case sharing:

A large quarry uses Baichy Heavy Industry's portable jaw crushing station, with a daily processing capacity of 2,000 tons, a 30% increase in crushing efficiency, and a 20% reduction in operating costs!


How to choose a high-quality portable jaw crushing plant?

1. Look at the manufacturer's strength: Choose a brand with many years of production experience and mature technology.
2. Look at the equipment configuration: Pay attention to key parameters such as motor power, crushing ratio, and feed size.
3. Look at after-sales service: Whether installation and commissioning, accessories supply, and maintenance support are provided.

Specification

*The output will vary according to different materials, feed particle size and other factors
Model YDPZ57-8530 YDPZ80-8530 YDPZ69-9638 YDPZ96-9638 YDPZ75-1142 YDPZ106-1142 YDPZ116-1242
Vibrating Feeder ZSW8530 ZSW8530 ZSW9638 ZSW9638 ZSW1142 ZSW1142 ZSW1242 ZSW1242
Jaw Crusher PE500x750 C80 PE600x900 CJ96 PE750x1060 CJ106 CJ116 CJ116
Feeding Size(mm) ≤425 ≤400 ≤500 ≤480 ≤630 ≤580 ≤680 ≤680
Capacity(t/h) 40-130 50-160 90-180 60-160 110-380 150-300 200-400 200-400
Power(kw) 45 55 55 75 110 110 160 160
Belt Conveyor B650 B650 B800 B800 B1000 B1000 B1000 B1000
Overall Size(mm) 10000x2300x4020 10000x2300x4020 11500x2300x4120 11600x2250x3710 12500x2550x4570 11600x2250x3710 13000x2550x4150 13000x2550x4150
Model YDPZ1210-1548 YDPZ900-1548 YDPZ1214-1860 YDPZ160-1860 YDPZ1315-2160 YDPZ300-2160 YDPZ1320-2460 YDPZ400-2460
Crusher PF1210 PYB900 PFW1210 CS160 PFW1315 HP300 PFW1320 HP400
Feeding Size(mm) ≤400 ≤115 ≤430 ≤205 ≤500 ≤210 ≤500 ≤250
Capacity(t/h) 70-130 15-90 100-180 109-349 130-220 110-380 160-350 180-560
Power(kw) 90 55 132 160 200 220 250 280
Vibrating Screen 3YK1548 3YK1548 3YK1860 3YK1860 3YK2160 3YK2160 3YK2460 3YK2460
Belt Conveyor B650 B650 B800 B800 B1000 B1000 B1000 B1000
Capacity(t/h) 40-100 60-100 80-150 80-150 130-250 130-250 200-280 240-320
Overall Size(mm) 12500x2500x5600 12500x2500x5600 14500x2890x6600 14500x2890x6600 15500x2960x6850 15500x2960x6850 14500x2980x7170 16500x2960x7170
