Mobile Crushing

Share
  • ≤680mm

    Feed Size

  • --

    Motor Power

  • 40-320t/h

    Capacity

Product Overview


Mobile crushers use different types of crushing technologies (such as jaw, impact, cone, and hammer) to gradually crush large pieces of material into small particles of the required size. Its core components include the feed port, crushing chamber, discharge port, and power system. After the material enters from the feed port, it is crushed by the high-speed rotating or extruding crushing components and finally discharged through the discharge port.

gravel-crushing-(Coarse-crushing,-Medium-crushing,-Fine-crus
Mobile Crushing
If you have any questions,you can ask customer service online !
leave message

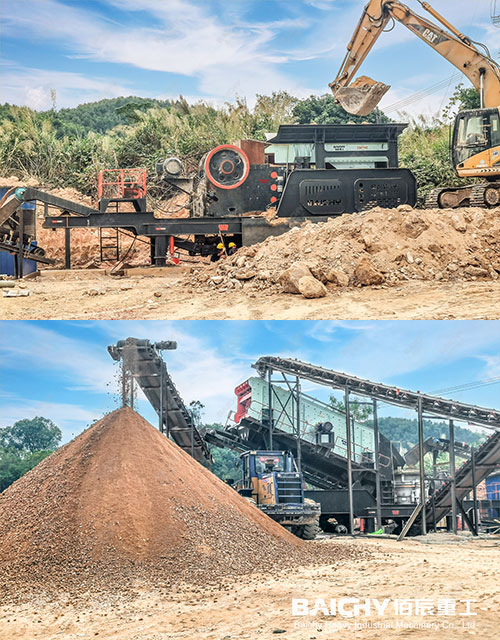

What is a mobile crushing station? ​​

A mobile crushing station is a modular crushing equipment that integrates feeding, crushing, conveying and screening. It does not need to be fixed and installed, and can be directly driven to the work site and put into production quickly.

Compared with traditional fixed crushers, it has the following advantages:

1. Flexible transfer: crawler/tire drive, adapt to complex terrain (such as demolition sites, mountain mines).

2. Reduce costs: reduce material transportation costs, and crush and process directly on site.

3. Environmental protection and energy saving: The closed design reduces dust and noise, and meets environmental protection requirements.

Applicable scenarios: recycling of construction waste, river pebble/granite crushing, mining, road construction, etc.


Core types of mobile crushing stations

According to the drive mode and structure, it is mainly divided into two categories:

1. Crawler mobile crushing station

• Advantages: fully hydraulically driven, strong climbing ability, suitable for rugged sites.

• Recommended models: jaw crusher mobile station (coarse crushing), impact crusher mobile station (medium and fine crushing).

​​2. Tire-type mobile crushing station​​

• ​​Advantages​​: Semi-trailer traction, faster transfer speed, suitable for road transportation.

• ​​Typical configuration​​: Cone crusher + vibrating screen combination, used for high-hardness materials.

​​FAQs​​:

​​How to choose between crawler type and tire type? ​​​​

• Crawler type is suitable for non-hardened roads and long-term operations; tire type is suitable for projects that require frequent site changes.

construction waste treatment equipmentMobile crusherMobile crushing station

Working Principle
Mobile Crushing


Why choose Baichy Heavy Industry's mobile crushing station? ​​​​

• 20 years of technical accumulation​​: Independently developed intelligent control system, the failure rate is 30% lower than the industry average.

• ​One-stop service​​: Free on-site survey → scheme design → installation and commissioning → lifelong maintenance.
• ​​High cost performance​​: Compared with imported brands, the price is 20%-40% lower, and the accessories are supplied in time.


Case reference​​:

• Xinjiang granite mine project​​: Using crawler-type mobile cone crusher, with an output of 200 tons per hour and a cost recovery of 3 months.
• Jiangsu construction waste treatment​​: tire-type impact crusher mobile station, achieving 90% recycled aggregate utilization rate.


FAQs (Frequently Asked Questions)

Q1: What is the price of a mobile crushing station?

Depending on the configuration, small equipment costs about 300,000 to 800,000 yuan, and large production lines cost 1 million to 3 million yuan. Installments are available.

Q2: Is it troublesome to repair the equipment?

Modular design allows for quick replacement of key components.

Q3: Can it handle construction waste containing steel bars?

A deironing device can be configured to automatically separate metal impurities such as steel bars.

Specification

*The output will vary according to different materials, feed particle size and other factors
Model YDPZ57-8530 YDPZ80-8530 YDPZ69-9638 YDPZ96-9638 YDPZ75-1142 YDPZ106-1142 YDPZ116-1242
Vibrating Feeder ZSW8530 ZSW8530 ZSW9638 ZSW9638 ZSW1142 ZSW1142 ZSW1242 ZSW1242
Jaw Crusher PE500x750 C80 PE600x900 CJ96 PE750x1060 CJ106 CJ116 CJ116
Feeding Size(mm) ≤425 ≤400 ≤500 ≤480 ≤630 ≤580 ≤680 ≤680
Capacity(t/h) 40-130 50-160 90-180 60-160 110-380 150-300 200-400 200-400
Power(kw) 45 55 55 75 110 110 160 160
Belt Conveyor B650 B650 B800 B800 B1000 B1000 B1000 B1000
Overall Size(mm) 10000x2300x4020 10000x2300x4020 11500x2300x4120 11600x2250x3710 12500x2550x4570 11600x2250x3710 13000x2550x4150 13000x2550x4150
Model YDPZ1210-1548 YDPZ900-1548 YDPZ1214-1860 YDPZ160-1860 YDPZ1315-2160 YDPZ300-2160 YDPZ1320-2460 YDPZ400-2460
Crusher PF1210 PYB900 PFW1210 CS160 PFW1315 HP300 PFW1320 HP400
Feeding Size(mm) ≤400 ≤115 ≤430 ≤205 ≤500 ≤210 ≤500 ≤250
Capacity(t/h) 70-130 15-90 100-180 109-349 130-220 110-380 160-350 180-560
Power(kw) 90 55 132 160 200 220 250 280
Vibrating Screen 3YK1548 3YK1548 3YK1860 3YK1860 3YK2160 3YK2160 3YK2460 3YK2460
Belt Conveyor B650 B650 B800 B800 B1000 B1000 B1000 B1000
Capacity(t/h) 40-100 60-100 80-150 80-150 130-250 130-250 200-280 240-320
Overall Size(mm) 12500x2500x5600 12500x2500x5600 14500x2890x6600 14500x2890x6600 15500x2960x6850 15500x2960x6850 14500x2980x7170 16500x2960x7170
