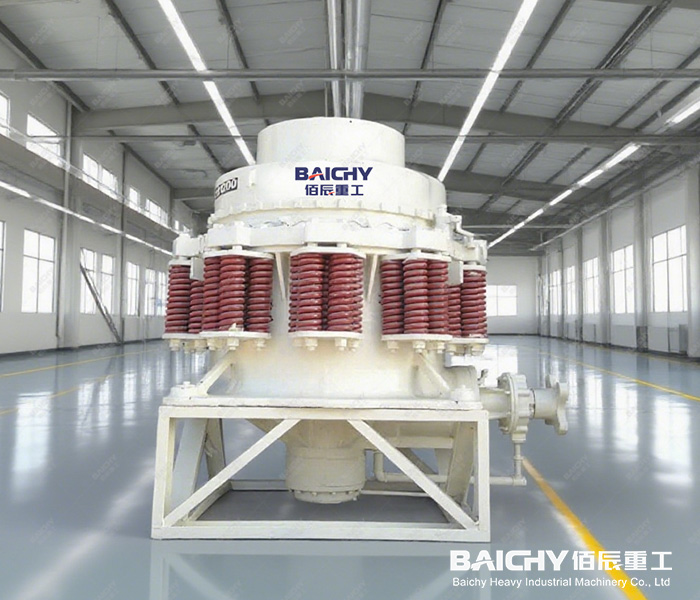

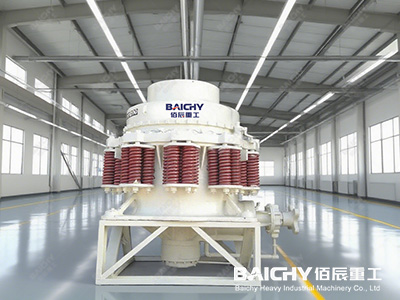

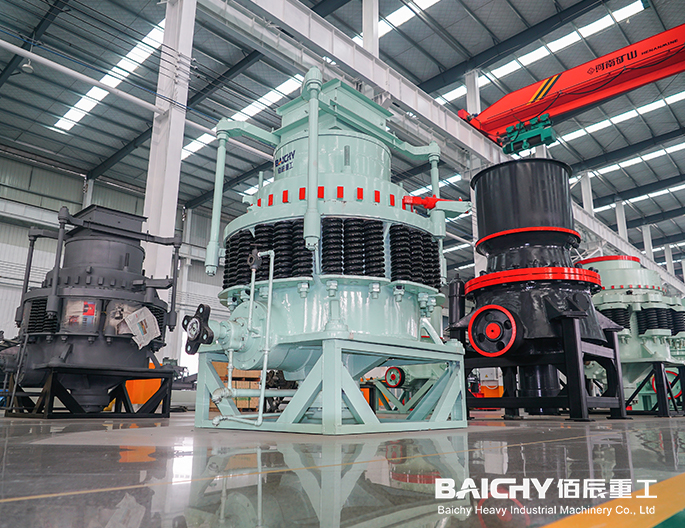

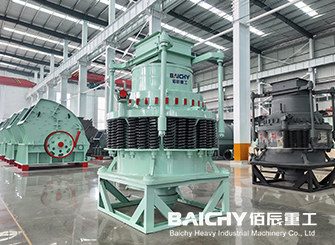

PYB1200 is a spring cone crusher (spring cone crusher), which adopts hydraulic adjustment and overload protection design, and is suitable for crushing medium-hard ores and rocks (such as granite, basalt, iron ore, etc.). Its standard model is PYB1200, and the short head type is PYD1200. Users can choose according to the discharge particle size requirements.
• High processing capacity: 18-200 tons/hour (depending on the hardness of the material and the adjustment of the discharge port).
• Stable and durable: The spring safety device prevents overload damage and extends the life of the equipment.
• Convenient maintenance: The hydraulic cavity clearing system simplifies the fault handling process.
PYB1200 drives the eccentric sleeve to rotate through the motor, driving the moving cone to swing periodically to achieve the extrusion, crushing and discharge of the ore. Its working process can be pided into three steps:
1. Crushing stage: After the material enters the crushing chamber, the moving cone and the fixed cone squeeze to form a crushing force.
2. Discharging stage: The crushed material that meets the particle size requirements falls through the discharge port.
3. Overload protection: When unbreakable objects enter, the spring system automatically releases pressure to protect the main machine.
| Model | PYB-1200 | PYZ-1200 | PYD-1200 |
|---|---|---|---|
| Cone Dia.(mm) | 1200 | 1200 | 1200 |
| Max feeding size (mm) | 145 | 100 | 50 |
| Adjusting Range of Output Size(mm) | 20-50 | 8-25 | 3-15 |
| Capacity(t/h) | 110-200 | 50-150 | 18-105 |
| Motor Power(kw) | 110 | 110 | 110 |
| Overall Dimension(mm) | 4152×2300×2980 | 4152×2300×2980 | 4152×2300×2980 |
| NO. | Product Name | Model | Quantity |
|---|---|---|---|
| 1 | Vibrating Feeder | ZSW9638 | 1 |
| 2 | Jaw Crusher | PE600x900 | 1 |
| 3 | Cone Crusher | PYB1200 | 1 |
| 4 | Vibrating Screen | 4YK2160 | 1 |
| 5 | Sand Making Machine | VSI7611 | 1 |
| 6 | Belt Conveyor | B800 | 2 |
| 6 | Belt Conveyor | B650 | 3 |
| 6 | Belt Conveyor | B500 | 3 |
The output range of the crushing production line that the PYB1200 spring cone crusher can meet is roughly 110~168 t/h. This type of cone crusher is usually used for intermediate crushing or ultra-fine crushing, and the material size processed is below 300mm. The discharging particle size of PYB1200 is between 20 and 50mm, so the appropriate model can be selected according to the fineness of the required materials. Please note that the actual output may be affected by various factors such as material hardness and feed particle size, so it needs to be adjusted and optimized according to specific conditions in actual applications.
For 100-150t/h cone crushing plant, the core equipment is the cone crusher, which can handle materials of various hardnesses, such as limestone, granite, basalt, etc.
When configuring a 100-150t/h cone crushing plant, you also need to pay attention to the following points:
• Equipment selection must be reasonable: select appropriate equipment models and specifications based on material characteristics, production capacity requirements, and other factors.
• Equipment layout should be reasonable: According to the specific layout and process flow of the production line, the installation location and sequence of equipment should be reasonably arranged.
• Equipment maintenance must be timely: perform regular maintenance and upkeep on equipment to ensure stable operation and extend the service life of the equipment.
