150-250tph Sand making production line

Share

 The main equipment of this production line includes a pe750x1060  jaw crusher, a CS220 cone crusher, a 3YK1860 vibrating screen, and a VSI9526 sand-making machine.



Equipment configuration



Hopper, ZSW1100x4200 vibrating feeder, PE750x1060 jaw crusher,HPC300/CS220 cone crusher (or impact crusher), VSI9526 sand making machine, Vibrating screen, Sand recycling machine, Belt conveyor.



Raw materials



Limestone, Granite, Basalt, Quartz, River stone etc.



Feed Size



Less than 630mm



Capacity



150-250t/h



Finished product



Fine sand 0.25-0.35mm, medium sand 0.35-0.5mm, coarse sand 0.5mm



Application



In sand quarry, mine, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries.



Advantages



High production efficiency and low operating cost; Multi-functions and Flexible application; Good shape of finished sand and fineness is adjustable.



Production line related products

If you can't find other products, please contact customer service If you can't find other products, please contact customer service
Heavy Hammer Crusher
Heavy Hammer Crusher

With the features of high efficiency and energy saving, PCZ heavy-duty hammer crusher adopts mature technologies, which can achieve the once-molding crushing effect. Particularly for medium hardness materials and fragile materials, this kind of crusher can achieve a perfect fine-crushing effect. For meeting the different requests of customers, it can adjust the discharge size by adjusting the gap of the grate plate.

Small Jaw Crusher
Small Jaw Crusher

The jaw crusher is the preferred equipment for primary crushing. The output of the small jaw crusher is very small. If you don't need to process a lot of materials, a small jaw crusher can meet the demand. Its hot-selling models are PE200X350, PE250X400, and PE400X600.

Trommel Screen
Trommel Screen

As a widely used screening equipment, the drum screen plays an important role in many fields due to its high efficiency, convenience, and environmental protection. The working principle is to control the sorting of materials based on the particle size.

150-250tph Sand making production line 150-250tph Sand making production line 150-250tph Sand making production line

150-250tph Sand making production line introduction:

• As primary crushing equipment, it can break large stones into particle sizes suitable for further processing.
• PE750x1060 means that its inlet width is 750mm and its length is 1060mm, which is suitable for large-scale sand making production lines.

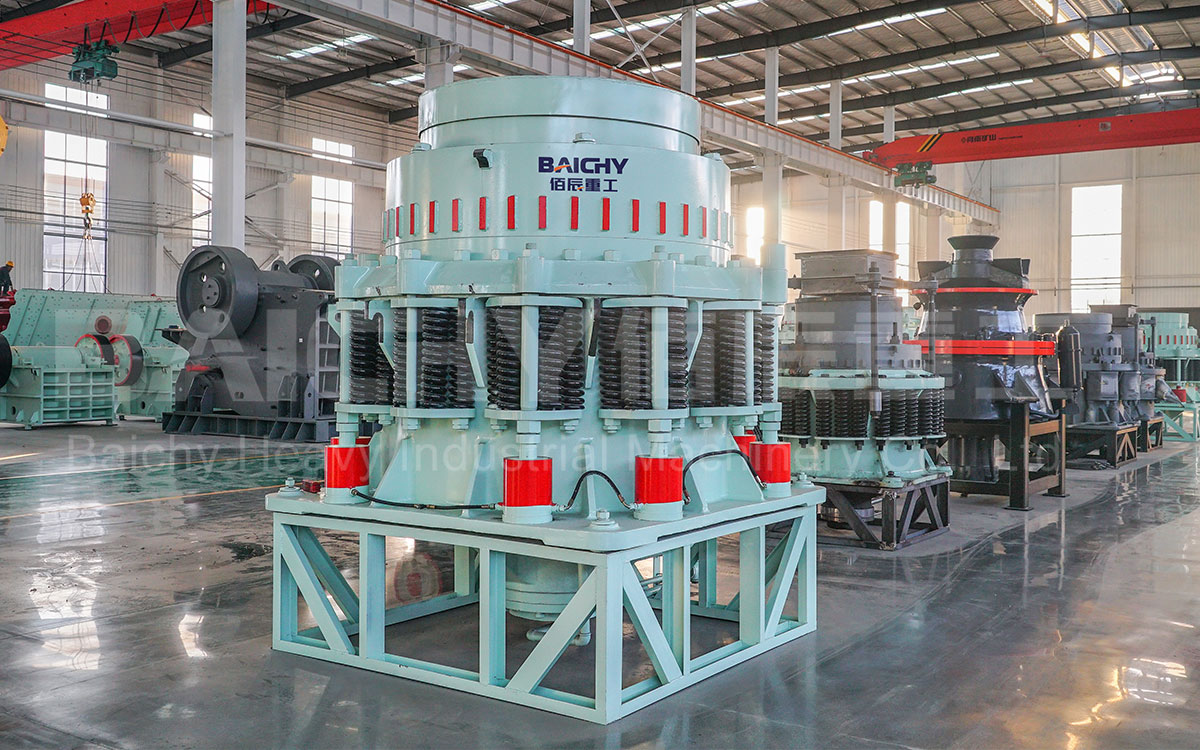

CS220 cone crusher:

• As a secondary crushing equipment, cone crusher is usually used for medium and fine crushing to further improve the crushing efficiency of materials.
• CS220 represents its strong processing capacity and can handle medium to high hardness stones.

3YK1860 vibrating screen:

• The vibrating screen is used to screen the crushed materials and divide the materials into different grades according to their particle size.
• 3YK1860 means that the vibrating screen has three layers of mesh and a size of 1800mm x 6000mm, which is suitable for large-scale screening operations.

VSI9526 sand making machine:

• The sand making machine is the core equipment of the entire production line, responsible for turning the crushed materials into sand that meets the requirements.
• VSI9526 represents its large processing capacity and is suitable for sand making production lines with high output requirements.
